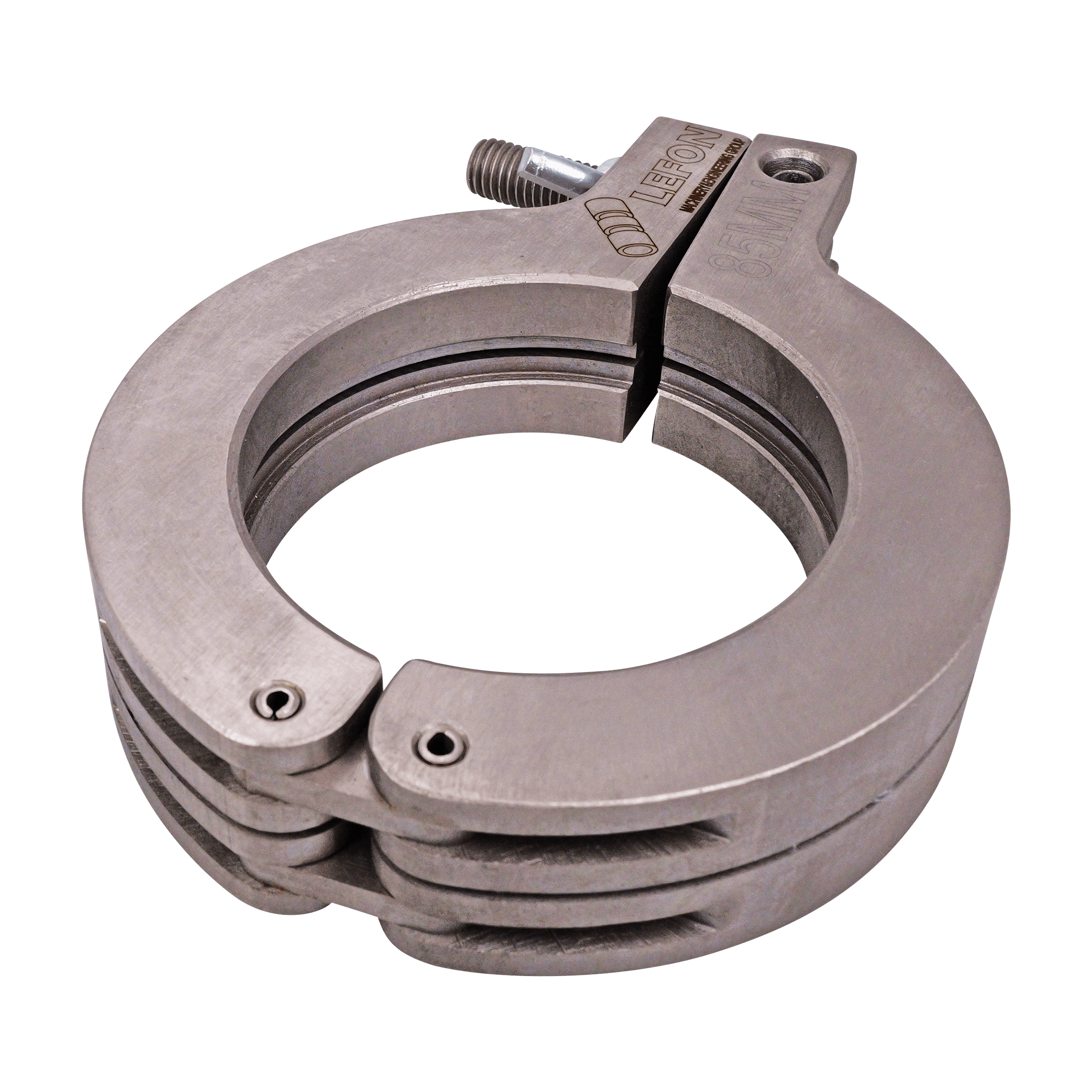

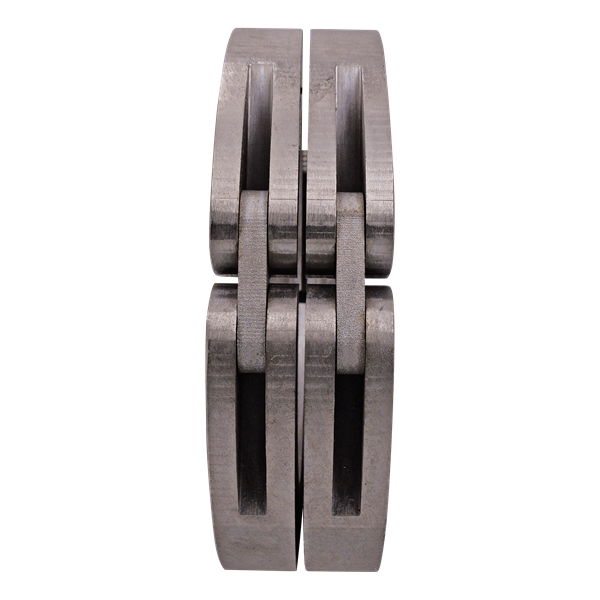

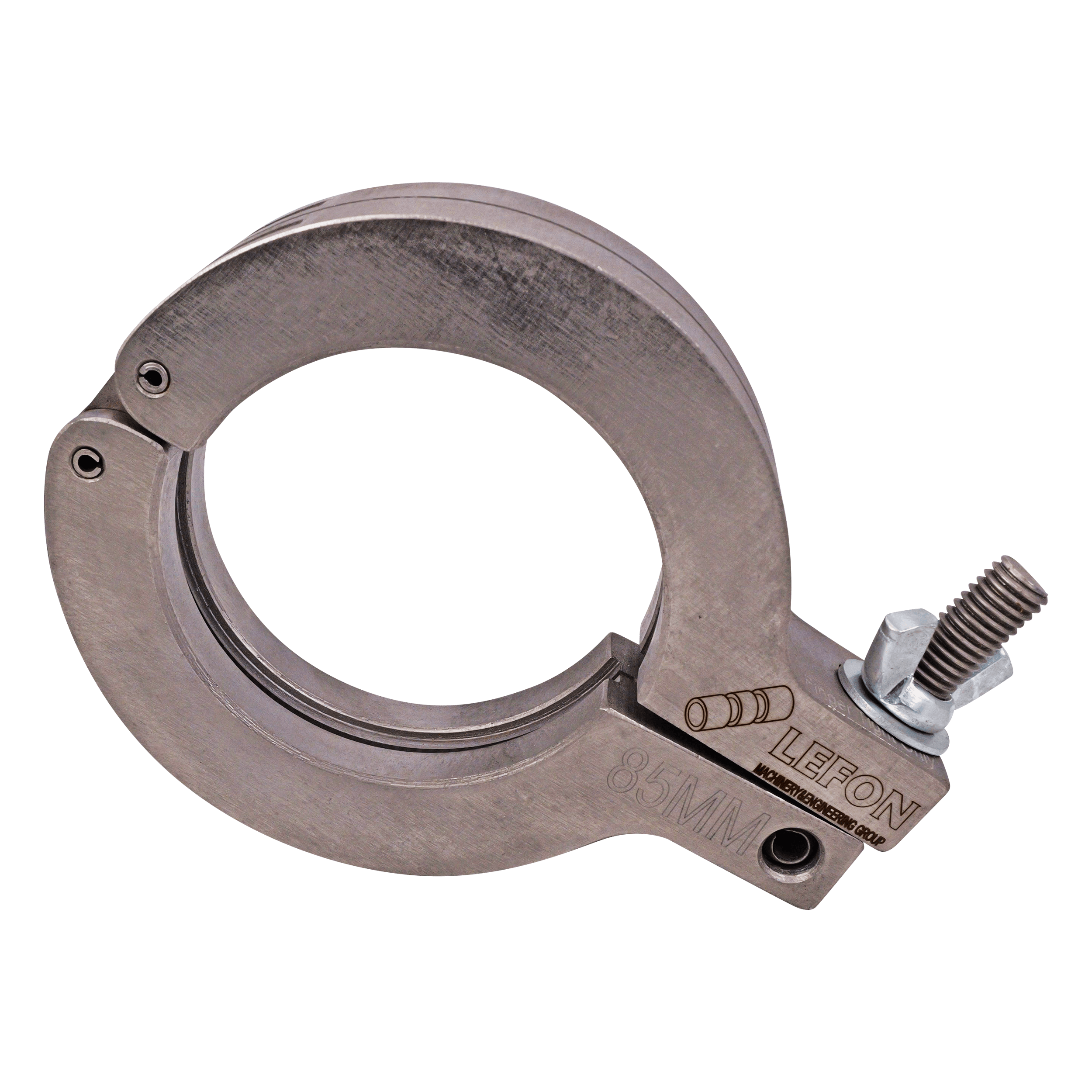

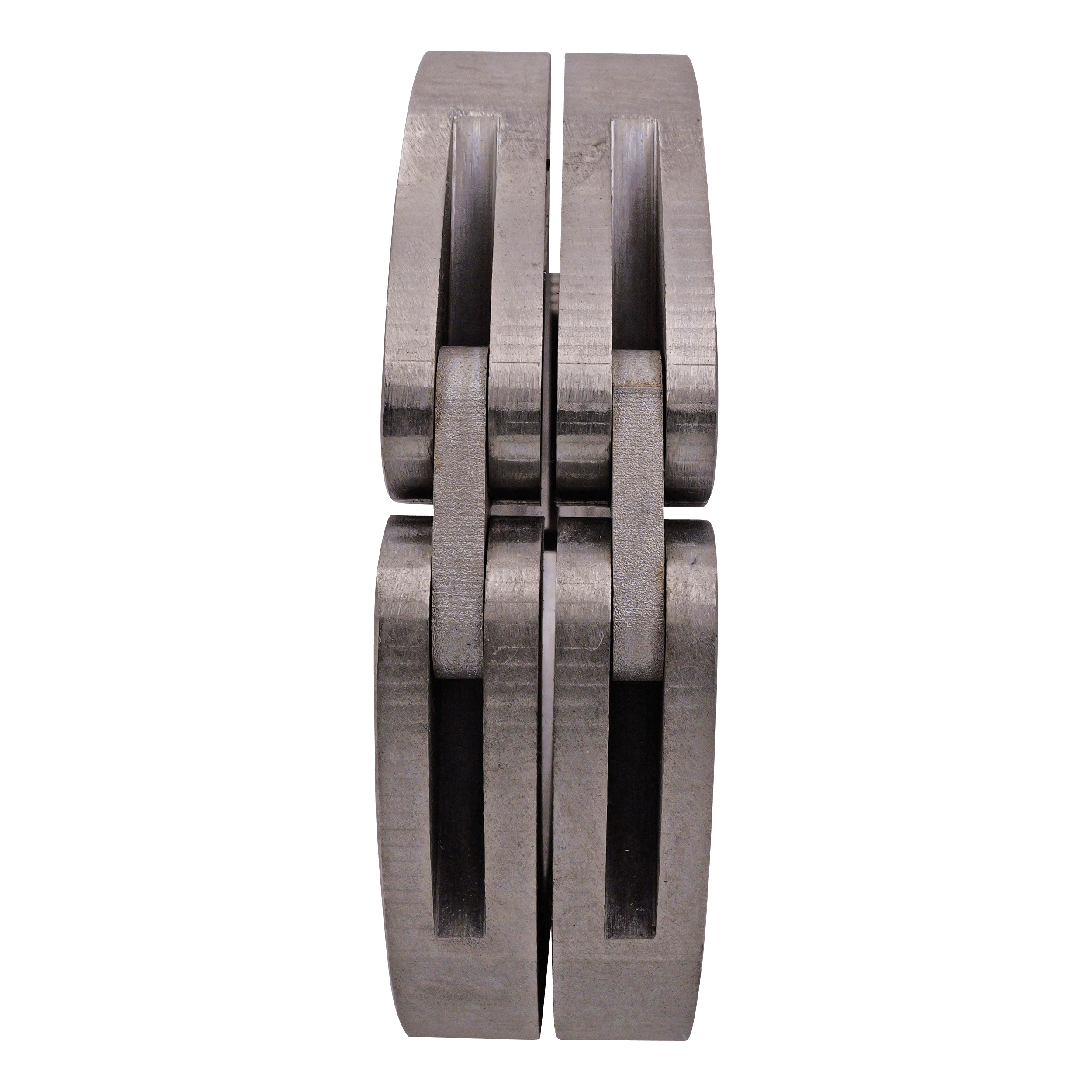

Saw Guide DN80 85mm OD with Wing Nut DIN SG-85mm
SGDN80-WN
- MPN:
- SG-85MM
Net Price: $271.25 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Installation Materials |
|---|---|
| Product Subtype | Saw Guides |
| Size 1 | DN80 |
| Weight | 2.80000 |
- Manufacturer:
- Shanghai Lefon Mechanical & Electrical Equipment
- MPN:
- SG-85MM
Dimensional Data
Wing Nut Style Saw Guides
| DN | Size | A | B | C | D | ||||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | ||
| DN10 | 13 | 1.73 | 44.00 | 0.79 | 20.00 | 1.82 | 46.14 | 0.36 | 9.20 |
| DN15 | 19 | 1.97 | 50.00 | 0.79 | 20.00 | 1.94 | 49.16 | 0.36 | 9.20 |
| DN20 | 23 | 2.20 | 56.00 | 1.18 | 30.00 | 2.18 | 55.26 | 0.56 | 14.20 |
| DN25 | 29 | 2.56 | 65.00 | 1.18 | 30.00 | 2.53 | 64.29 | 0.56 | 14.20 |
| DN32 | 35 | 2.83 | 72.00 | 1.65 | 42.00 | 2.80 | 71.23 | 0.80 | 20.20 |
| DN40 | 41 | 3.03 | 77.00 | 1.65 | 42.00 | 3.00 | 76.26 | 0.80 | 20.20 |
| DN50 | 53 | 3.50 | 89.00 | 1.65 | 42.00 | 3.48 | 88.37 | 0.80 | 20.20 |
| DN65 | 70 | 4.25 | 108.00 | 1.73 | 44.00 | 4.22 | 107.31 | 0.83 | 21.20 |
| DN80 | 85 | 4.84 | 123.00 | 1.73 | 44.00 | 4.82 | 122.40 | 0.83 | 21.20 |
| DN100 | 104 | 5.75 | 146.00 | 1.73 | 44.00 | 5.72 | 145.26 | 0.83 | 21.20 |
