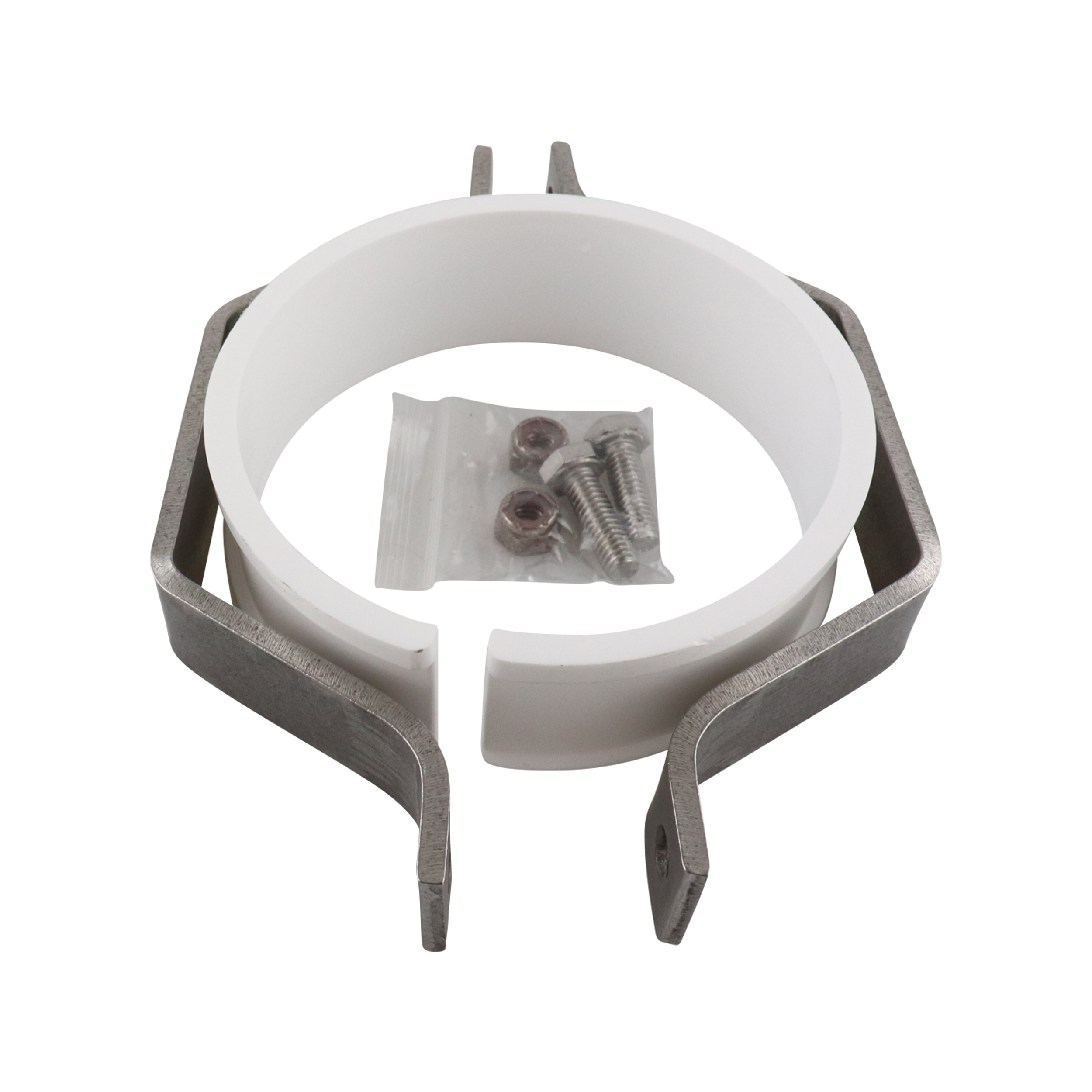

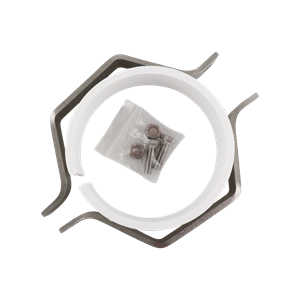

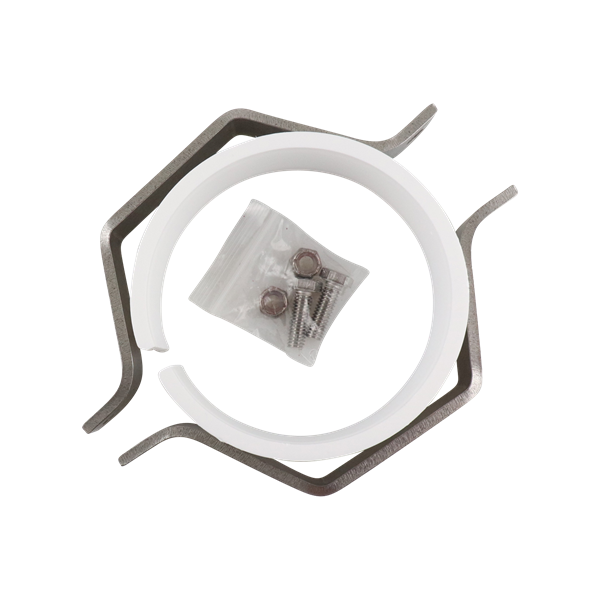

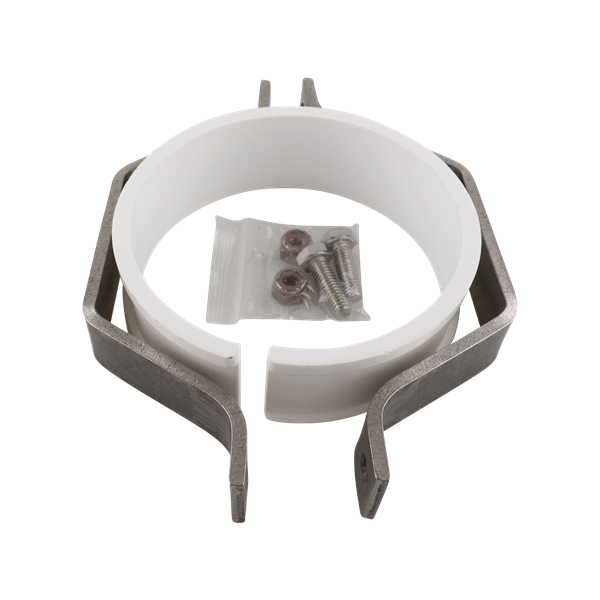

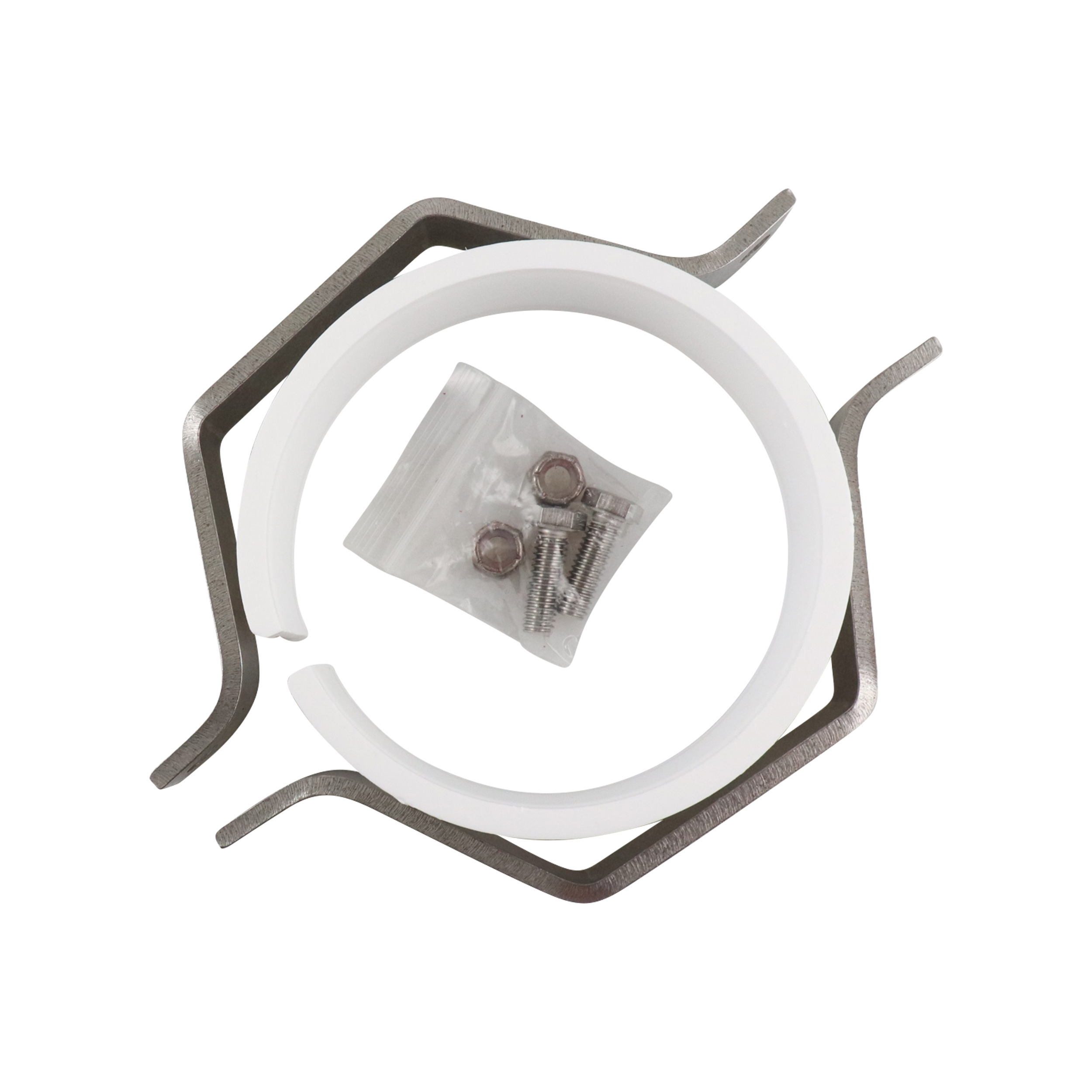

HANGER ASSY 4" PIPE POLYPROPYLENE PP INSERT 329F

B24BV-4-S-PP

Availability:
Springfield, MO 109 EA
Durham, NC 0 EA
Fowler, CA 0 EA
Grand Prairie, TX 3 EA

B24B Dimensional Diagram

Polypropylene Pipe Hex Hanger with Insert | B24BV-Size-S-PP
Nominal SizeABBolt Size
(in)(mm)(in)(mm)(in)(mm)(in)
½12.703.3885.852.0050.80¼ x ¾
¾19.053.3885.851.5338.86¼ x ¾
125.403.7595.252.1354.105/16 x 1
38.104.44112.782.6366.805/16 x 1
250.804.94125.483.1379.505/16 x 1
63.505.56141.223.1379.505/16 x 1
376.206.06153.924.25107.955/16 x 1
4101.607.50190.505.63143.005/16 x 1
5127.008.50215.906.38162.055/16 x 1
6152.409.86250.447.38187.455/16 x 1
8203.2011.38289.059.38244.60⅜ x 1
10254.0015.38390.6511.50292.10⅜ x 1
12304.8017.50444.5013.88352.55⅜ x 1

Literature

Hangers Data Sheet
