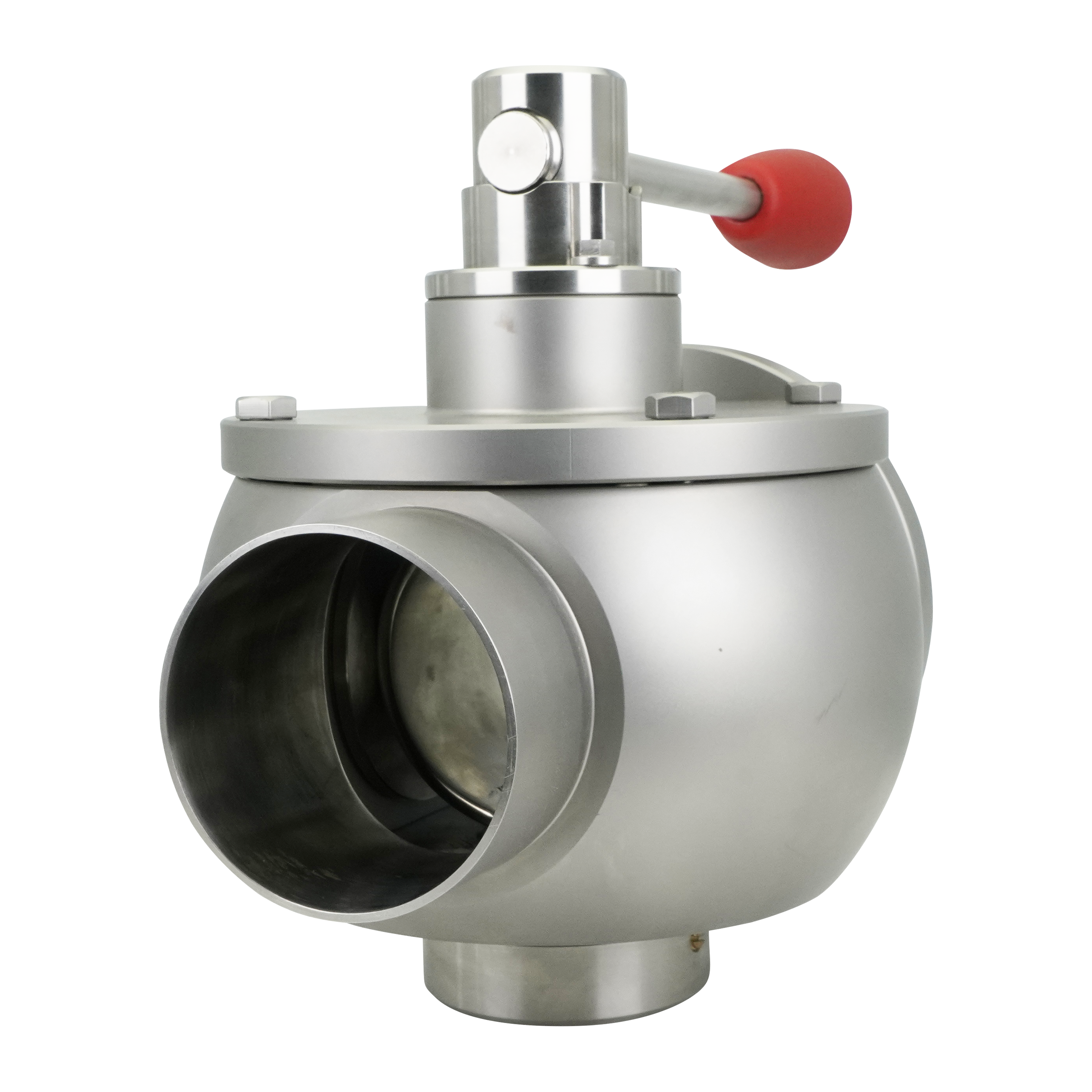

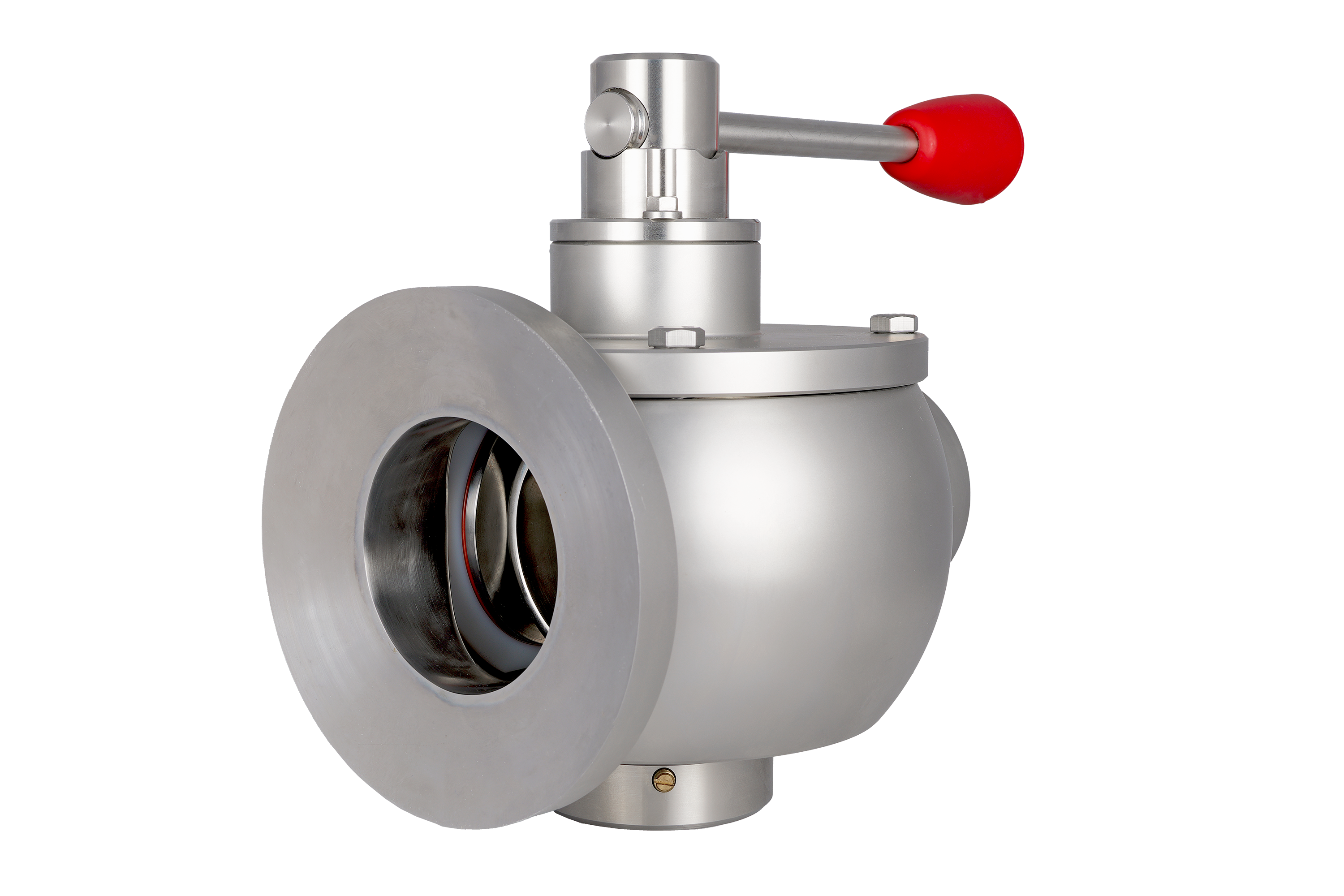

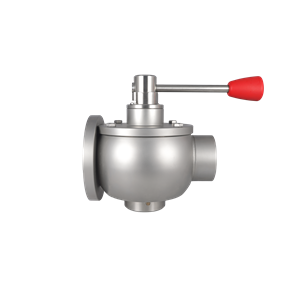

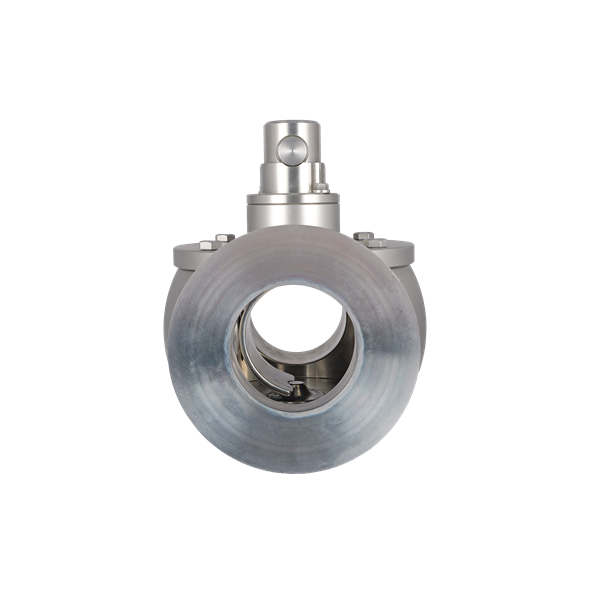

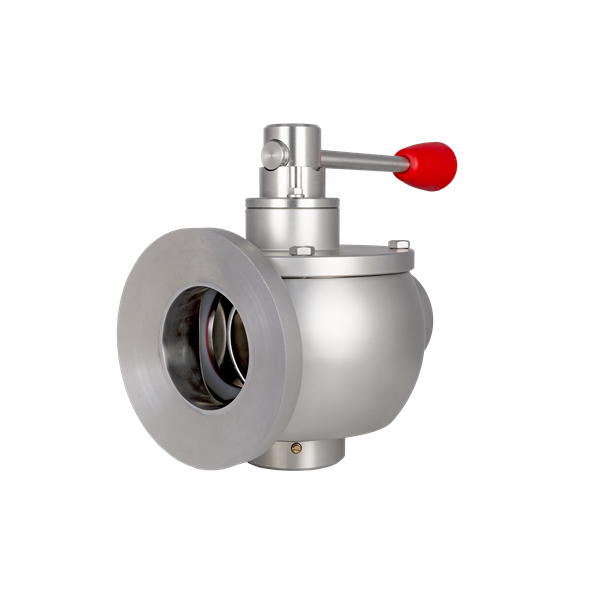

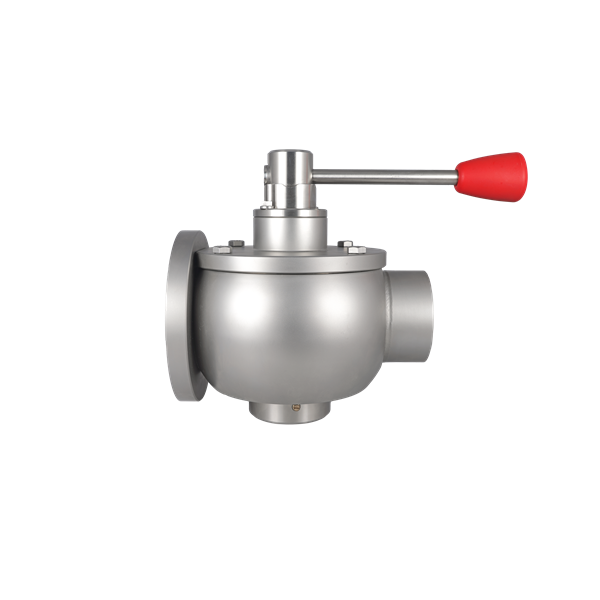

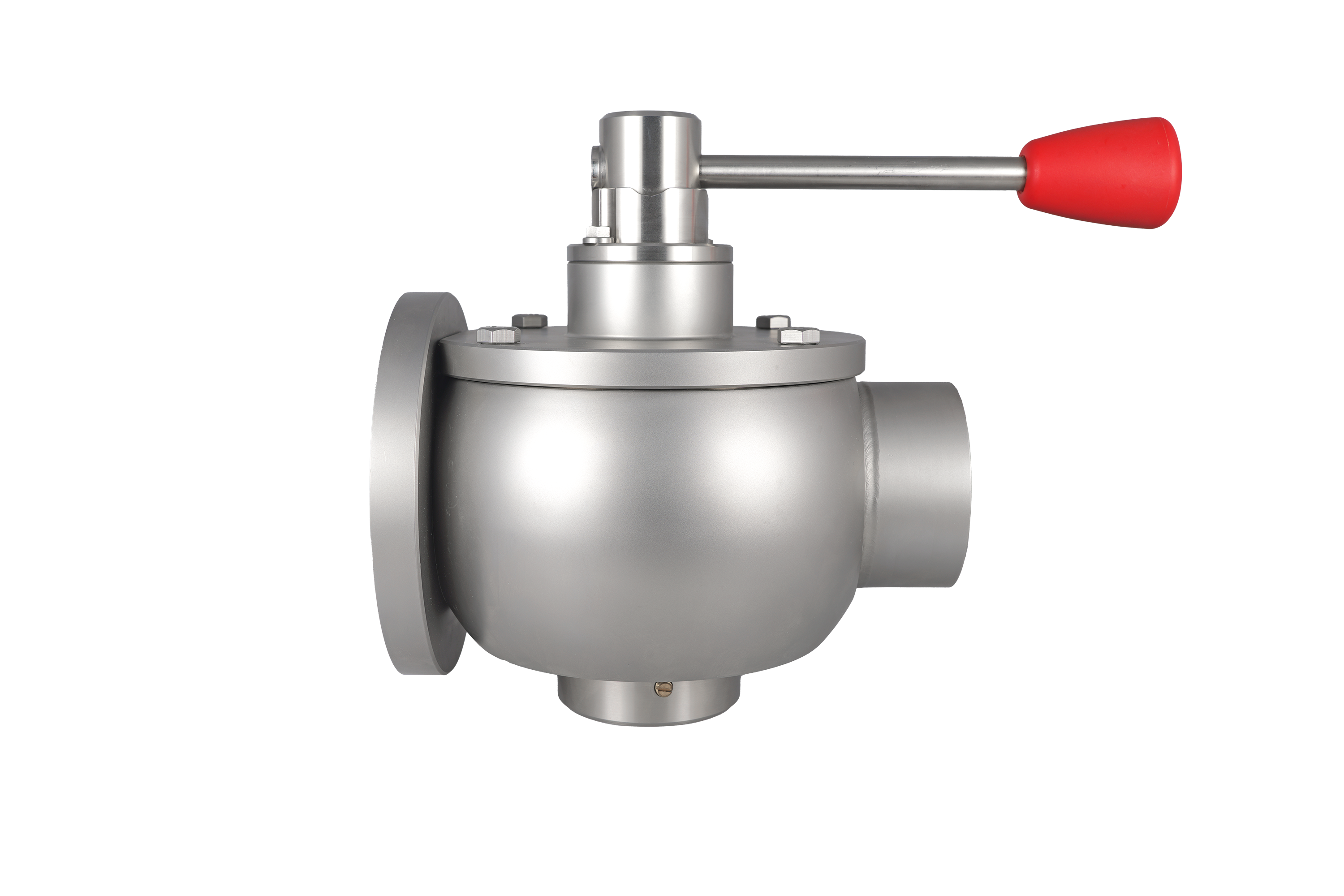

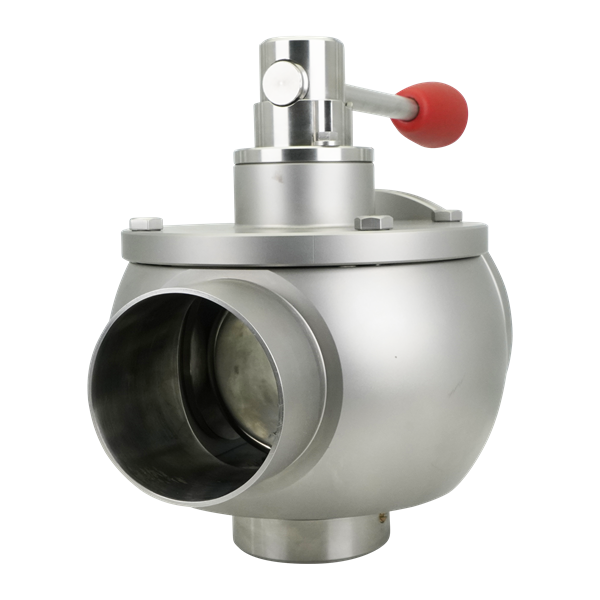

LIAG TANK OUTLET VALVE 2" BW X FLUSH BOTTOM 2-WAY 316L 32RA ID POM BUSHING PTFE SHUTTER EPDM O-RING NON-HEATED MANUAL WITH HANDLE
LSV-2.0W2TE1AN-M
Net Price: $3,735.00 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | Liag / Laufer |
|---|---|
| Product Type | Valves |
| Product Subtype | Shutter Valves |
| Model | 2-Way Tank Outlet |
| Material | 316L Stainless Steel |
| Finish | 32Ra ID |
| Elastomer | EPDM |
| Size 1 | 2" |
| Connection Type 1 | Butt Weld |
| Specification / Standard | 3-A |
| Weight | 6.90000 |
Dimensional Data
Flush Bottom Tank Outlet Valve BW Dimensional Diagram
| Size | A | B | C | D | E | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 5.71 | 145.00 | 5.51 | 140.00 | 0.87 | 22.20 | 4.25 | 108.00 | 6.30 | 160.00 |
| 1½ | 38.10 | 7.10 | 180.00 | 5.51 | 140.00 | 1.37 | 34.90 | 5.20 | 132.00 | 6.30 | 160.00 |
| 2 | 50.80 | 7.48 | 190.00 | 5.51 | 140.00 | 1.87 | 47.50 | 6.06 | 154.00 | 7.48 | 190.00 |
| 2½ | 63.50 | 7.87 | 200.00 | 5.51 | 140.00 | 2.37 | 60.20 | 7.28 | 185.00 | 7.48 | 190.00 |
| 3 | 76.20 | 8.46 | 215.00 | 5.51 | 140.00 | 2.87 | 72.90 | 7.80 | 198.00 | 7.48 | 190.00 |
| 4 | 101.60 | 10.43 | 265.00 | 5.51 | 140.00 | 3.83 | 97.40 | 10.63 | 270.00 | 10.63 | 270.00 |
