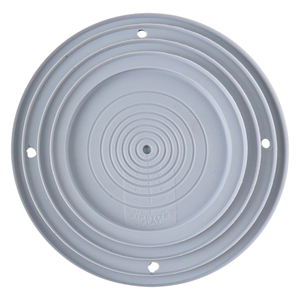

PIPETITE FLAT GREY COLOR SIZE 2 UNCUT 0 - 2.56"
PTF2-GRAY
Pipetite® forms a flexible, sanitary seal that allows for pipeline movement. Pipetite Flat is designed for jacketed vessels, sheathed tanks, and hard to reach penetrations where a Pipetite Standard is too tall. It will also cover and seal holes created by previously run pipe or other equipment.
Pipetite's unique base design incorporates self-sealing ridges that provide excellent surface contact, so caulks and sealants are not required for installation.
$24.00 / EA
- Availability:
-
Springfield, MO 40 EA Durham, NC 0 EA Modesto, CA 0 EA Grand Prairie, TX 209 EA
Spare Parts
Dimensional Data
Flat | PTF2-000
| Tube OD | A | B | C | ||||
|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 0.00-2.50 | 63.50 | 4.17 | 105.92 | 3.58 | 90.93 | 0.37 | 9.40 |
Resources
Literature
Pipetite BfR Recommendation XV CoC
Pipetite Declaration Of Compliance Of BfR Section XV
Pipetite Declaration Of Compliance On Food Contact Materials
Pipetite® Letter of Conformity 21-01-21
Pipetite® rings stainless steel certification 21-01-21
Pipetite FDA Signed Letter 26-5-14
Pipetite ISO 14001 Environmental Certification
Pipetite MSDS Stainless Steel Rings
Pipetite SGS Institut Fresenius Compliance Of BfR Section XV
Attributes
- Finish:
- Gray
- Size:
- 2
- Weight:
- 0.18
- Country of Origin:
- 35
- Manufacturer:
- Lake Products LTD
- Manufacturer part number:
- 317 212P
Features
- 4 sizes available to fit pipe and tubing up to 5 inch OD
- Flexible seal allows movement without damage or loss of seal
- Easily trimmed to size
- Totally self-sealing—no sealant required
- Predrilled for quick and easy installation with no messy clean-up
- Materials compatible with cleaning solutions
Technical Data
| Materials | Hygienic white silicone 316 stainless steel |
| Tube OD size range | 0 – 5 inch |
| Temperature (min) | -40°F |
| Temperature (max) | 500°F |
| Patents | 9255412, 10000934, 9206928 |
| Registered Designs | 699328, 785768, 801487, 821553 |
Dimensional Data
| Size | Tube OD
(in) |
A
(in) |
B
(in) |
C
(in)* |
# of Anchors Needed |
White Item # |
Gray Item # |
|---|---|---|---|---|---|---|---|
| 1 | 0.00-1.00 | 2.76 | 2.24 | 0.37 | 4 | PTF1-000 | N/A |
| 2 | 0.00 - 2.50 | 4.17 | 3.58 | 0.37 | 4 | PTF2-000 | PTF2-GRAY |
| 3 | 0.00 - 3.74 | 5.79 | 5.04 | 0.37 | 6 | PTF3-000 | PTF3-GRAY |
| 4 | 0.00 - 5.31 | 7.36 | 6.61 | 0.37 | 6 | PTF4-000 | PTF4-GRAY |
Bolt holes are 0.177 inches in diameter.
*Max height
