Wilden
WILDEN PS810 DIAPHRAGM PUMP 2" NPT PROFLO SWITCH ATEX BRAHMA BOLTED METAL DUCTILE IRON MILD STEEL ALUMINUM CENTER PORTED MANIFOLDS BUNA DIAPHRAGMS AND FLAP VALVES MILD STEEL VALVE SEATS WITH BUNA SEAT O-RINGS AODD
XPS810WMAAABNSBFMBN0677
Net Price: $5,176.00 / EA
This item is non-returnable.
- Availability:
Spare Parts
- Total: 2
| Product | Availability |
Price
|
||
|---|---|---|---|---|

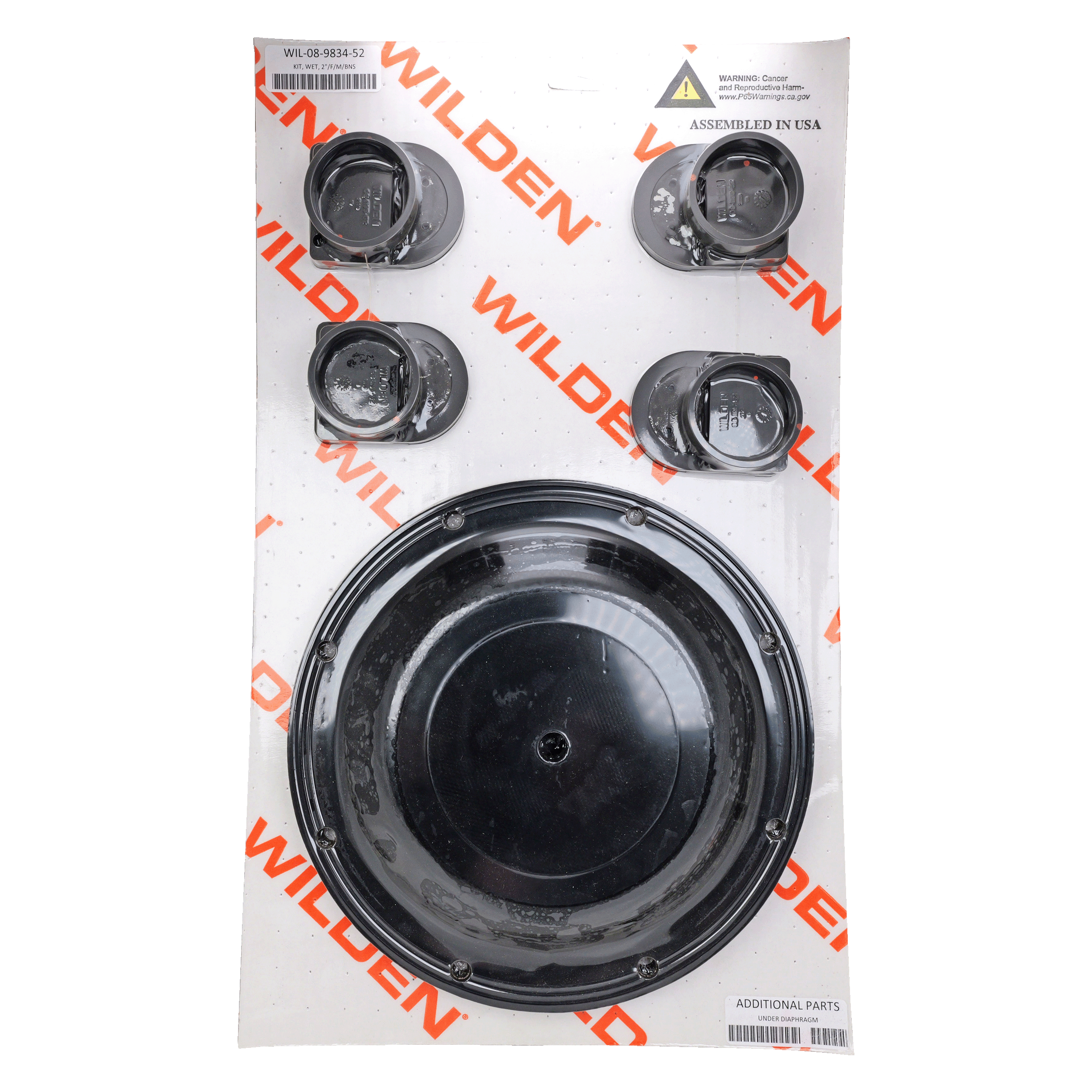

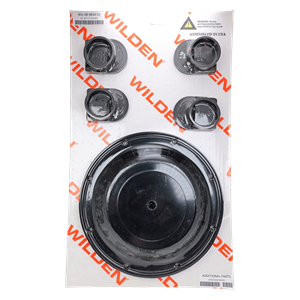

| WILDEN REPAIR KIT WET 2" BRAHMA METAL BUNA |
$480.60 / EA |
|
||
| WILDEN REPAIR KIT AIR PS 2" 3" F/M/M |
$824.10 / EA |
|
- Total: 2
Suggested products
Attributes
| Brand | Wilden |
|---|---|
| Product Type | Pumps |
| Product Subtype | Diaphragm Pumps |
| Series | Pro-Flo Shift Series |
| Model | XPS810 |
| Material | Ductile Iron |
| Size 1 | 2" |
| Connection Type 1 | NPT |
| Diaphragm Material | Buna |
| Weight | 125.00000 |
Dimensional Data
XPS810 Metal
| A | B | C | D | E | F | G | H | J | K | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 21.7 | 550 | 2.7 | 68 | 11.1 | 283 | 17.8 | 451 | 20.0 | 509 | 2.0 | 50 | 2.6 | 66 | 13.9 | 354 | 26.7 | 680 | 10.7 | 272 |
Resources
0Data Sheets
Wilden Brahma PS810 Bolted Metal Data Sheet
1Manuals
22D Drawings
Wilden Pro-Flo Shift PS810 Bolted Metal 2D Drawing
33D Models
8Other Literature
