Alfa Laval

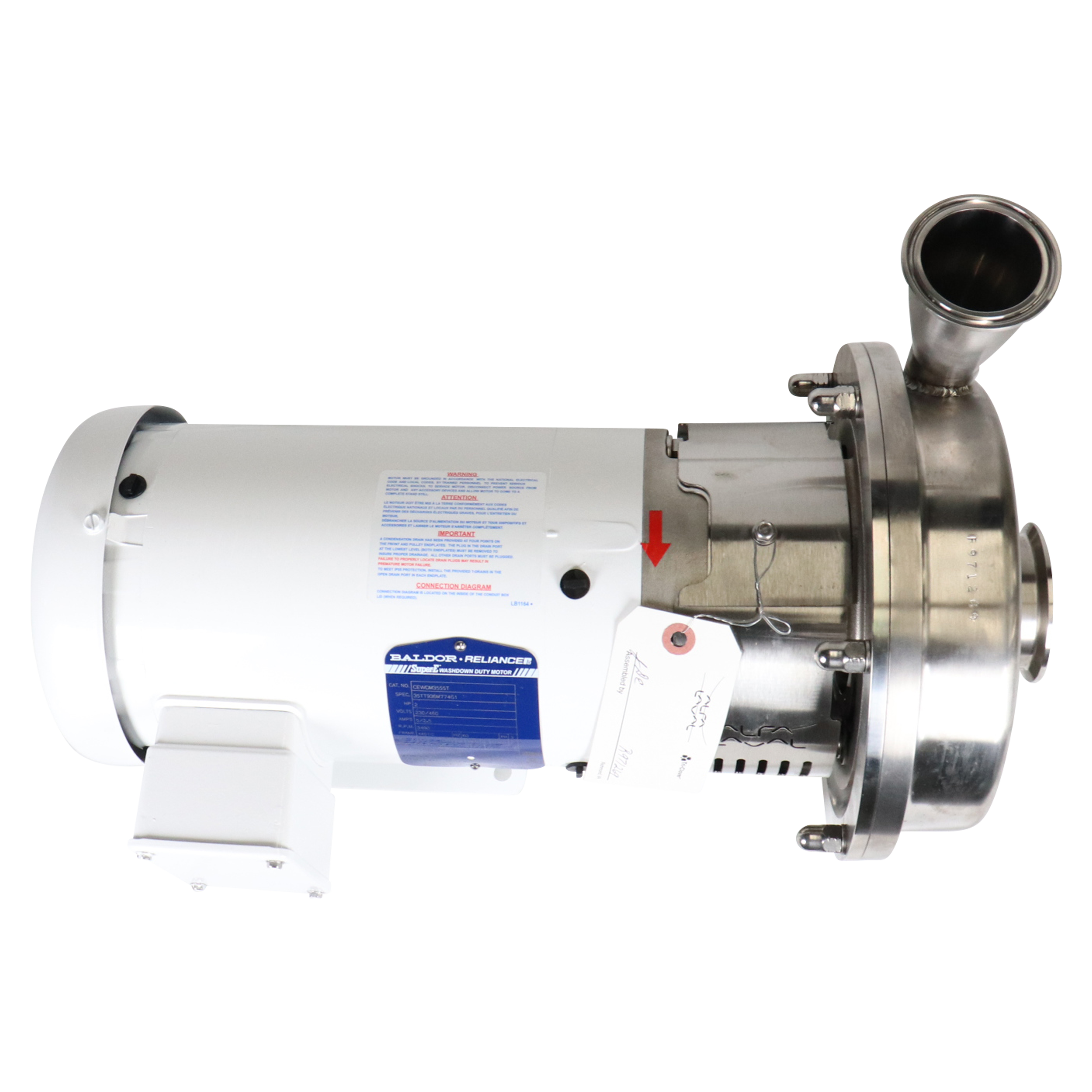

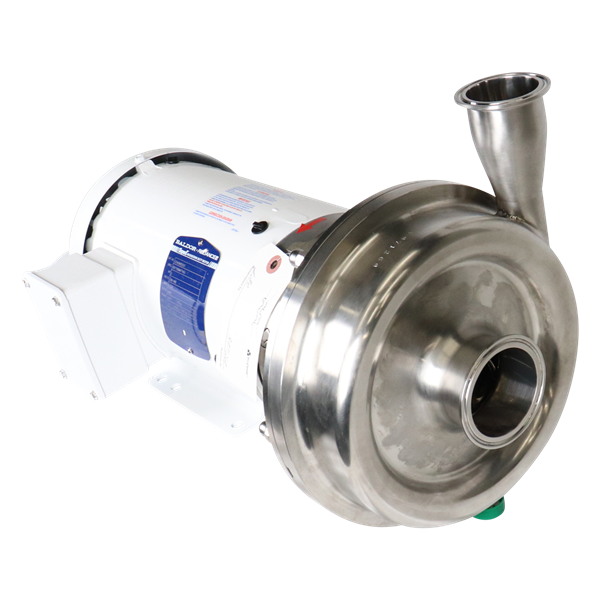

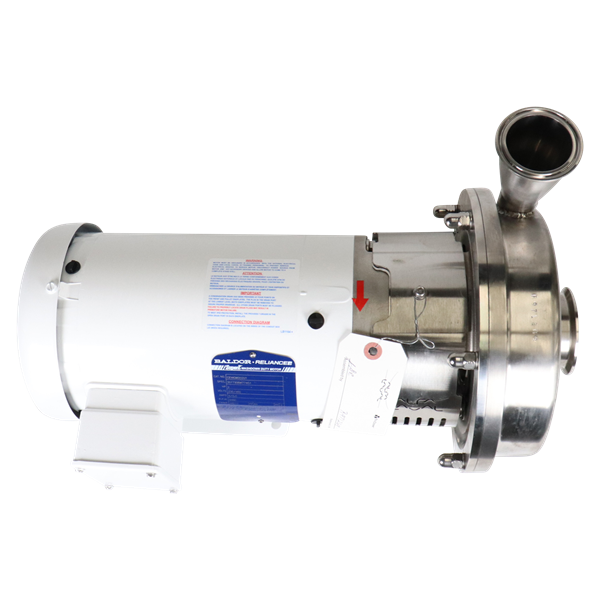

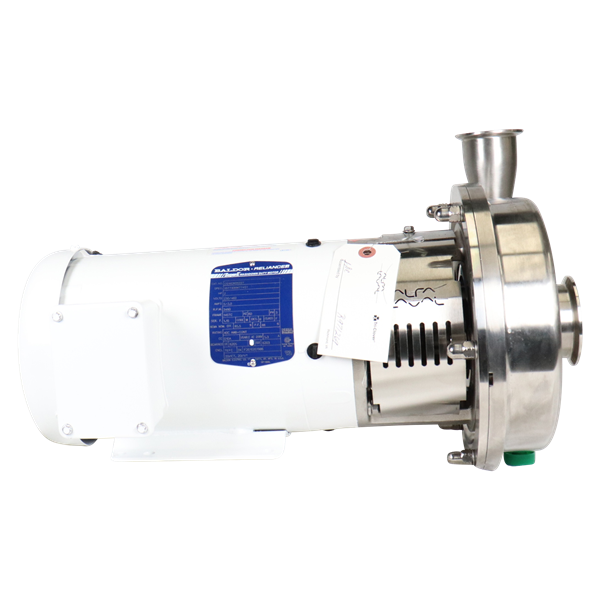

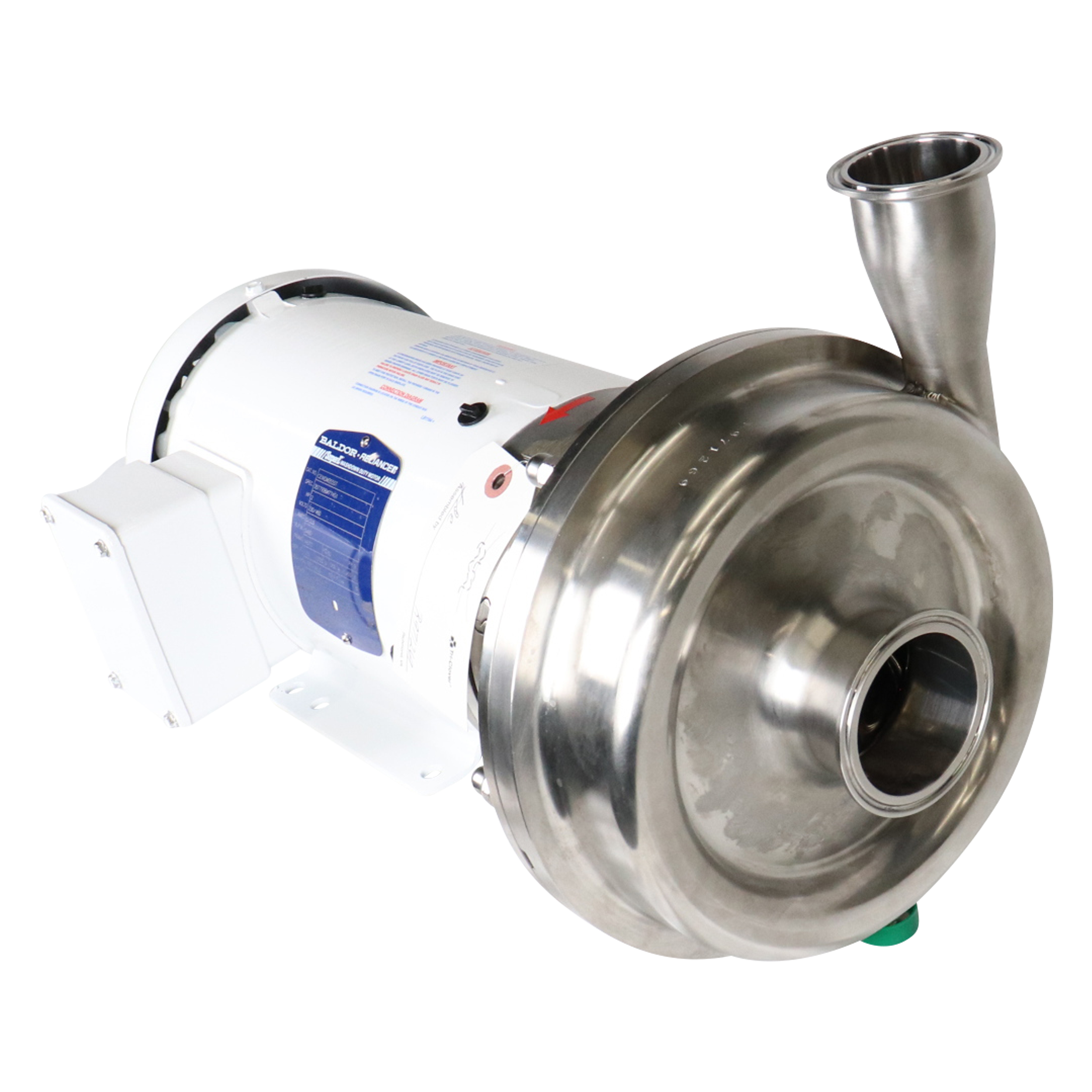

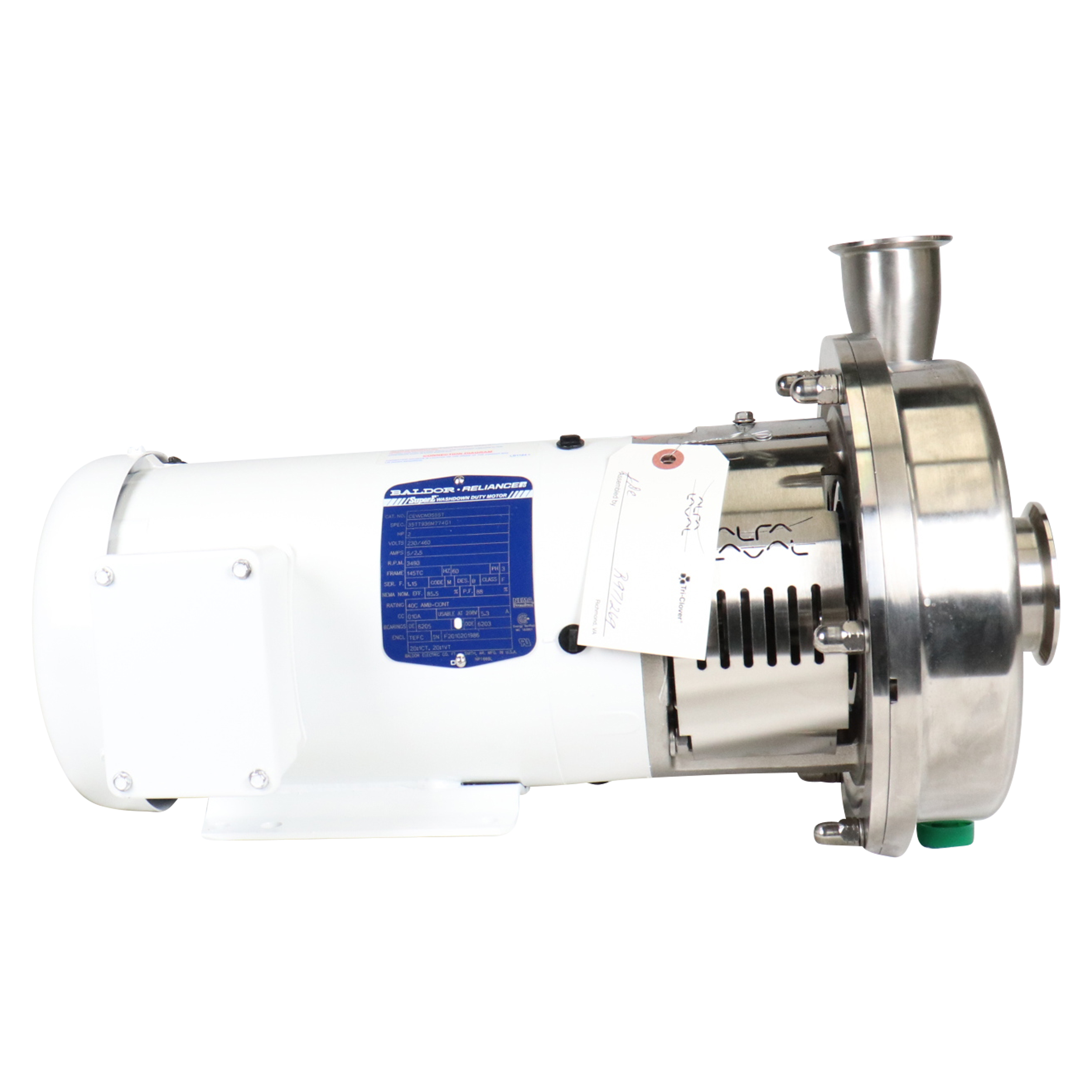

LKHU10M140S4YN14CBNN-002B36WBP LKHU10 ULTRAPURE PUMP AND MOTOR 2.5" X 2" TC 316L 20RA SC/SC SINGLE MECHANICAL VITON 140MM IMPELLER 90 DEGREE DISCHARGE 0.5" VERTICAL CASING DRAIN 145TC 2HP 3 PHASE 60HZ 230V 460V 3600 RPM WASHDOWN BALDOR NO LEGS QDOC PACKAGE ALFA LAVAL
LKHU10M140S4YN14CBNN-002B36WBP
- MPN:
- 9618132603
Net Price: $12,021.47 / EA
This item is non-returnable.
- Availability:
Spare Parts
- Total: 1
| Product | Availability |
Price
|
||
|---|---|---|---|---|
| SERVICE KIT SC/SC VITON SINGLE SHAFT SEAL WITH IMPELLER O-RING LKHU 10 ULTRAPURE |
$2,196.90 / EA |
|
- Total: 1
Suggested products
Attributes
| Brand | Alfa Laval |
|---|---|
| Motor Brand | Baldor |
| Product Type | Pumps |
| Product Subtype | Centrifugal Pumps |
| Series | LKH Series Ultrapure |
| Model | LKHU 10 |
| Material | 316L Stainless Steel |
| Finish | 20Ra |
| Elastomer | FKM (Viton) |
| Size 1 | 2.5" |
| Connection Type 1 | Tri-Clamp |
| Size 2 | 2" |
| Connection Type 2 | Tri-Clamp |
| Orientation / Mount | Vertical |
| Enclosure | Washdown |
| Horsepower | 2HP |
| Motor Speed | 3600 RPM |
| Seal Type | Single Mechanical |
| Seal Material | Silicon Carbide / Silicon Carbide |
| Weight | 87.00000 |
- Manufacturer:
- Alfa Laval Inc
- MPN:
- 9618132603
Dimensional Data
Resources
0Data Sheets
Alfa Laval LKH UltraPure Data Sheet
1Manuals
2Performance Curves
