All-Flo

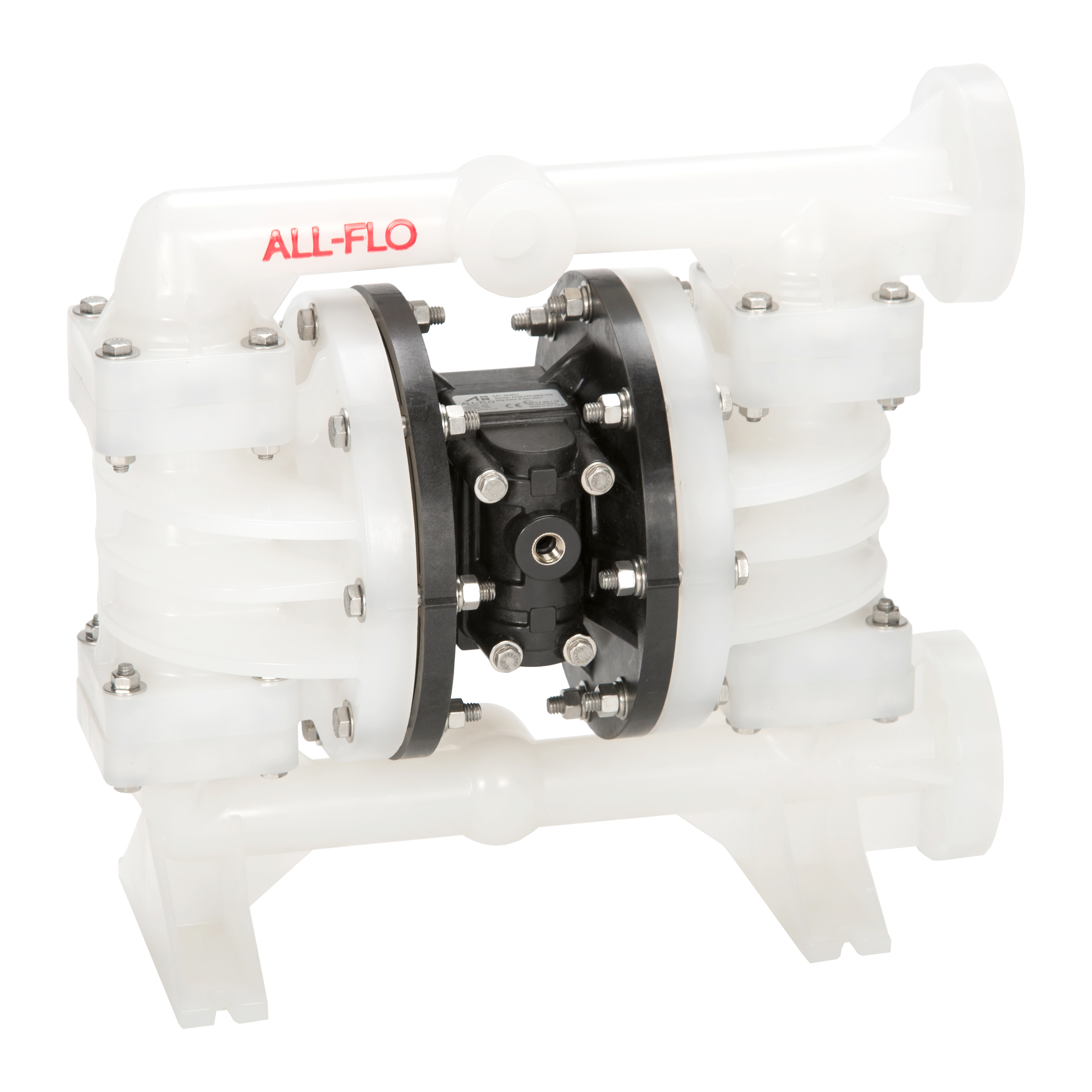

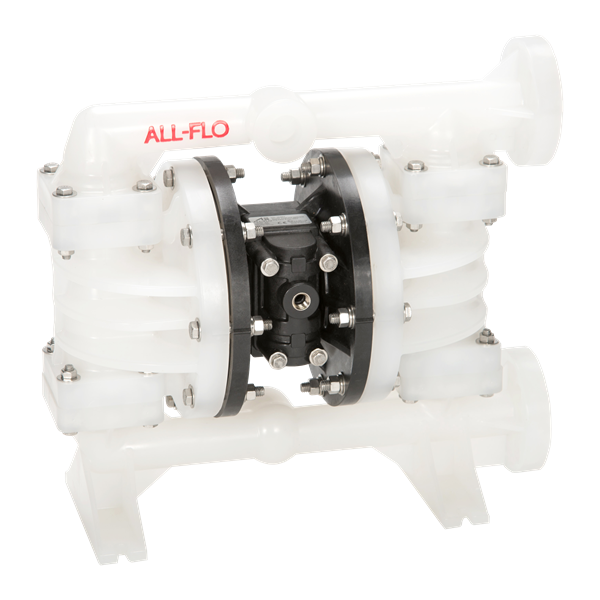

ALL-FLO A100 DIAPHRAGM PUMP 1" ANSI/DIN FLANGE BOLTED PLASTIC POLYPROPYLENE WET SIDE POLYPROPYLENE AIR SIDE SANTOPRENE DIAPHRAGM SANTOPRENE VALVE BALL POLYPROPYLENE SEATS EPDM O-RINGS A SERIES AODD

A100-FPP-SSPE-S70

USUALLY SHIPS IN 1-3 DAYS

Net Price: $1,406.00 / EA

Page size:

	Product	Item Number	Availability		Price
	ALL-FLO REPAIR KIT WET 1" BOLTED PLASTIC SANTOPRENE	AWE-100-SSPE-P		$232.20 / EA	Quantity
	ALL-FLO REPAIR KIT AIR 1" BOLTED POLYPROPYLENE	AAK-100-P		$245.20 / EA	Quantity

A100 Dimensional Diagram (Dimensions A, B, C, and D) A100 Dimensional Diagram (Alternate footprint; Dimensions R, S, T, U, and V)

Size		A		B		C		D		E		F		G		H		I		J		K		L		M		N		O		P		Q		R		S		T		U		V
(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)
1.00	25.40	9.20	233.68	2.00	50.80	5.30	134.62	10.00	254.00	11.00	279.40	2.00	50.80	4.00	101.60	3.10	78.74	5.60	142.24	8.90	226.06	5.40	137.16	8.80	223.52	10.90	276.86	5.70	144.78	4.50	114.30	3.60	91.44	4.00	101.60	0.30	7.62	7.40	187.96	6.10	154.94	5.50	139.70	5.10	129.54
