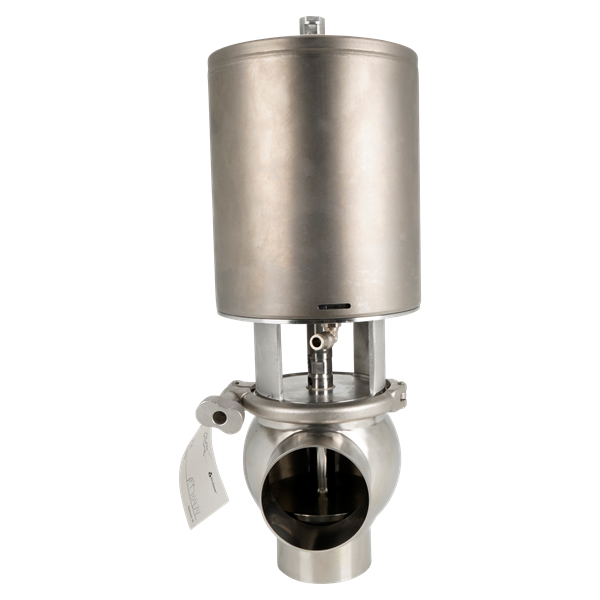

SHUTOFF VALVE 3" BW ELASTOMER PLUG EPDM SEAL N/C
7610-200SW2H302SRSSES
This item is non-returnable.
$3,034.49 / EA
- Availability:
-
Springfield, MO 0 EA Durham, NC 0 EA Modesto, CA 0 EA Grand Prairie, TX 0 EA
Spare Parts
- Total: 2
| Product | Availability |
Price
|
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SERVICE KIT ACTUATOR 3" 4" DN80 DN100 UNIQUE SSV MAINTAINABLE N/O N/C ALFA LAVAL |
|
$46.78 / EA |
|
||||||||
| SERVICE KIT 3" EPDM UNIQUE SSV SHUTOFF VALVE |
|
$88.03 / EA |
|
- Total: 2
Attributes
- Weight:
- 33
- Manufacturer:
- Alfa Laval
- Manufacturer part number:
- 9613361315
Dimensional Data
Unique SSV Shutoff 2 Port Butt Weld Single Seat Valve
| Nominal Size | A | B | E | H | |||||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 12.89 | 327.41 | 12.30 | 312.42 | 2.47 | 62.74 | 3.35 | 85.09 |
| 1½ | 38.10 | 13.13 | 333.50 | 12.34 | 313.44 | 2.45 | 62.23 | 3.35 | 85.09 |
| 2 | 50.80 | 15.30 | 388.62 | 14.27 | 362.46 | 2.90 | 73.66 | 4.53 | 115.06 |
| 2½ | 63.50 | 16.29 | 413.77 | 15.31 | 388.87 | 3.69 | 96.73 | 4.53 | 115.06 |
| 3 | 76.20 | 17.80 | 452.12 | 16.62 | 422.15 | 3.89 | 98.81 | 6.20 | 157.48 |
| 4 | 101.60 | 19.58 | 497.33 | 18.40 | 467.36 | 5.19 | 131.83 | 6.20 | 157.48 |
