Alfa Laval

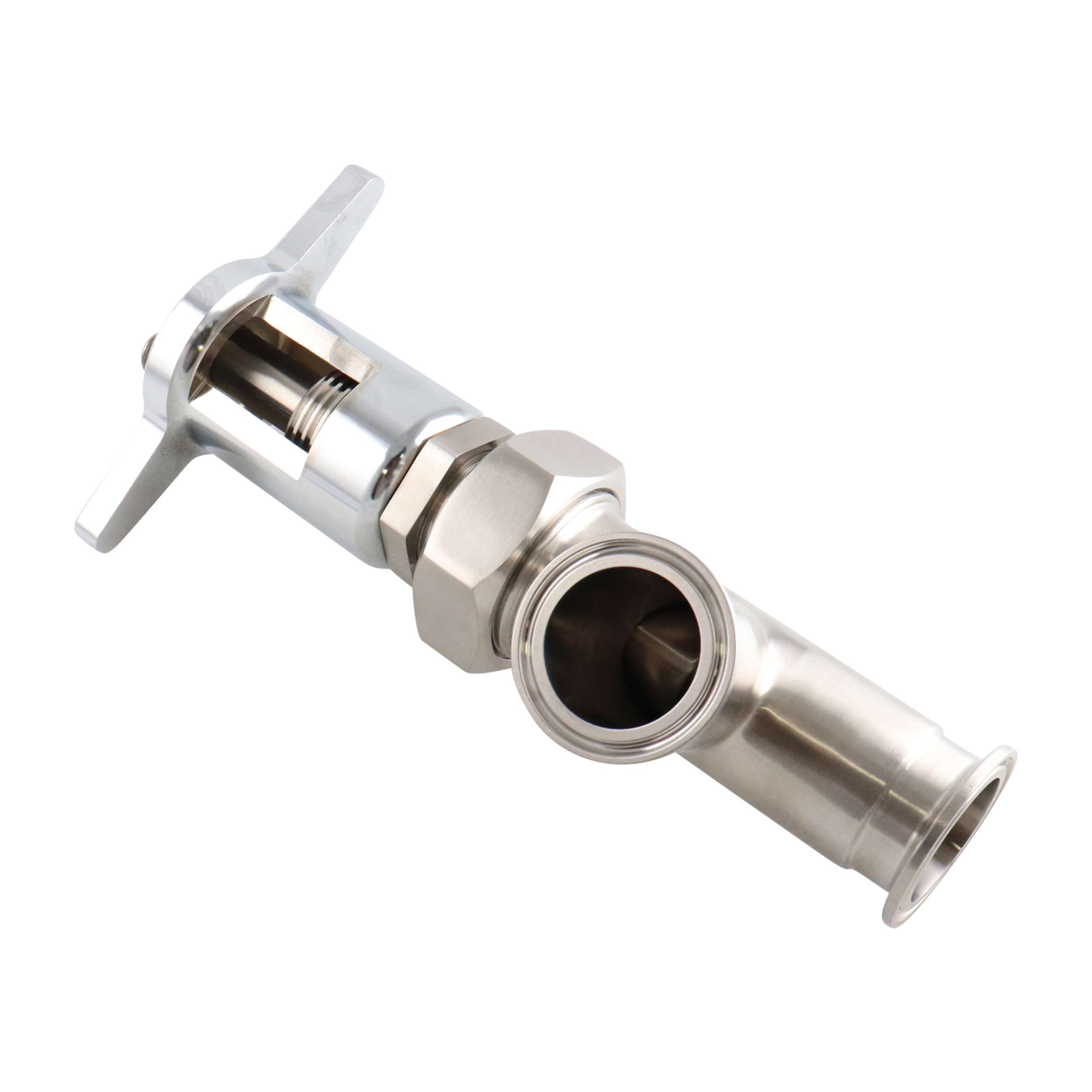

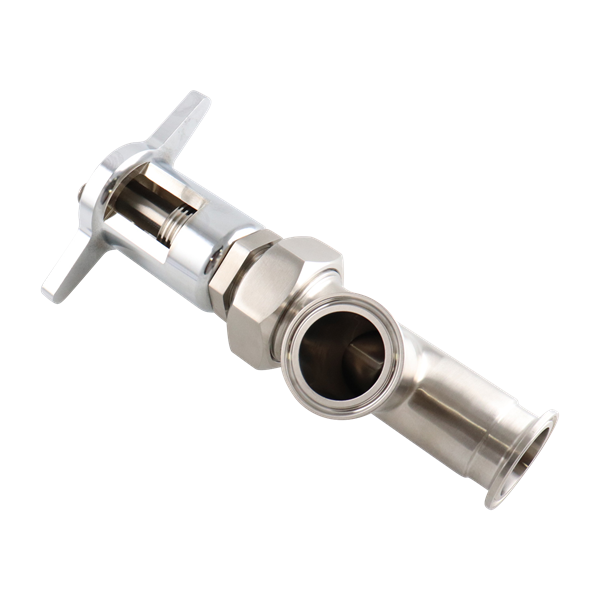

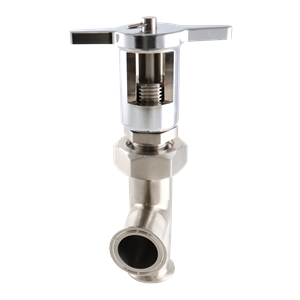

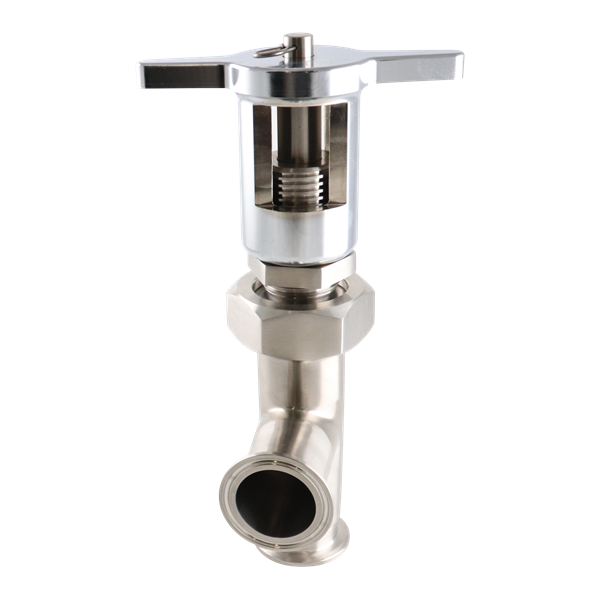

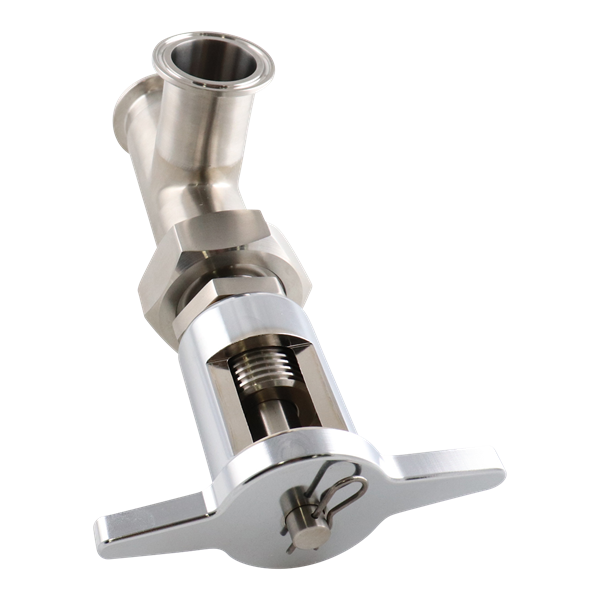

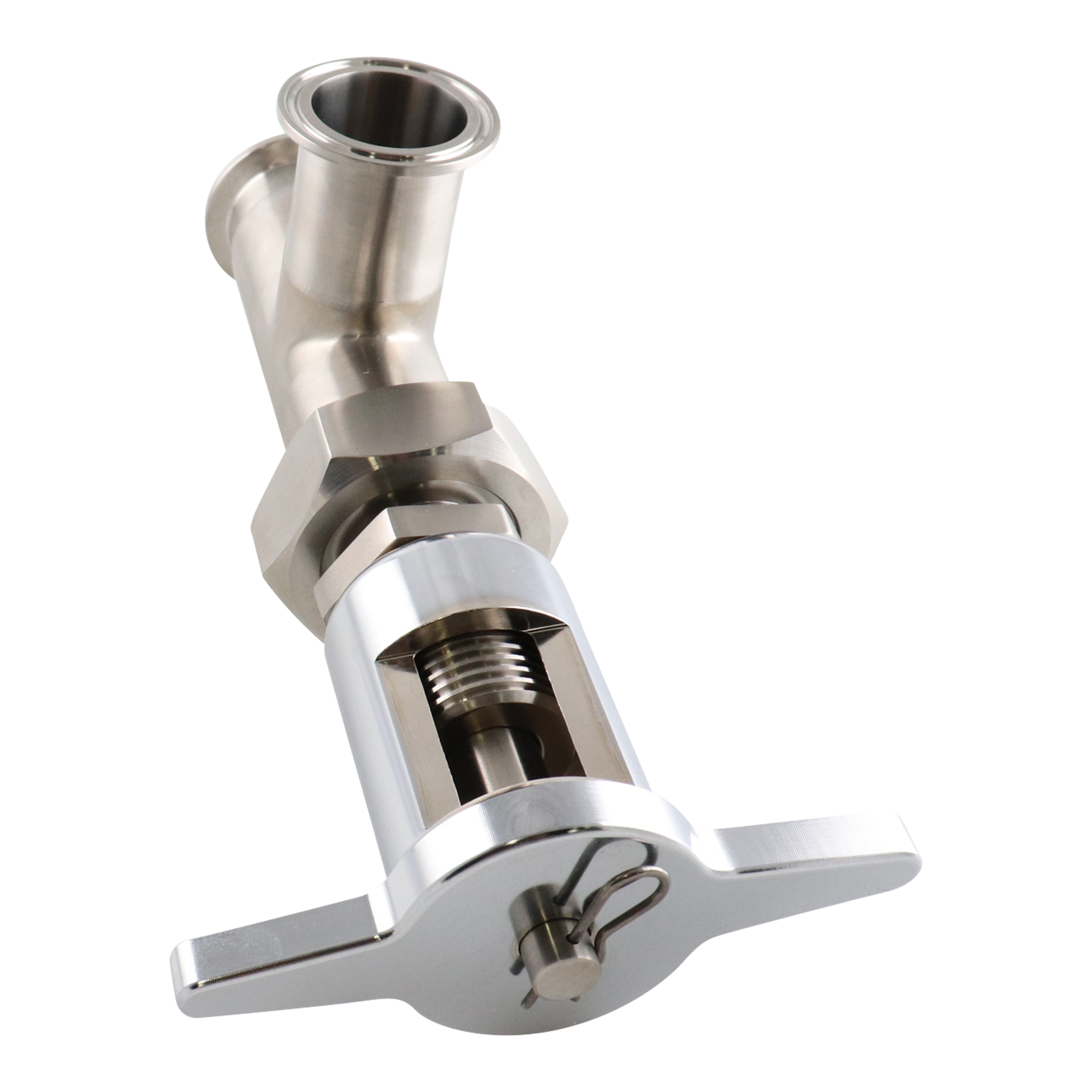

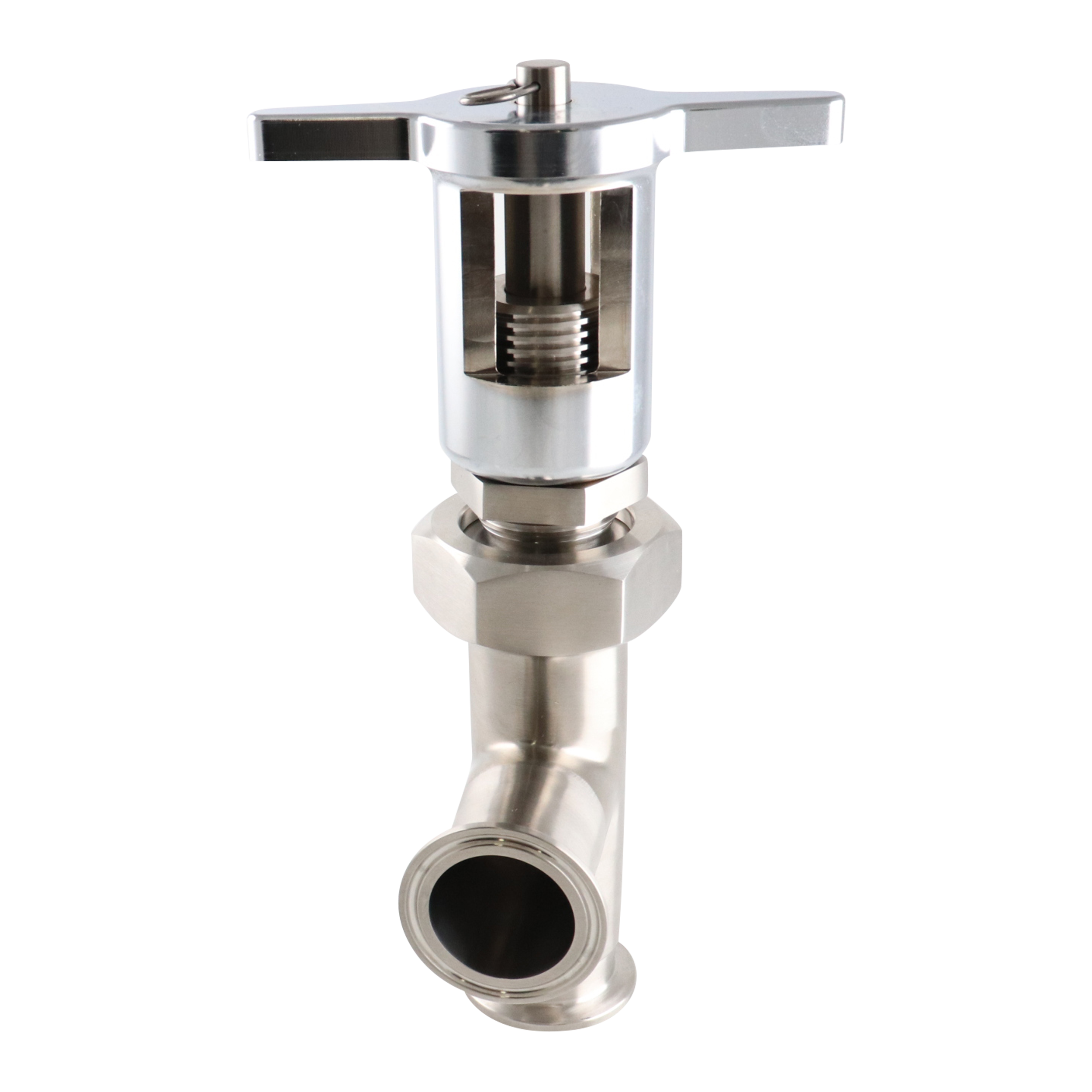

Alfa Laval D60RTHMP Relief Valve 1.5" Tri-Clamp 316L Buna S Spring 5-25 PSI
D60RTHMP-1.5-316
- MPN:
- 200082
Net Price: $3,127.98 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | Alfa Laval |
|---|---|
| Product Type | Valves |
| Product Subtype | Pressure Relief Valves |
| Series | D60 Series |
| Model | D60RTHMP |
| Material | 316L Stainless Steel |
| Size 1 | 1.5" |
| Connection Type 1 | Tri-Clamp |
| Weight | 15.30000 |
- Manufacturer:
- Alfa Laval Inc
- MPN:
- 200082
Dimensional Data
D60RTHMP Pressure Relief Valve
| Nominal Size | A | B (min) | B (max) | ||||
|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 2.38 | 60.45 | 5.38 | 136.65 | 6.50 | 165.10 |
| 1½ | 38.10 | 2.75 | 69.85 | 7.38 | 187.45 | 9.00 | 228.60 |
| 2 | 50.80 | 3.50 | 88.90 | 7.63 | 193.80 | 9.63 | 244.60 |
| 2½ | 63.50 | 3.50 | 88.90 | 9.88 | 250.95 | 12.00 | 304.80 |
| 3 | 76.20 | 3.75 | 95.25 | 11.13 | 282.70 | 13.88 | 352.55 |
Resources
0Data Sheets
Alfa Laval D60RTHMP Data Sheet
5Spare Part Lists
