Alfa Laval

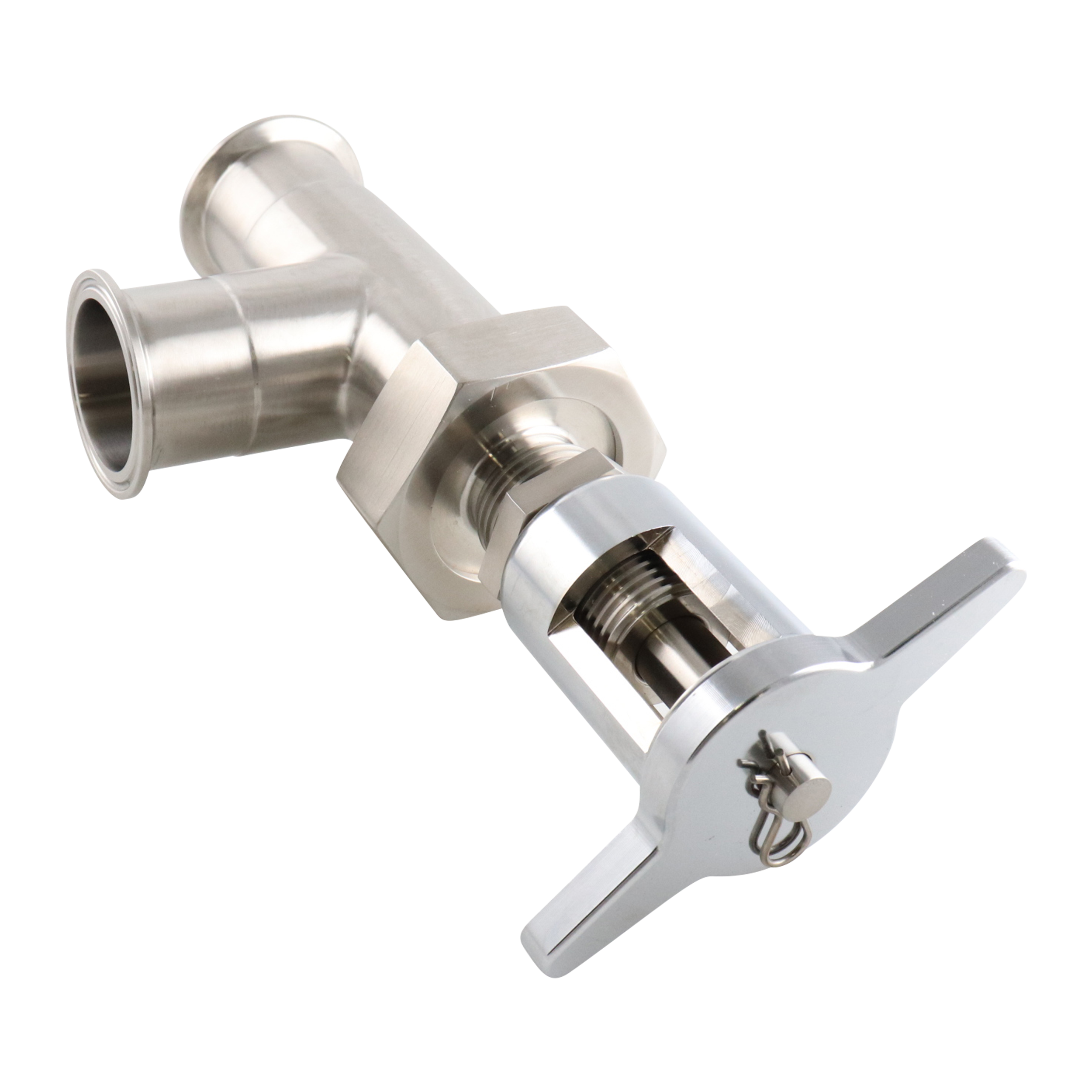

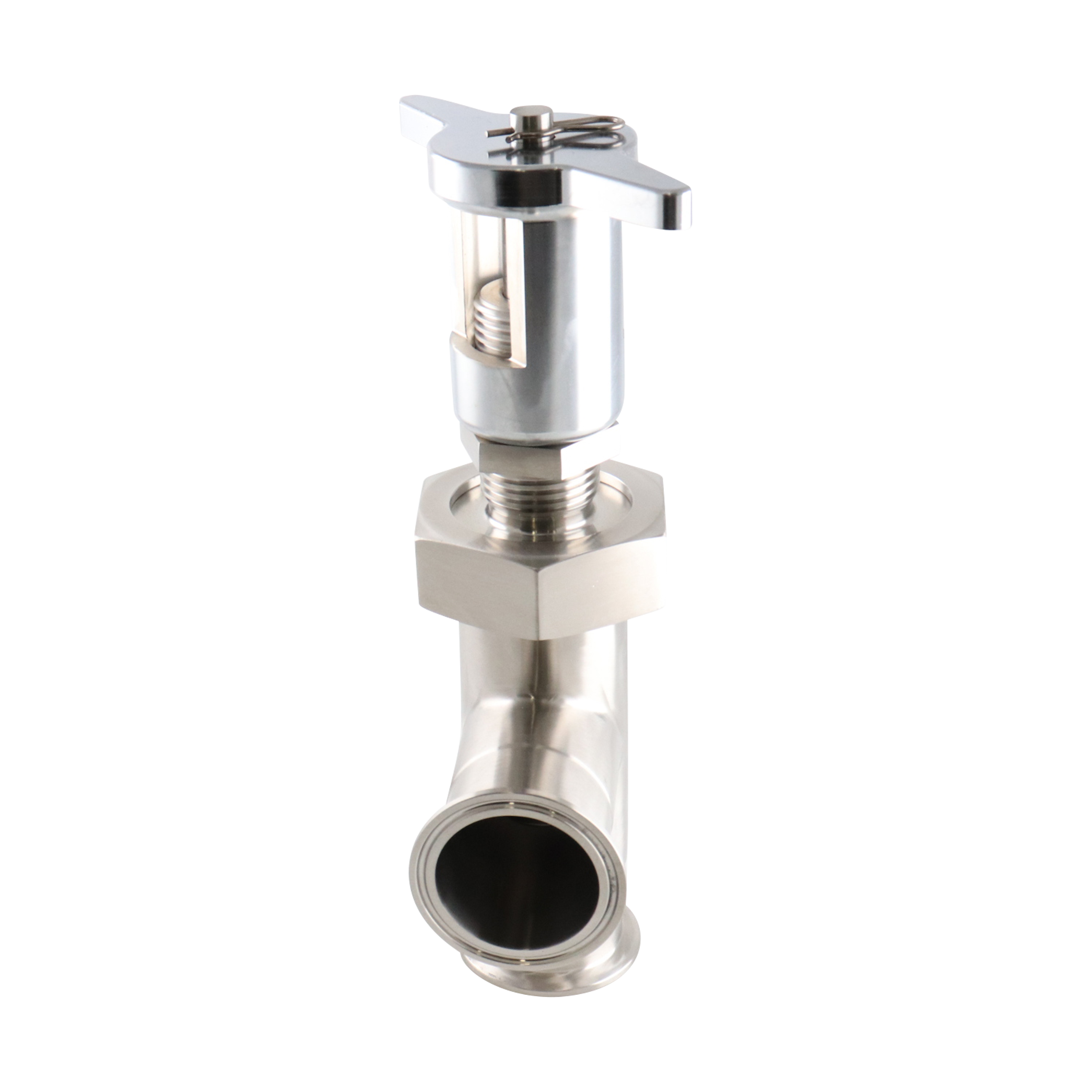

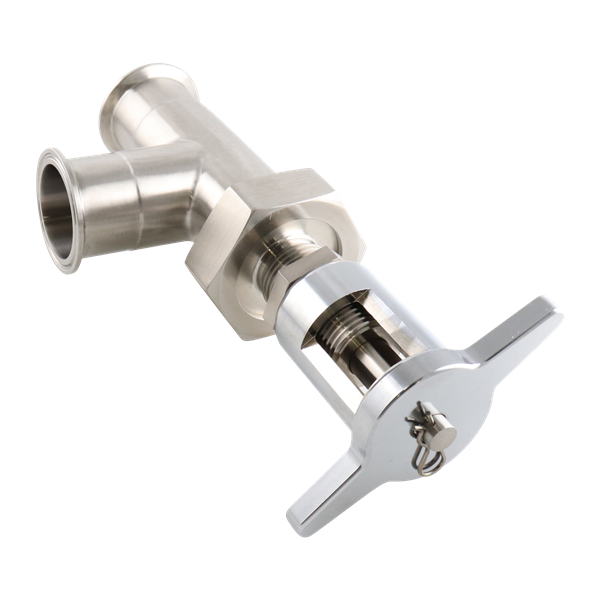

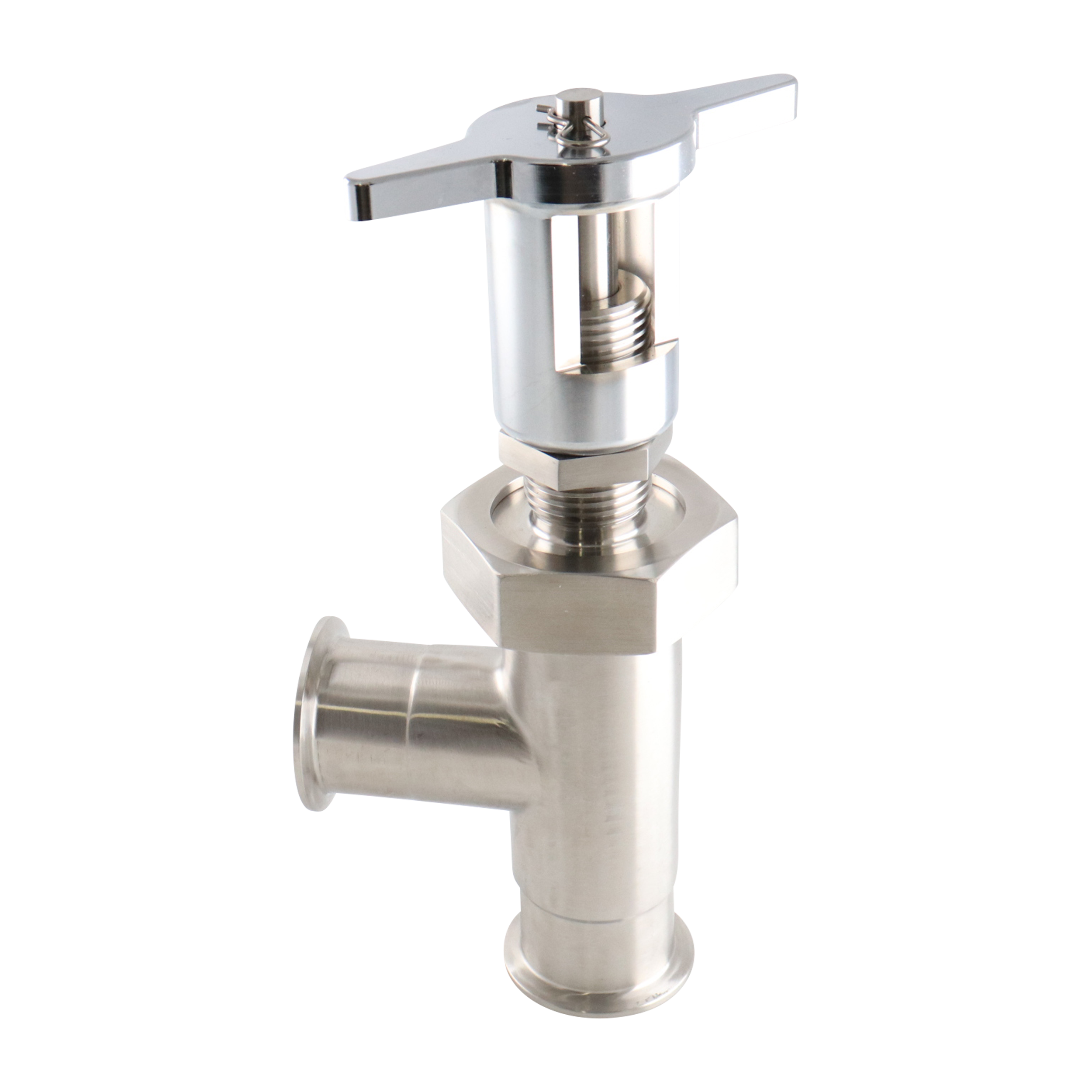

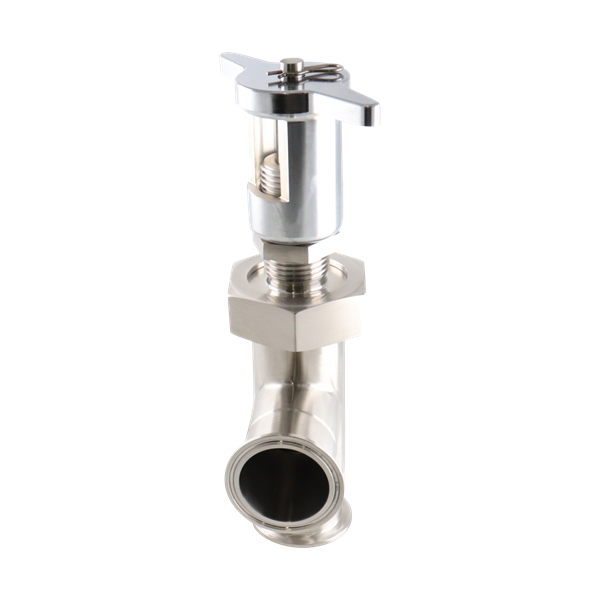

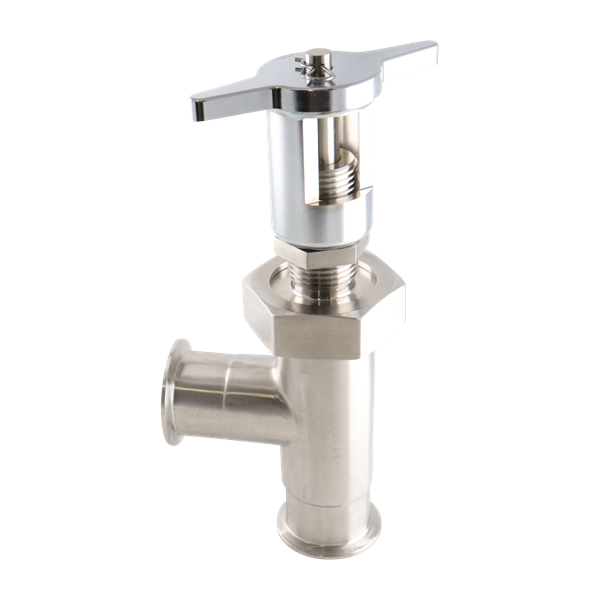

Alfa Laval D60RTHMP Relief Valve 2" Tri-Clamp 316L Buna C Spring 50-70 PSI
D60RTHMP-2-C-316
- MPN:
- 200188
Net Price: $3,031.57 / EA
- Availability:
Spare Parts
- Total: 2
| Product | Availability |
Price
|
||
|---|---|---|---|---|
| Alfa Laval Gasket for 2" Buna D60RTHMP Relief Valve |
$19.39 / EA |
|
||
| Alfa Laval O-Ring 1.5" 2" 2.5" Buna for D60RTHMP Relief Valve |
$1.79 / EA |
|
- Total: 2
Suggested products
Attributes
| Brand | Alfa Laval |
|---|---|
| Product Type | Valves |
| Product Subtype | Pressure Relief Valves |
| Series | D60 Series |
| Model | D60RTHMP |
| Material | 316L Stainless Steel |
| Size 1 | 2" |
| Connection Type 1 | Tri-Clamp |
| Weight | 8.65000 |
- Manufacturer:
- Alfa Laval Inc
- MPN:
- 200188
Dimensional Data
D60RTHMP Pressure Relief Valve
| Nominal Size | A | B (min) | B (max) | ||||
|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 2.38 | 60.45 | 5.38 | 136.65 | 6.50 | 165.10 |
| 1½ | 38.10 | 2.75 | 69.85 | 7.38 | 187.45 | 9.00 | 228.60 |
| 2 | 50.80 | 3.50 | 88.90 | 7.63 | 193.80 | 9.63 | 244.60 |
| 2½ | 63.50 | 3.50 | 88.90 | 9.88 | 250.95 | 12.00 | 304.80 |
| 3 | 76.20 | 3.75 | 95.25 | 11.13 | 282.70 | 13.88 | 352.55 |
Resources
0Data Sheets
Alfa Laval D60RTHMP Data Sheet
5Spare Part Lists
Videos
