Alfa Laval

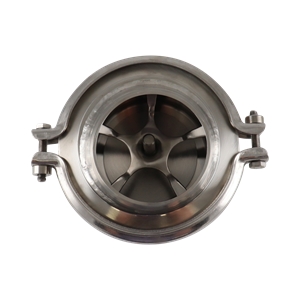

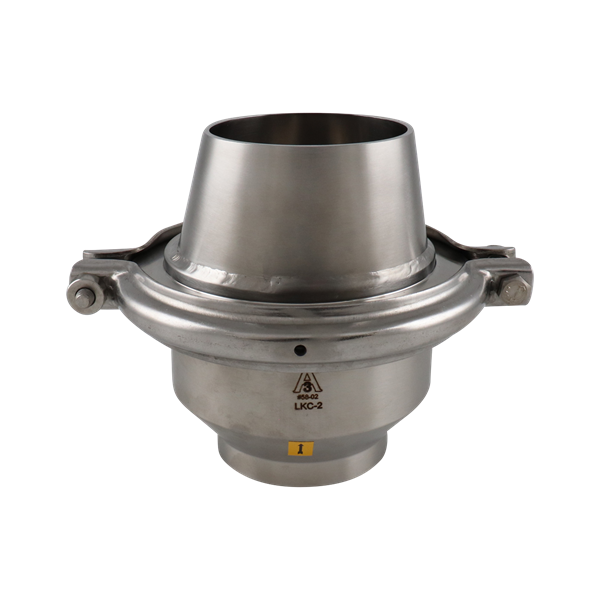

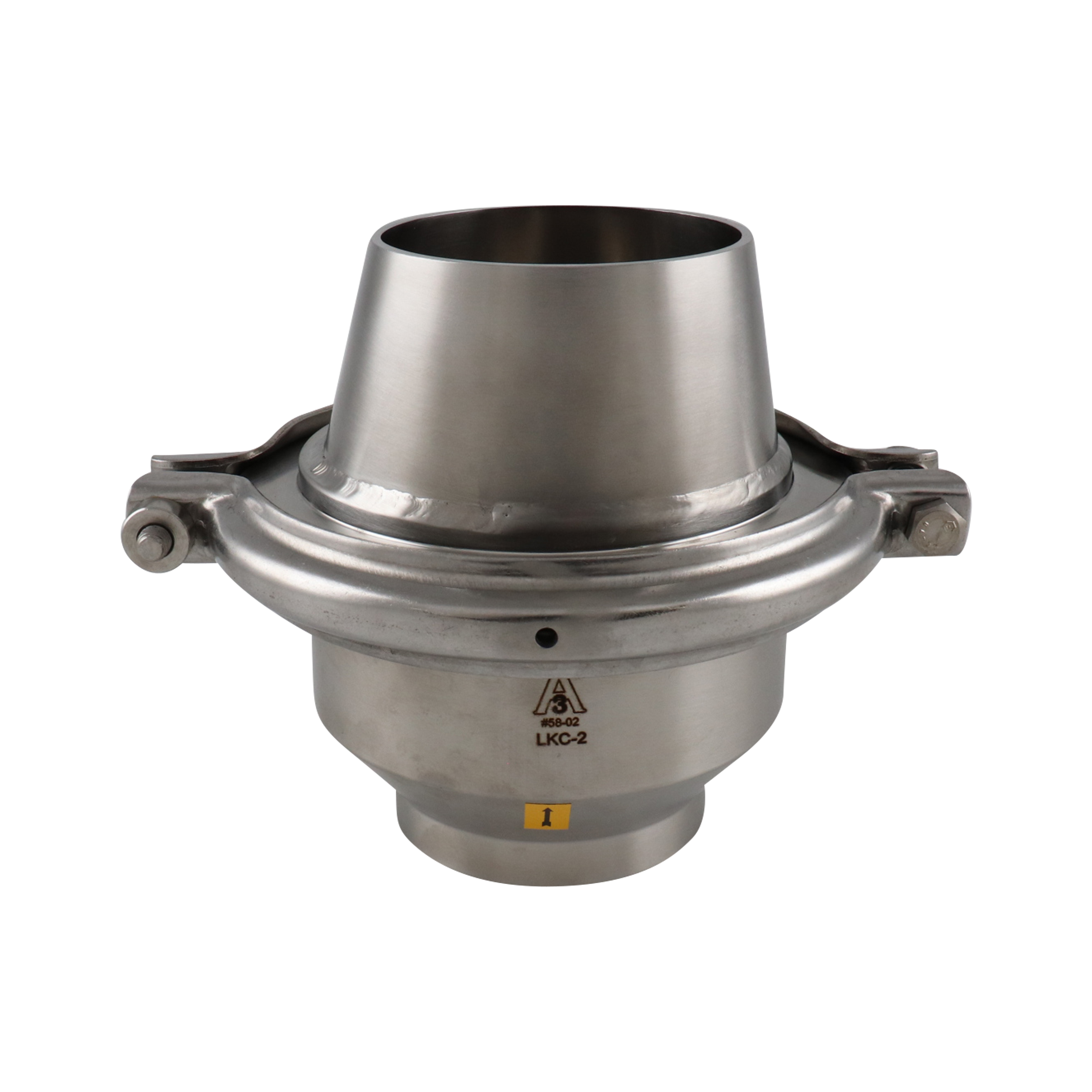

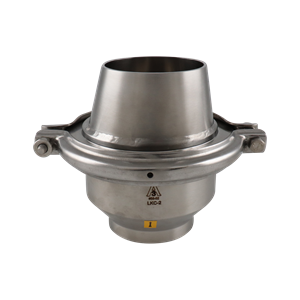

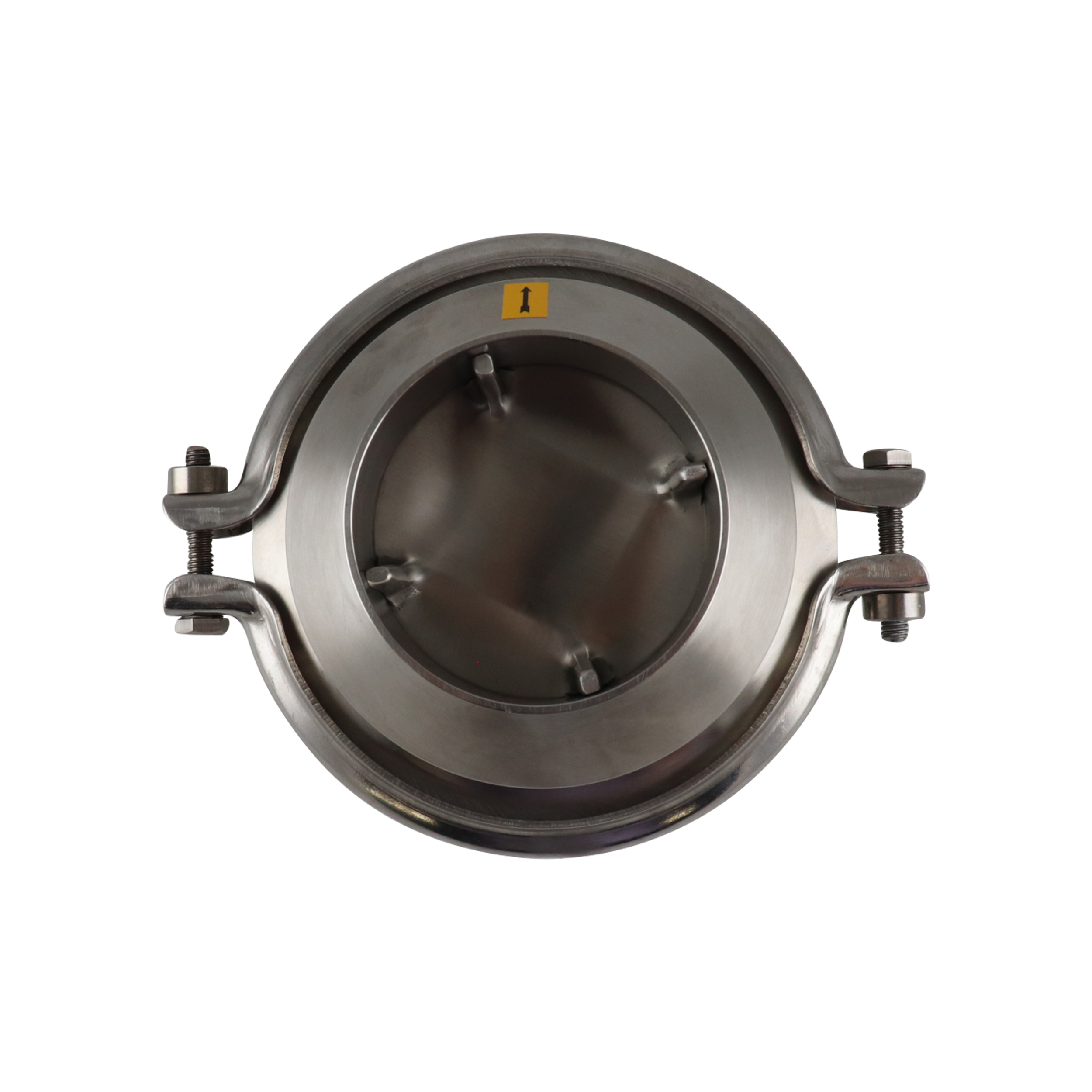

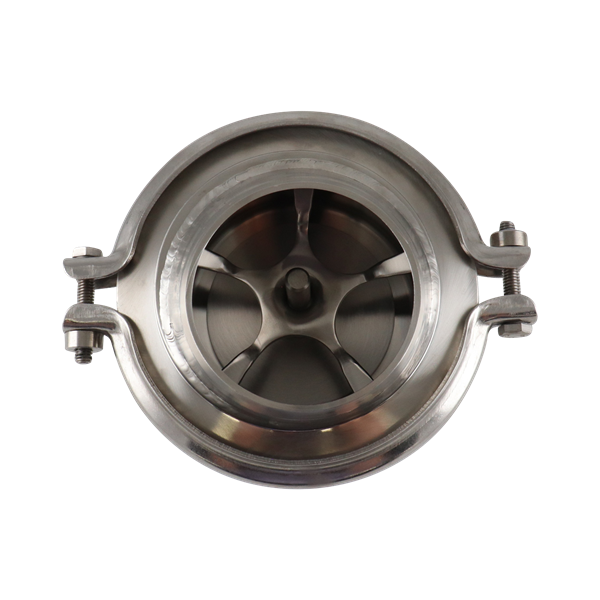

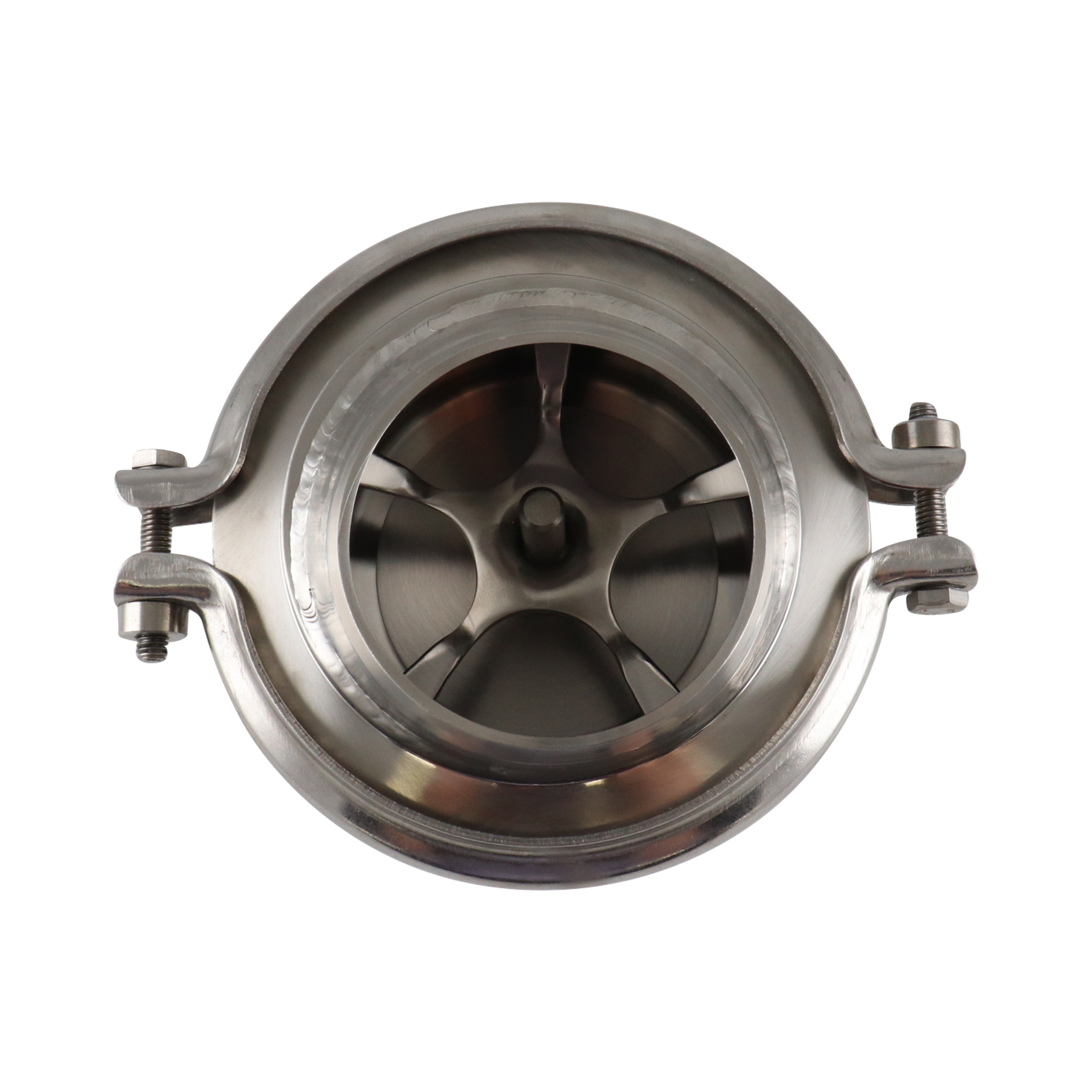

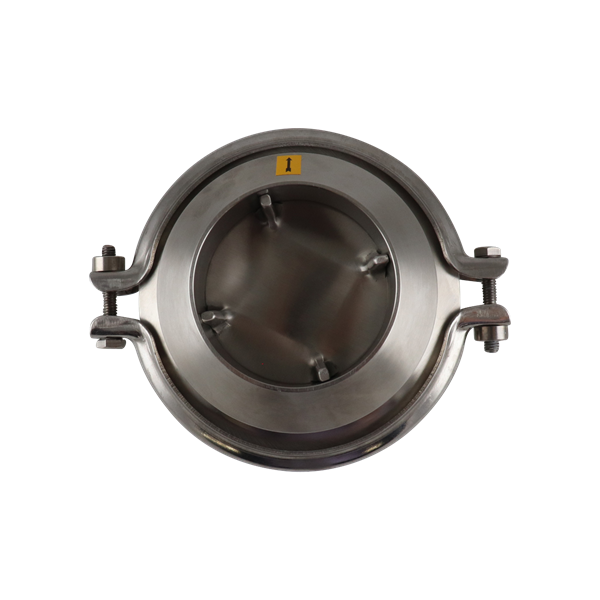

SPRING CHECK VALVE HORIZONTAL 2.5" BW 316
LKC-DRAIN-W-2.5-316
- MPN:
- 88234495
Net Price: $2,424.91 / EA
This item is non-returnable.
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | Alfa Laval |
|---|---|
| Product Type | Valves |
| Product Subtype | Check Valves |
| Series | LKC Series |
| Material | 316L Stainless Steel |
| Size 1 | 2.5" |
| Connection Type 1 | Butt Weld |
| Orientation / Mount | Horizontal |
| Weight | 5.90000 |
- Manufacturer:
- Alfa Laval Inc
- MPN:
- 88234495
Dimensional Data
LKC-2 Drainable Butt Weld Non-Return Check Valve
| Nominal Size | A | B | C | ||||
|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 3.76 | 95.50 | 3.23 | 82.04 | 0.34 | 8.64 |
| 1½ | 38.10 | 3.41 | 86.61 | 3.75 | 95.25 | 0.40 | 10.16 |
| 2 | 50.80 | 4.17 | 105.92 | 4.29 | 108.97 | 0.41 | 10.41 |
| 2½ | 63.50 | 4.81 | 122.17 | 5.39 | 136.91 | 0.53 | 13.46 |
| 3 | 76.20 | 5.69 | 144.53 | 5.83 | 148.08 | 0.65 | 16.51 |
Resources
0Data Sheets
Alfa Laval LKC Data Sheet
1Manuals
5Spare Part Lists
Videos
