WILDEN PS1520 DIAPHRAGM PUMP PROFLO SWITCH ATEX BOLTED METAL SS WETTED PATH ALUM AIR PATH 3" NPT FULL STROKE PTFE DIAPHRAGMS WITH WILFLEX BACKUP DIAPHRAGMS PTFE VALVE BALLS SS VALVE SEATS PTFE O-RINGS AODD

XPS1520SSAAATWSTFSTF

USUALLY SHIPS IN 1-3 DAYS

Net Price: $14,631.00 / EA

Have an account? Login now.

Availability:
  • Total: 2
Product Availability
Price
WILDEN REPAIR KIT AIR 3" 4" ORIGINAL METAL

$977.60 / EA

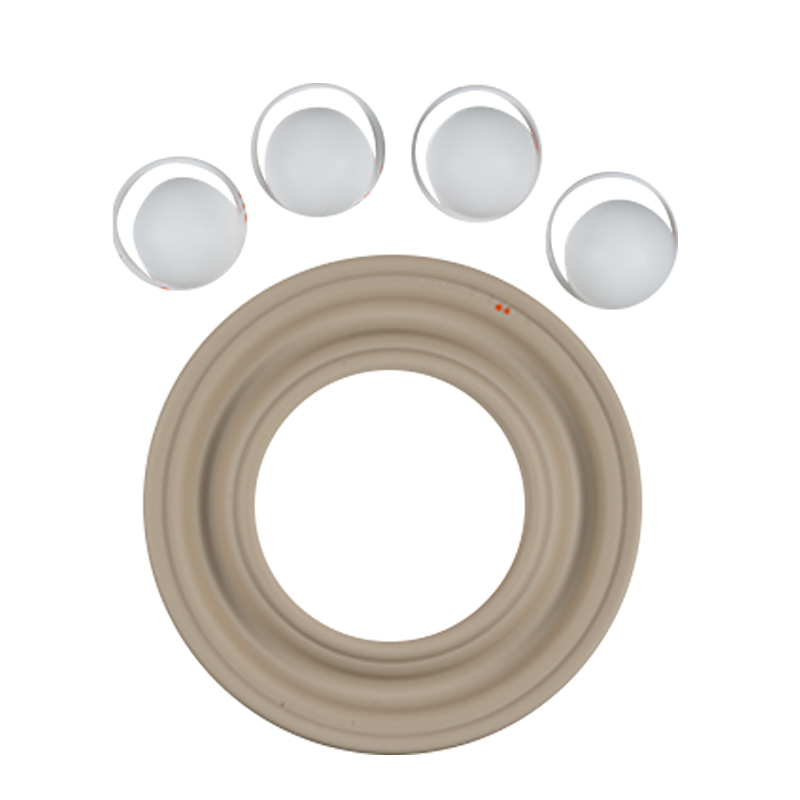

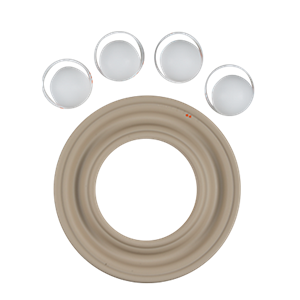

WILDEN REPAIR KIT WET 3" ADVANCED ALUMINUM PTFE

$3,631.10 / EA

  • Total: 2
Brand Wilden
Product Type Pumps
Product Subtype Diaphragm Pumps
Series Pro-Flo Shift Series
Model PS1520
Material Aluminum
Size 1 3"
Connection Type 1 NPT
Size 2 3"
Connection Type 2 NPT
Diaphragm Material PTFE (Teflon)
Weight 278.00000

PS1520 Dimensional DiagramPS1520 Dimensional Diagram.2

PS1520 Dimensional Diagram
A B C D E F G H J K L
(in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm)
25.0 635 2.4 61 16.8 426 29.9 759 32.2 818 3.3 84 16.3 414 1.9 48 8.3 211 7.4 189 28.4 720
