All-Flo

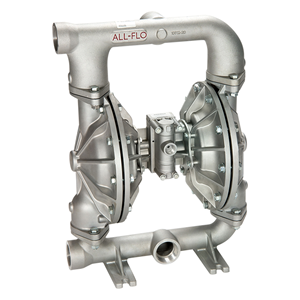

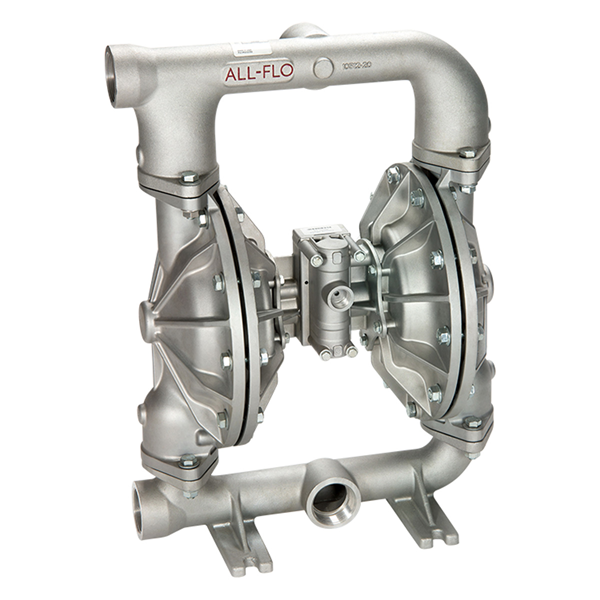

ALL-FLO A200 DIAPHRAGM PUMP 2" NPT BOLTED METAL ALUMINUM WET SIDE ALUMINUM AIR SIDE PTFE DIAPHRAGM PTFE VALVE BALL ALUMINUM SEATS PTFE O-RINGS A SERIES AODD
A200-NAA-TTAT-B30
- MPN:
- A200-NAA-TTAT-B30
Net Price: $3,193.00 / EA
- Availability:
Spare Parts
- Total: 2
| Product | Availability |
Price
|
||
|---|---|---|---|---|
| ALL-FLO REPAIR KIT AIR 2" BOLTED ALUMINUM |
$389.70 / EA |
|
||
| ALL-FLO REPAIR KIT WET 2" BOLTED METAL PTFE |
$1,456.80 / EA |
|
- Total: 2
Suggested products
Attributes
| Brand | All-Flo |
|---|---|
| Product Type | Pumps |
| Product Subtype | Diaphragm Pumps |
| Series | A Series |
| Model | A200 |
| Material | Aluminum |
| Size 1 | 2" |
| Connection Type 1 | NPT |
| Diaphragm Material | PTFE (Teflon) |
| Weight | 75.00000 |
- Manufacturer:
- All-Flo
- MPN:
- A200-NAA-TTAT-B30
Dimensional Data
Air-Operated Double-Diaphragm Pump (Bolted) | A200
| Size | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 2.00 | 50.80 | 24.80 | 629.92 | 14.00 | 355.60 | 1.90 | 48.26 | 10.00 | 254.00 | 19.60 | 497.84 | 2.40 | 60.96 | 26.30 | 668.02 | 13.50 | 342.90 | 0.70 | 17.78 | 10.00 | 254.00 | 9.00 | 228.60 | 4.00 | 101.60 | 1.80 | 45.72 | 5.40 | 137.16 | 10.00 | 254.00 | 12.30 | 312.42 |
