Behringer

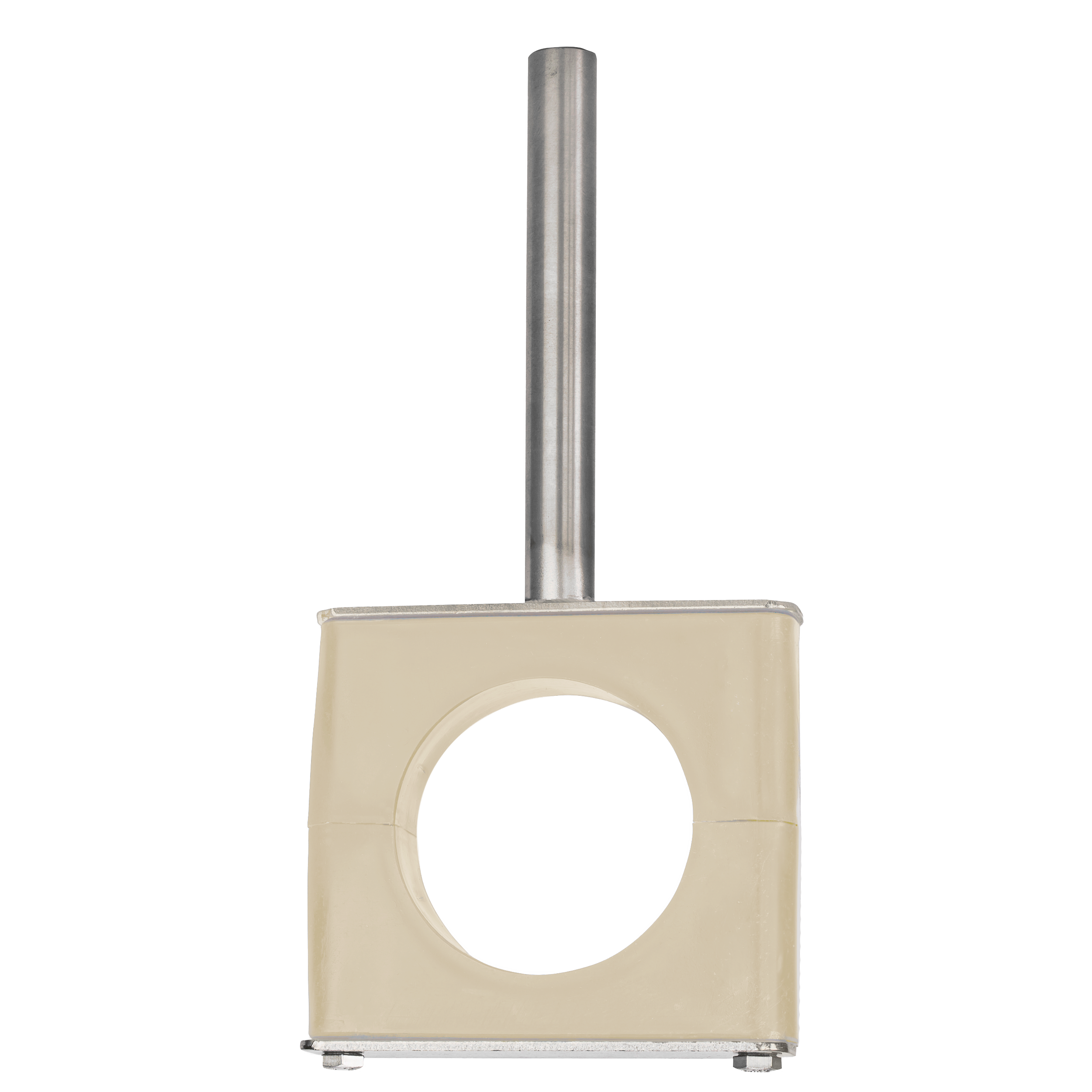

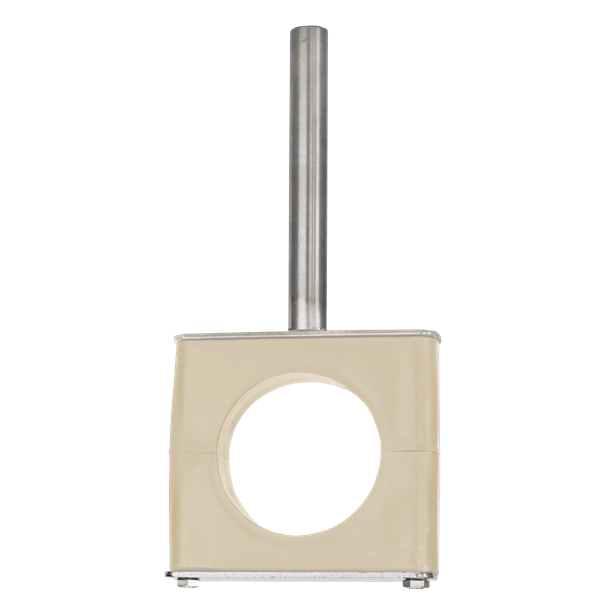

TUBE SUPPORT 6" GROUP 8 12" ROD MOUNT SANTOPRENE

RSBT8600-SP-12

Net Price: $381.08 / EA

SB Rod Mount Dimensional Diagram

Group No.	Tube OD		D		W		H		Z
	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)
3	¼	6.35	0.250	6.35	1.88	48.00	1.38	35.00	1.22	31.00
	⅜	9.53	0.375	9.53	1.88	48.00	1.38	35.00	1.22	31.00
	½	12.70	0.500	12.70	1.88	48.00	1.38	35.00	1.22	31.00
	¾	19.05	0.750	19.05	1.88	48.00	1.38	35.00	1.22	31.00
	1	25.40	1.000	25.40	1.88	48.00	1.38	35.00	1.22	31.00
6	¼	6.35	0.250	6.35	3.34	85.00	2.63	67.00	1.22	31.00
	⅜	9.53	0.375	9.53	3.34	85.00	2.63	67.00	1.22	31.00
	½	12.70	0.500	12.70	3.34	85.00	2.63	67.00	1.22	31.00
	⅝	15.88	0.625	15.88	3.34	85.00	2.63	67.00	1.22	31.00
	¾	19.05	0.750	19.05	3.34	85.00	2.63	67.00	1.22	31.00
	⅞	22.23	0.875	22.23	3.34	85.00	2.63	67.00	1.22	31.00
	1	25.40	1.00	25.40	3.34	85.00	2.63	67.00	1.22	31.00
	1¼	31.75	1.250	31.75	3.34	85.00	2.63	67.00	1.22	31.00
	1½	38.10	1.500	38.10	3.34	85.00	2.63	67.00	1.22	31.00
	2	50.80	2.000	50.80	3.34	85.00	2.63	67.00	1.22	31.00
7	2	50.80	2.000	50.80	5.00	128.00	4.38	111.00	1.22	31.00
	2½	63.50	2.500	63.50	5.00	128.00	4.38	111.00	1.22	31.00
	3	76.20	3.000	76.20	5.00	128.00	4.38	111.00	1.22	31.00
	3½	88.90	3.500	88.90	5.00	128.00	4.38	111.00	1.22	31.00
7A	4	101.60	4.000	101.60	5.77	147.00	4.80	122.00	1.22	31.00
8	6	152.40	6.000	152.40	8.88	226.00	7.65	194.00	1.50	38.00
