TrueClean®

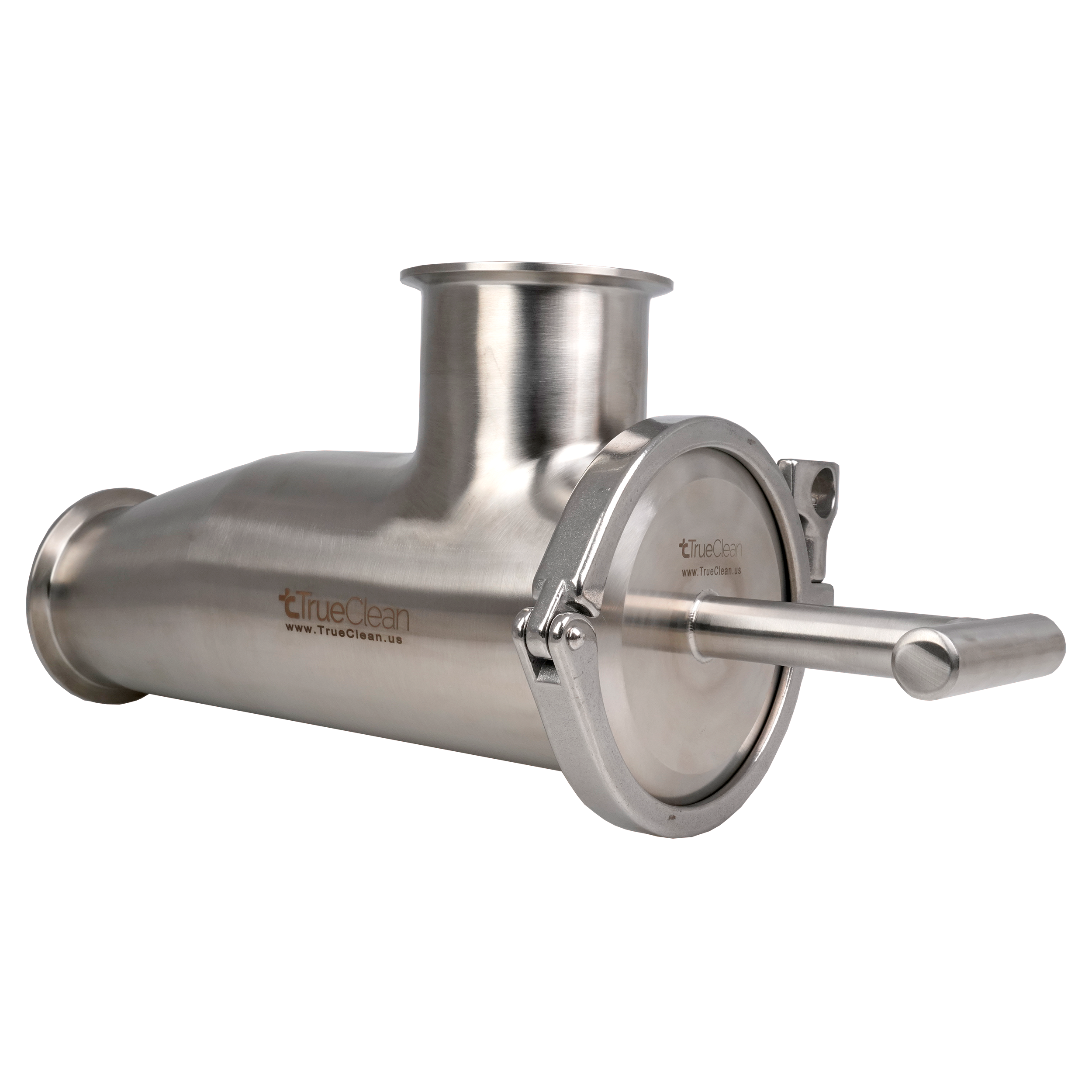

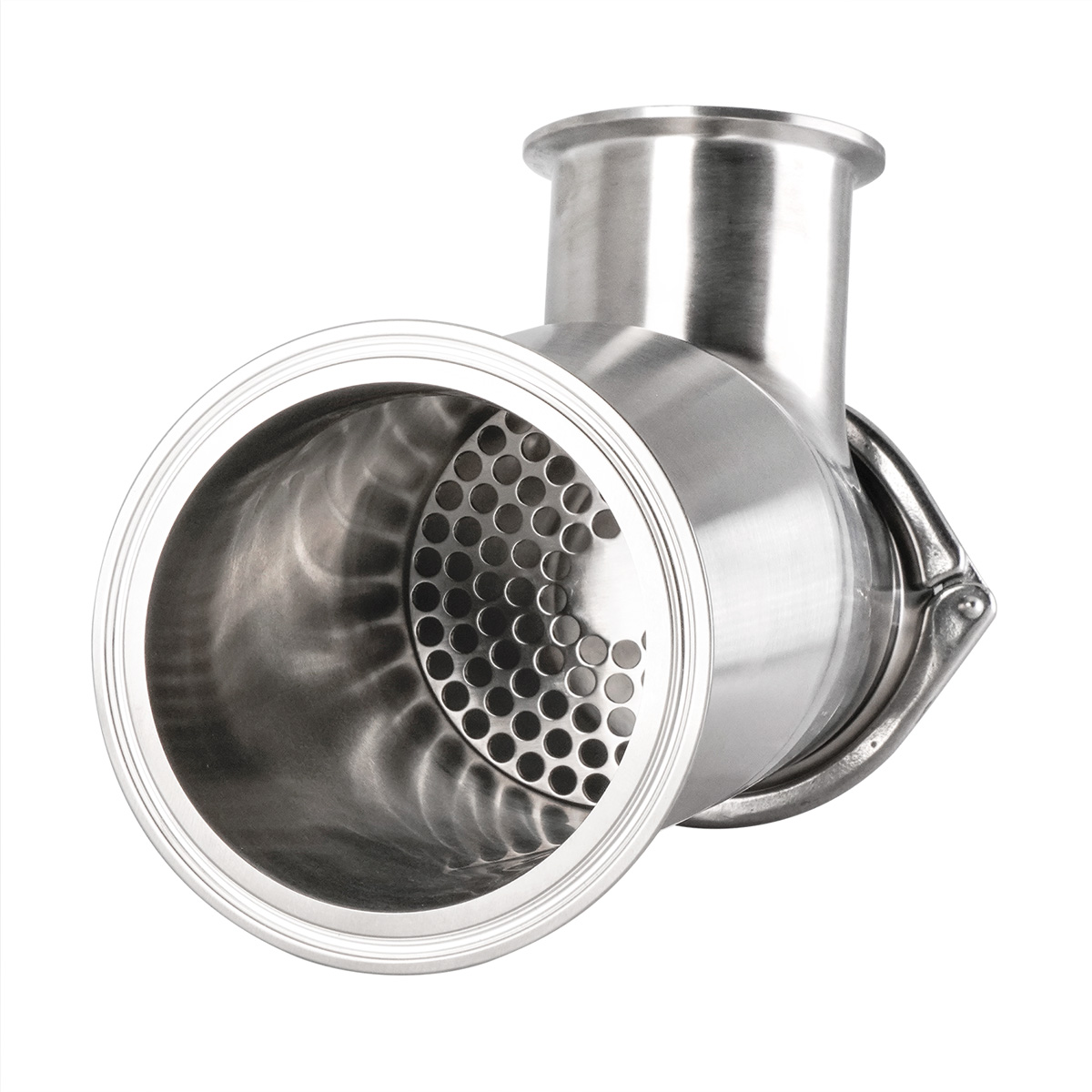

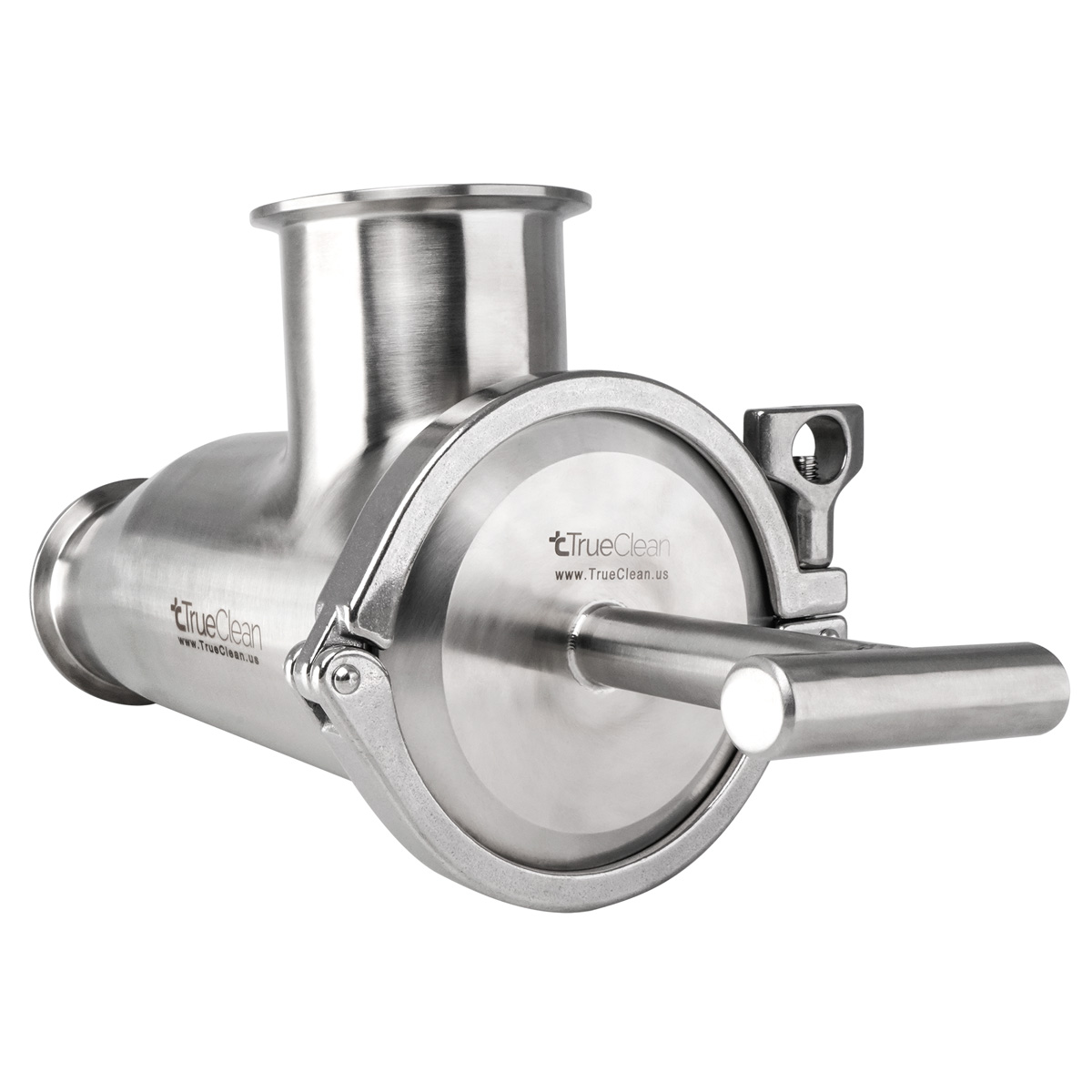

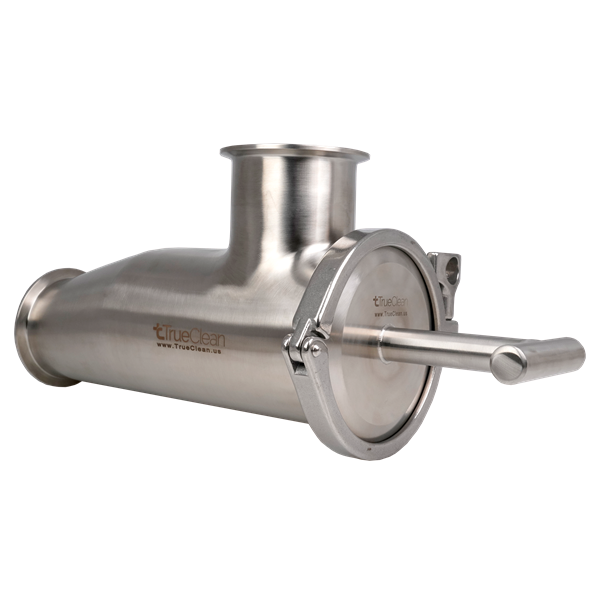

TrueClean Magnetic Strainer 1.5" Tri-Clamp 316L 32Ra ID 32Ra OD EPDM 0.125" Perforation
TMS-15M1P-E-316L-7
Net Price: $1,400.00 / EA
This item is non-returnable.
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | TrueClean® |
|---|---|
| Product Type | Filters and Strainers |
| Product Subtype | Magnetic Strainers |
| Material | 316L Stainless Steel |
| Finish | 32Ra ID / 32Ra OD |
| Elastomer | EPDM |
| Size 1 | 1.5" |
| Connection Type 1 | Tri-Clamp |
| Weight | 0.00000 |
Dimensional Data
Magnetic Strainer | TMS
| Size | A | B | C | D | |||||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1.50 | 38.10 | 18.00 | 457.20 | 9.88 | 250.95 | 4.38 | 111.25 | 5.38 | 136.65 |
| 2.00 | 50.80 | 14.13 | 358.90 | 7.88 | 200.15 | 4.13 | 104.90 | 5.38 | 136.65 |
| 2.50 | 63.50 | 17.13 | 435.10 | 10.63 | 270.00 | 5.13 | 130.30 | 5.38 | 136.65 |
| 3.00 | 76.20 | 15.38 | 390.65 | 8.63 | 219.20 | 4.88 | 123.95 | 5.38 | 136.65 |
| 4.00 | 101.60 | 11.50 | 292.10 | 4.75 | 120.65 | 4.75 | 120.65 | 5.38 | 136.65 |
TrueClean Magnetic Strainer Data Sheet
