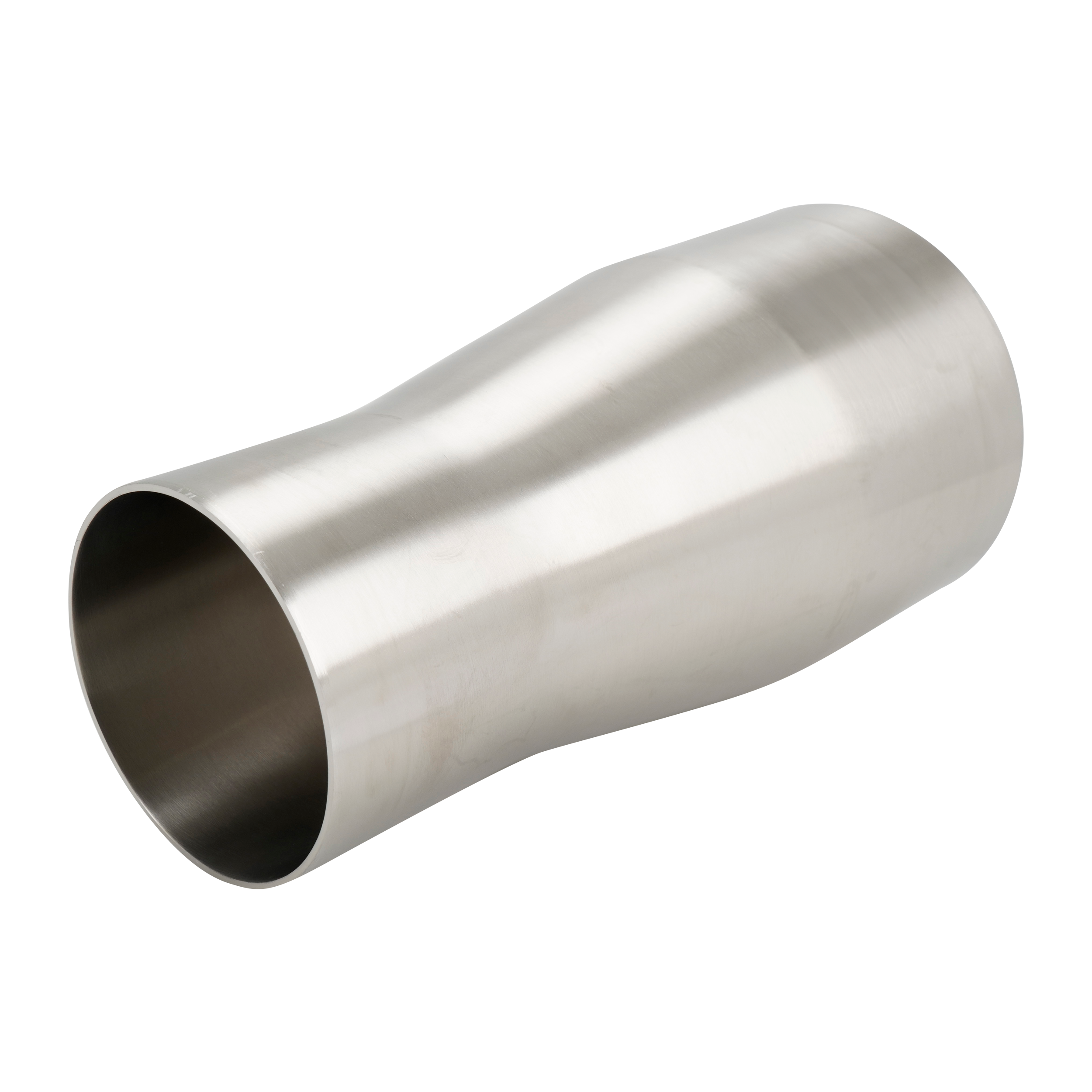

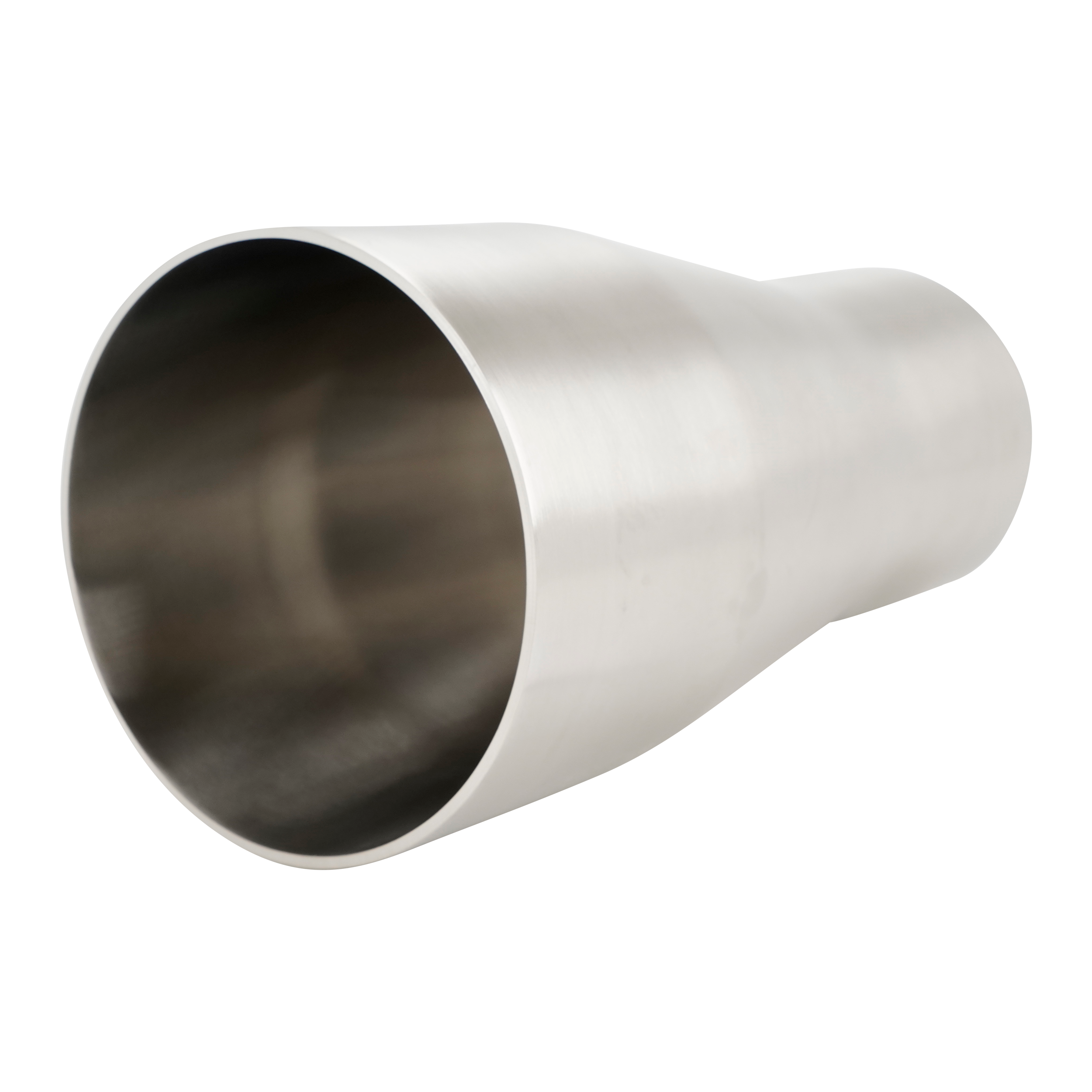

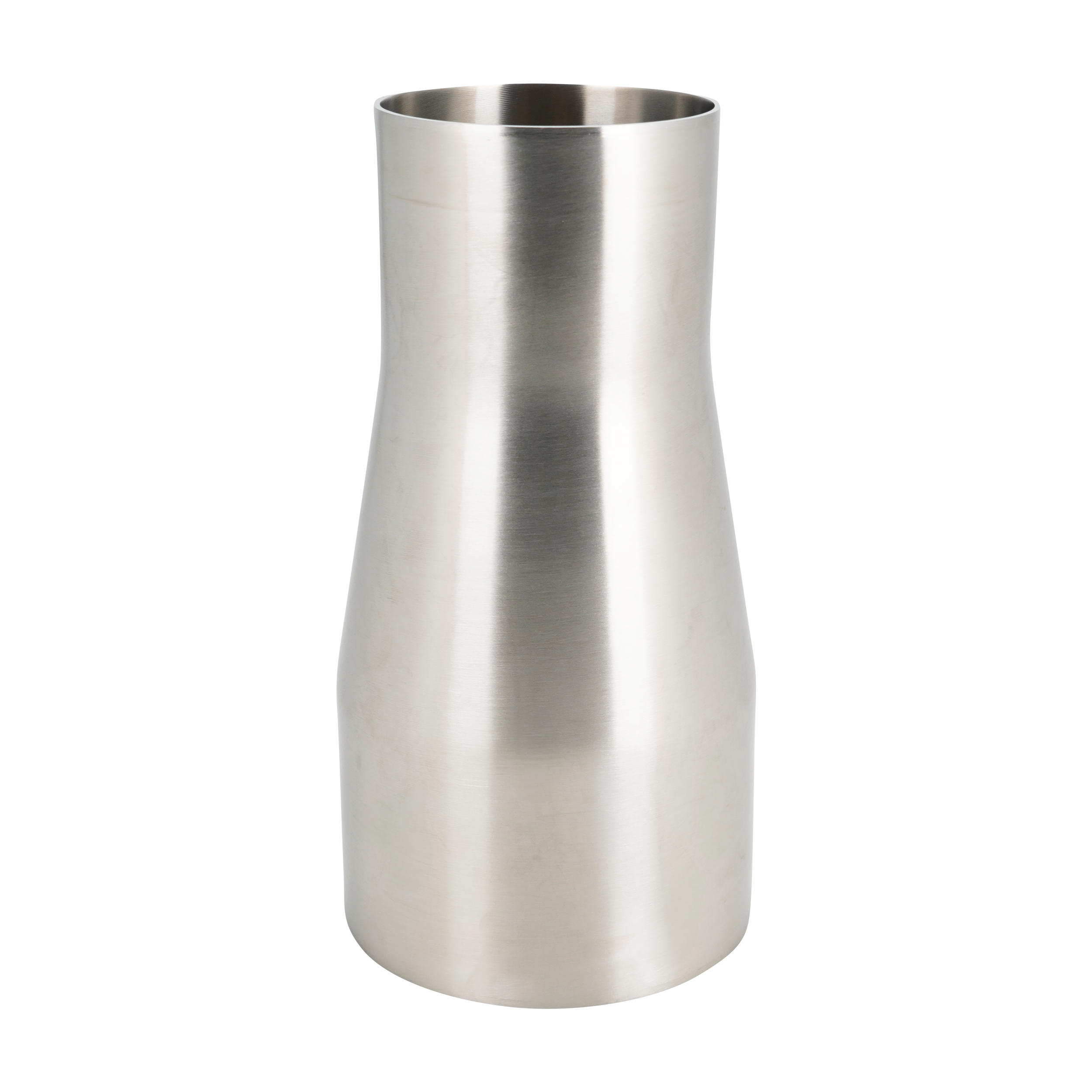

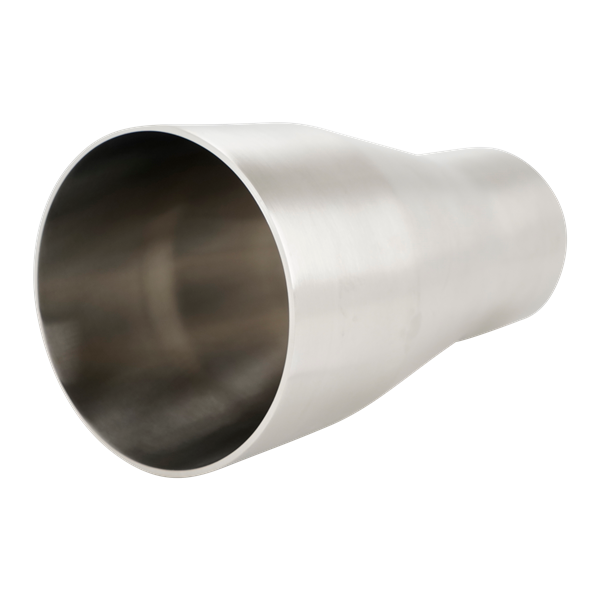

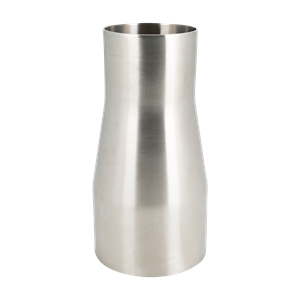

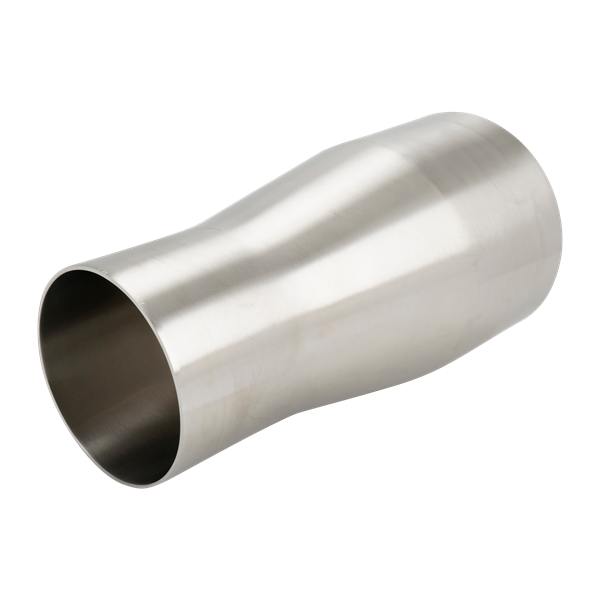

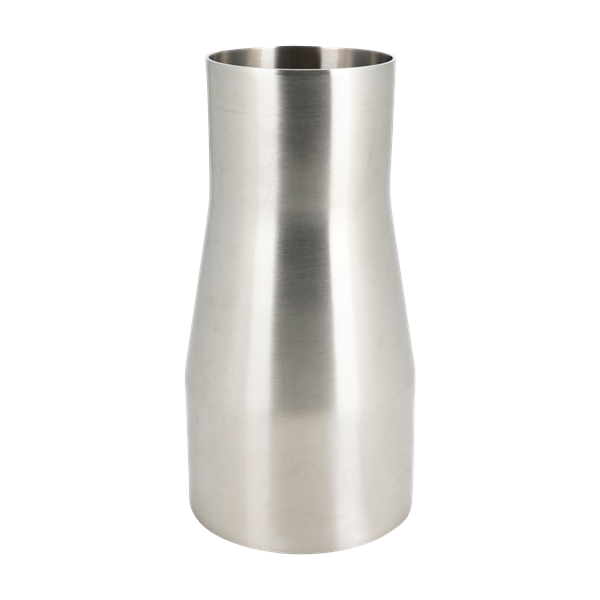

CONCENTRIC REDUCER 4X3 BW 316L 7.75" OAL 15RA EP ID 32RA OD SF4
B31-4X3-316L-PM
Net Price: $195.40 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Concentric Reducers |
| Material | 316L Stainless Steel |
| Finish | 15Ra EP ID / 32Ra OD |
| Size 1 | 4" |
| Connection Type 1 | Butt Weld |
| Size 2 | 3" |
| Connection Type 2 | Butt Weld |
| Length | 7.75" OAL |
| Fitting Design | B31 |
| Weight | 3.20000 |
Dimensional Data
Concentric Butt Weld Reducers | B31-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| ¾ x ½ | 19.05 x 12.70 | 4.00 | 101.60 |
| 1 x ½ | 25.40 x 12.70 | 4.50 | 114.30 |
| 1 x ¾ | 25.40 x 19.05 | 4.00 | 101.60 |
| 1½ x ½ | 38.10 x 12.70 | 5.50 | 139.70 |
| 1½ x ¾ | 38.10 x 19.05 | 5.00 | 127.00 |
| 1½ x 1 | 38.10 x 25.40 | 5.00 | 127.00 |
| 2 x ½ | 50.80 x 12.70 | 4.50 | 114.30 |
| 2 x ¾ | 50.80 x 19.05 | 7.25 | 184.15 |
| 2 x 1 | 50.80 x 25.40 | 7.25 | 184.15 |
| 2 x 1½ | 50.80 x 38.10 | 5.25 | 133.35 |
| 2½ x 1 | 63.50 x 25.40 | 9.25 | 234.95 |
| 2½ x 1½ | 63.50 x 38.10 | 7.25 | 184.15 |
| 2½ x 2 | 63.50 x 50.80 | 5.50 | 139.70 |
| 3 x 1 | 76.20 x 25.40 | 11.25 | 285.75 |
| 3 x 1½ | 76.20 x 38.10 | 9.25 | 234.95 |
| 3 x 2 | 76.20 x 50.80 | 7.50 | 190.50 |
| 3 x 2½ | 76.20 x 63.50 | 5.50 | 139.70 |
| 4 x 2 | 101.60 x 50.80 | 11.75 | 298.45 |
| 4 x 2½ | 101.60 x 63.50 | 9.75 | 247.65 |
| 4 x 3 | 101.60 x 76.20 | 7.75 | 196.85 |
| 6 x 3 | 152.40 x 76.20 | 10.00 | 254.00 |
| 6 x 4 | 152.40 x 101.60 | 10.00 | 254.00 |
| BPE DT-4.1.2-6 | 2009 BPE DT-10 | |||
Fittings Reference Sheet
