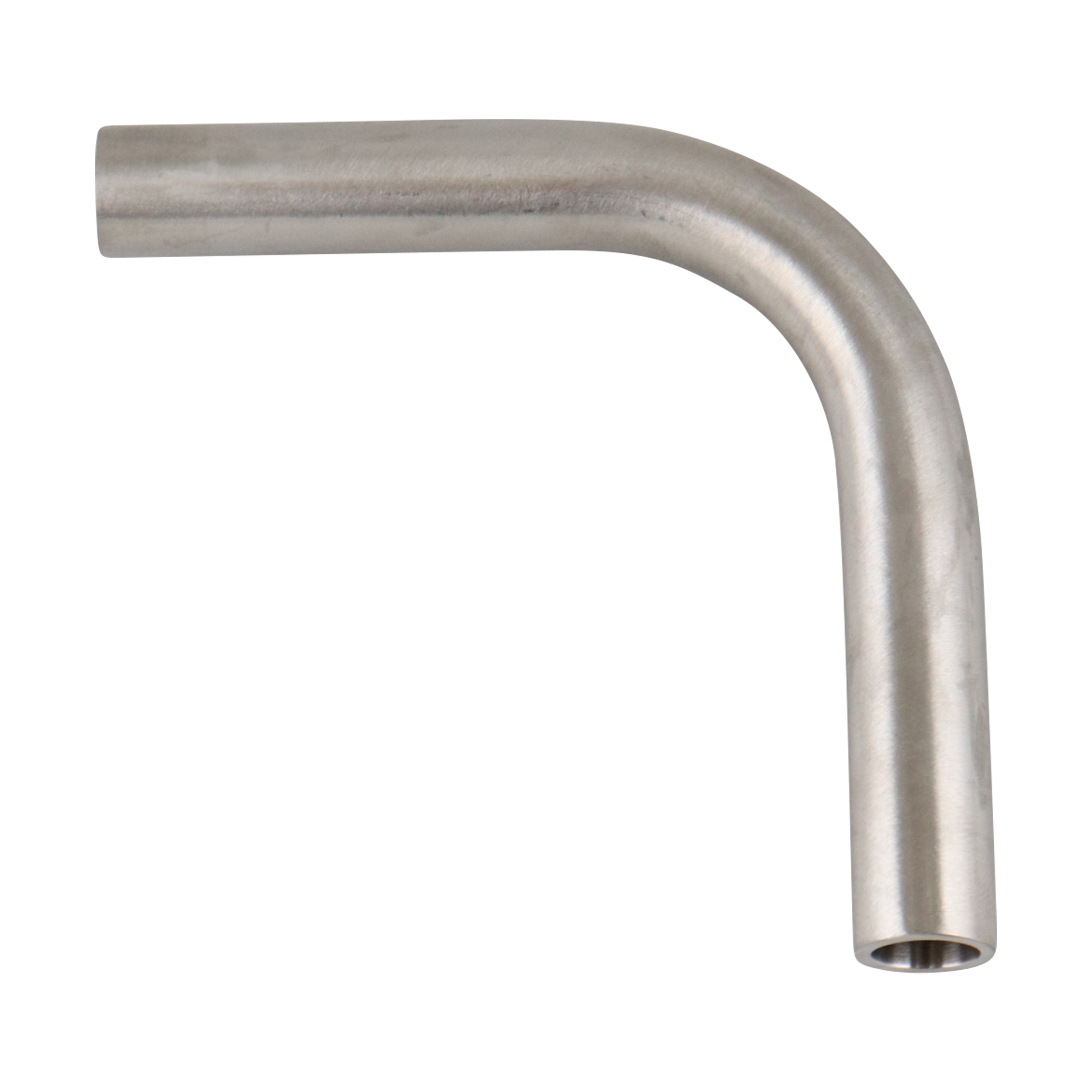

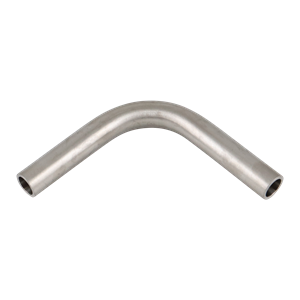

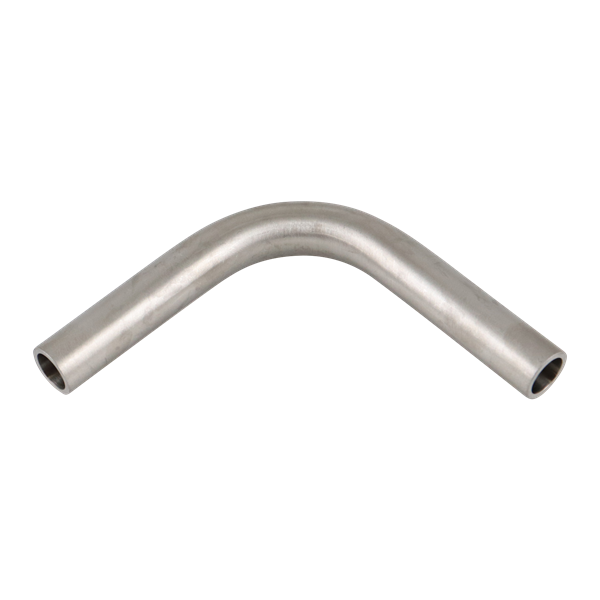

90 DEGREE ELBOW 0.75" BW 316L 20RA ID ONLY SF1 BPE
B2S-0.75-316L-PC
Net Price: $21.48 / EA
- Availability:
Spare Parts
Suggested products
- Total: 1
| Product | Availability |
Price
|
||
|---|---|---|---|---|
| 90 DEGREE ELBOW 0.75" BW 316L 20RA ID 32RA OD SF1 BPE |
$22.61 / EA |
|
- Total: 1
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Elbows |
| Material | 316L Stainless Steel |
| Finish | 20Ra ID / Mill Finish OD |
| Size 1 | 0.75" |
| Connection Type 1 | Butt Weld |
| Size 2 | 0.75" |
| Shape | 90 Degree |
| Specification / Standard | ASME BPE |
| Fitting Design | B2S |
| Weight | 0.30000 |
Dimensional Data
Resources
22D Drawings
B2S 2D Drawing
33D Models
B2S-0.75 3D Model
8Other Literature
