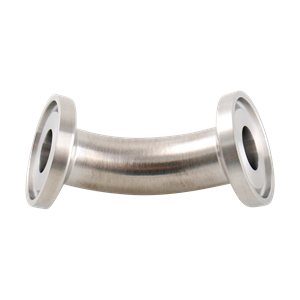

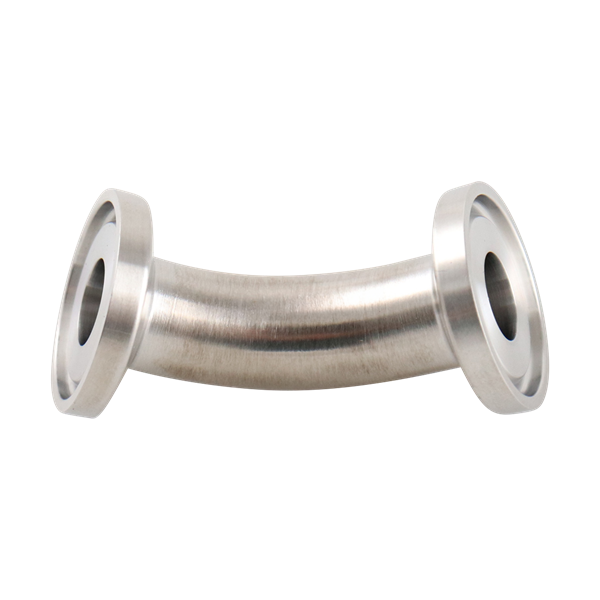

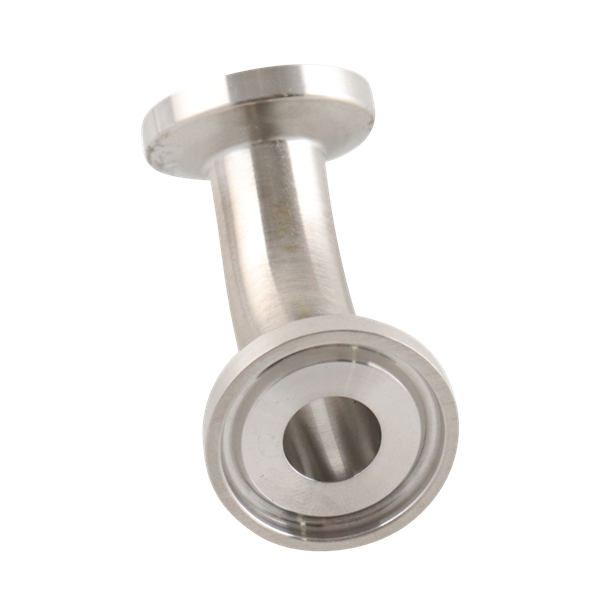

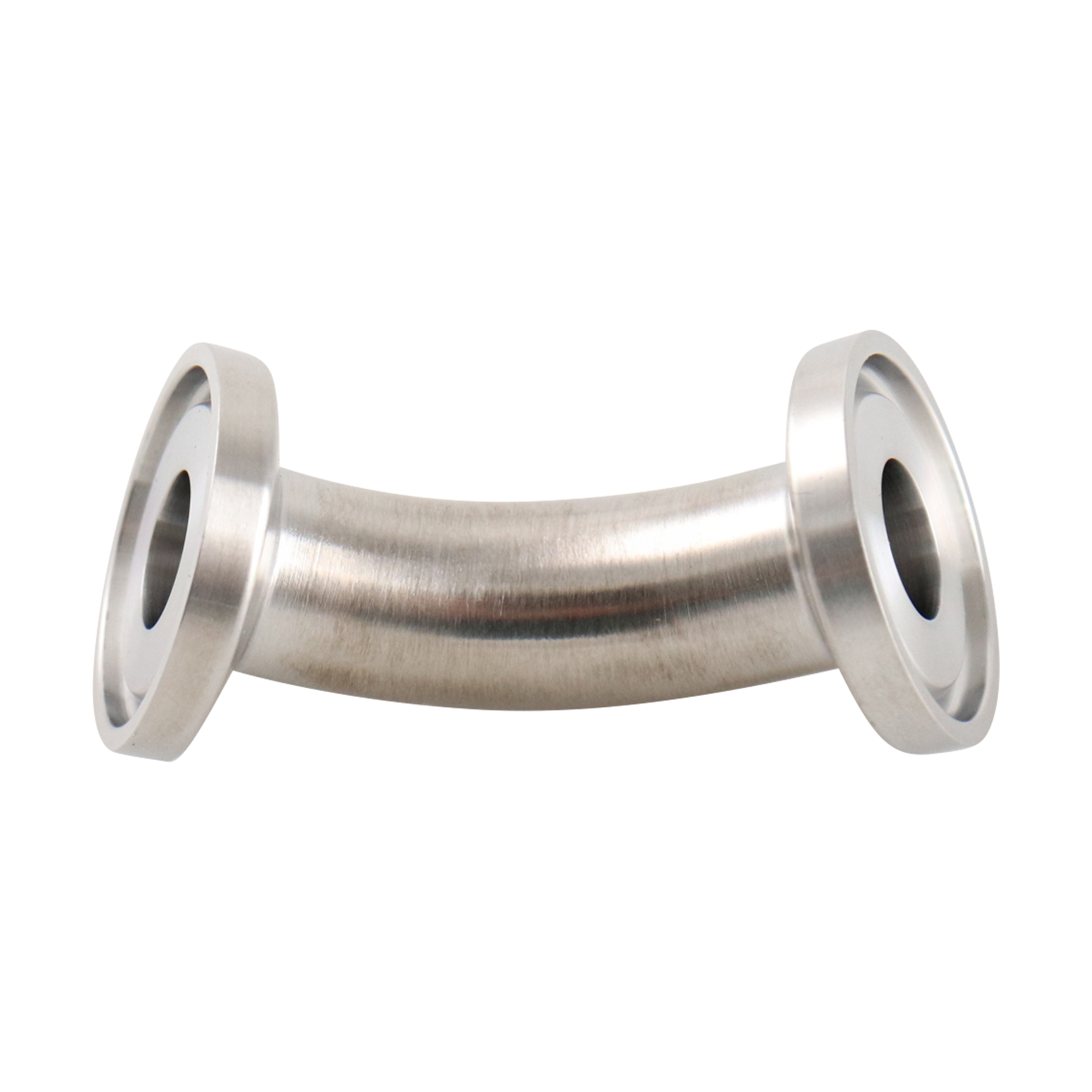

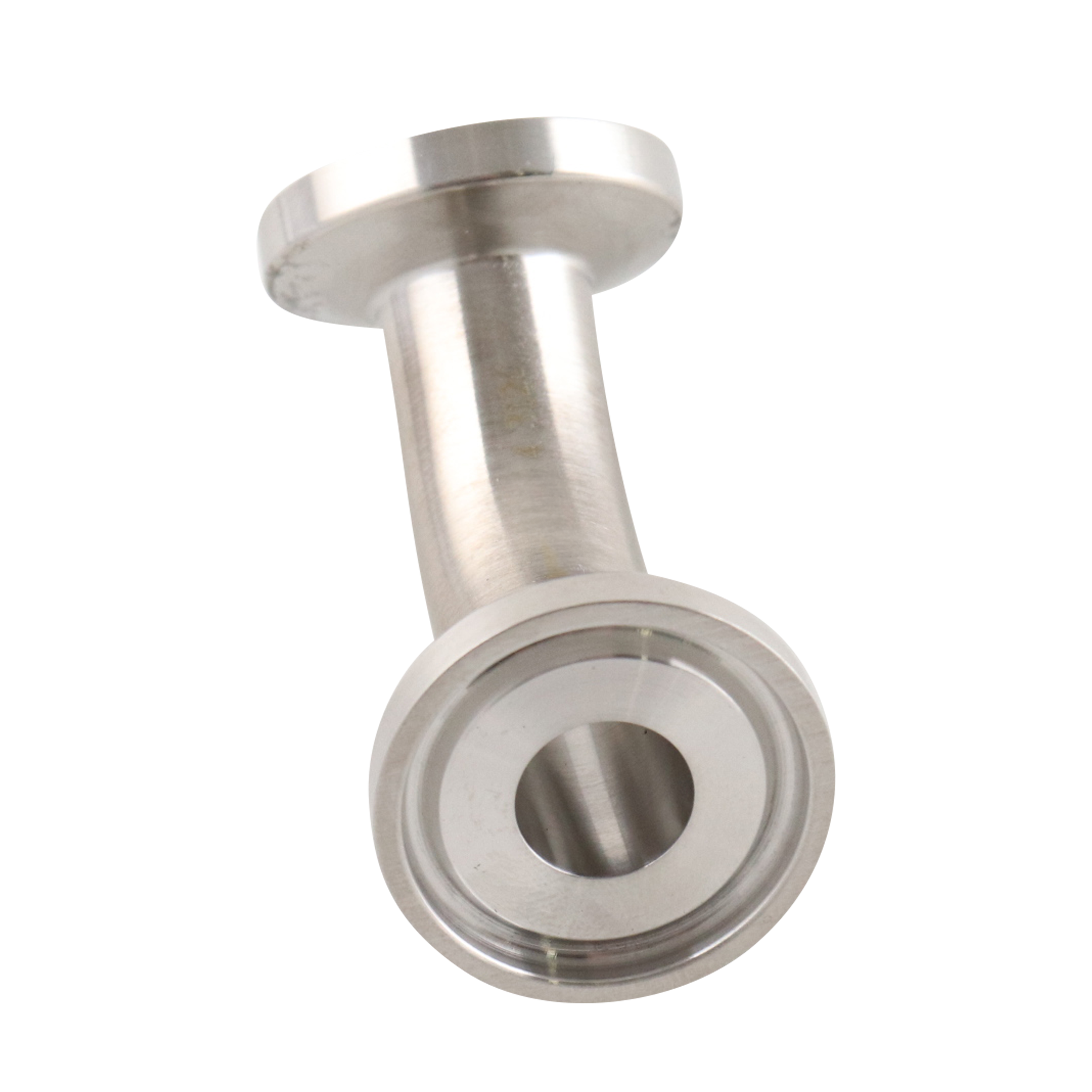

45 DEGREE ELBOW 0.5" TC 316L 15RA EP ID 32RA OD SF4 BPE
B2KMP-0.5-316L-PM
Net Price: $57.20 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Elbows |
| Material | 316L Stainless Steel |
| Finish | 15Ra EP ID / 32Ra OD |
| Size 1 | 0.5" |
| Connection Type 1 | Tri-Clamp |
| Shape | 45 Degree |
| Specification / Standard | ASME BPE |
| Fitting Design | B2KMP |
| Weight | 0.20000 |
Dimensional Data
45° Tri-Clamp Elbow | B2KMP-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| ¼ | 6.35 | 1.000 | 25.40 |
| ⅜ | 9.53 | 1.000 | 25.40 |
| ½ | 12.70 | 1.000 | 25.40 |
| ¾ | 19.05 | 1.000 | 25.40 |
| 1 | 25.40 | 1.125 | 28.58 |
| 1½ | 38.10 | 1.438 | 36.53 |
| 2 | 50.80 | 1.750 | 44.45 |
| 2½ | 63.50 | 2.063 | 52.40 |
| 3 | 76.20 | 2.375 | 60.33 |
| 4 | 101.60 | 3.125 | 79.38 |
| 6 | 152.40 | 5.250 | 133.35 |
| BPE DT-4.1.1-6 | 2009 BPE DT-17 | |||
B2KMP 2D Drawing
B2KMP-0.5 3D Model
