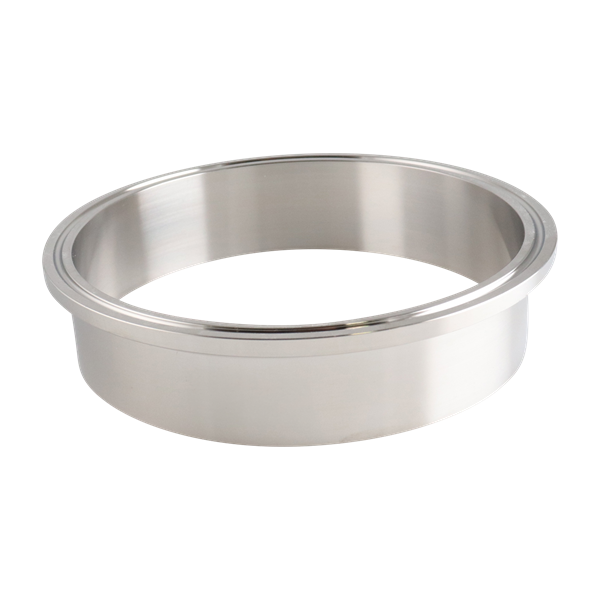

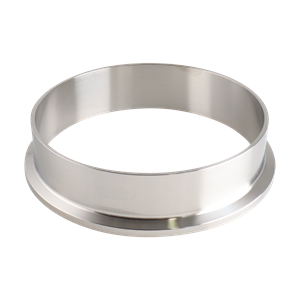

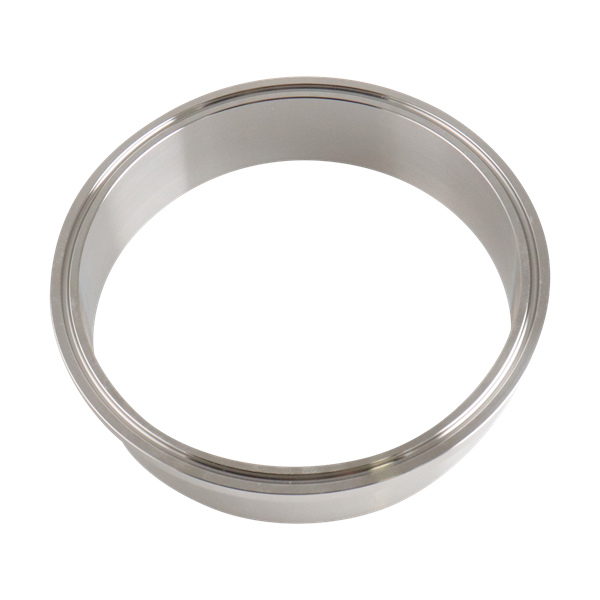

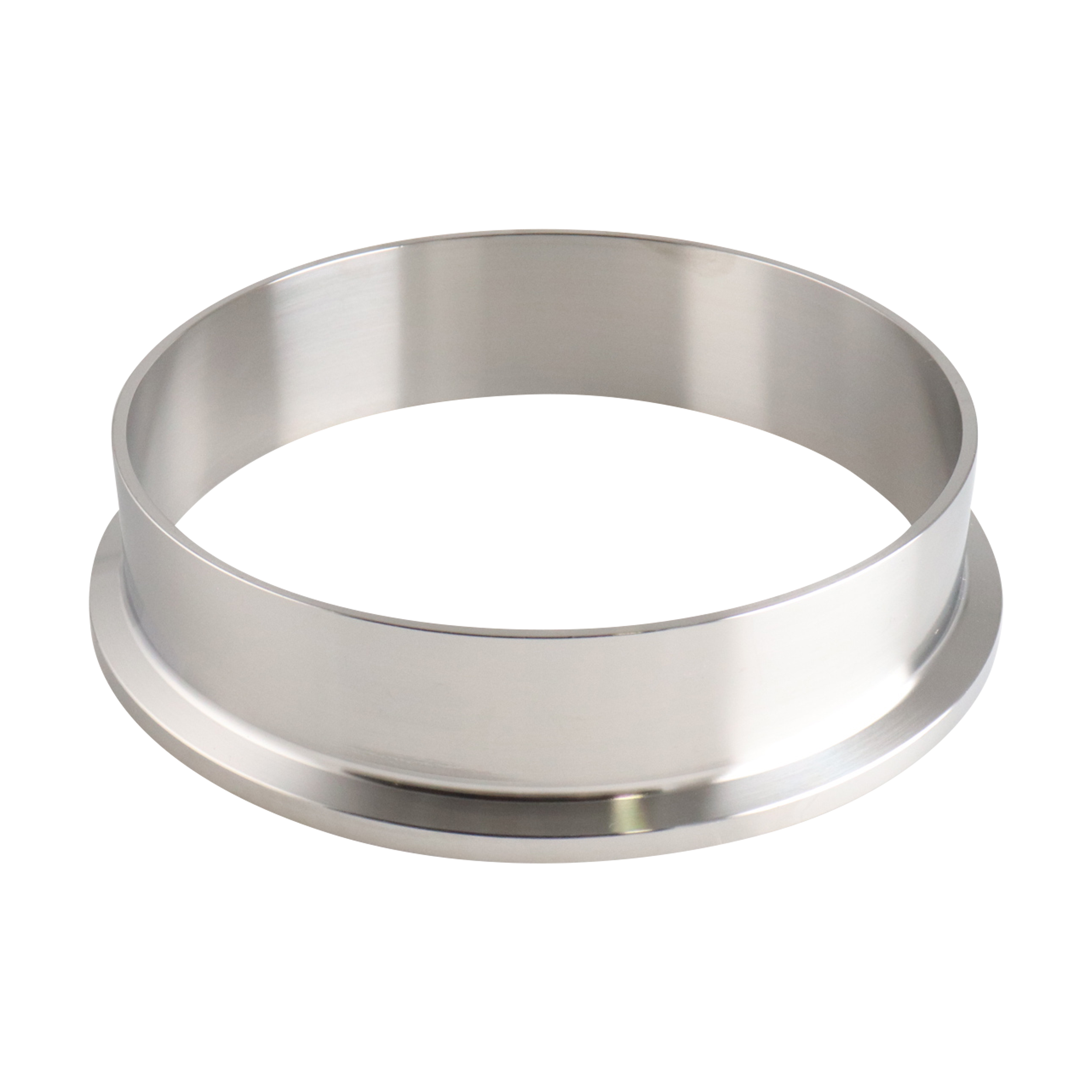

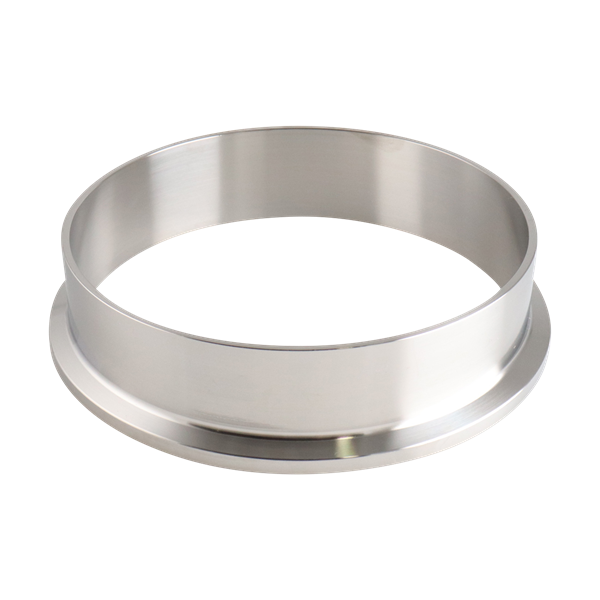

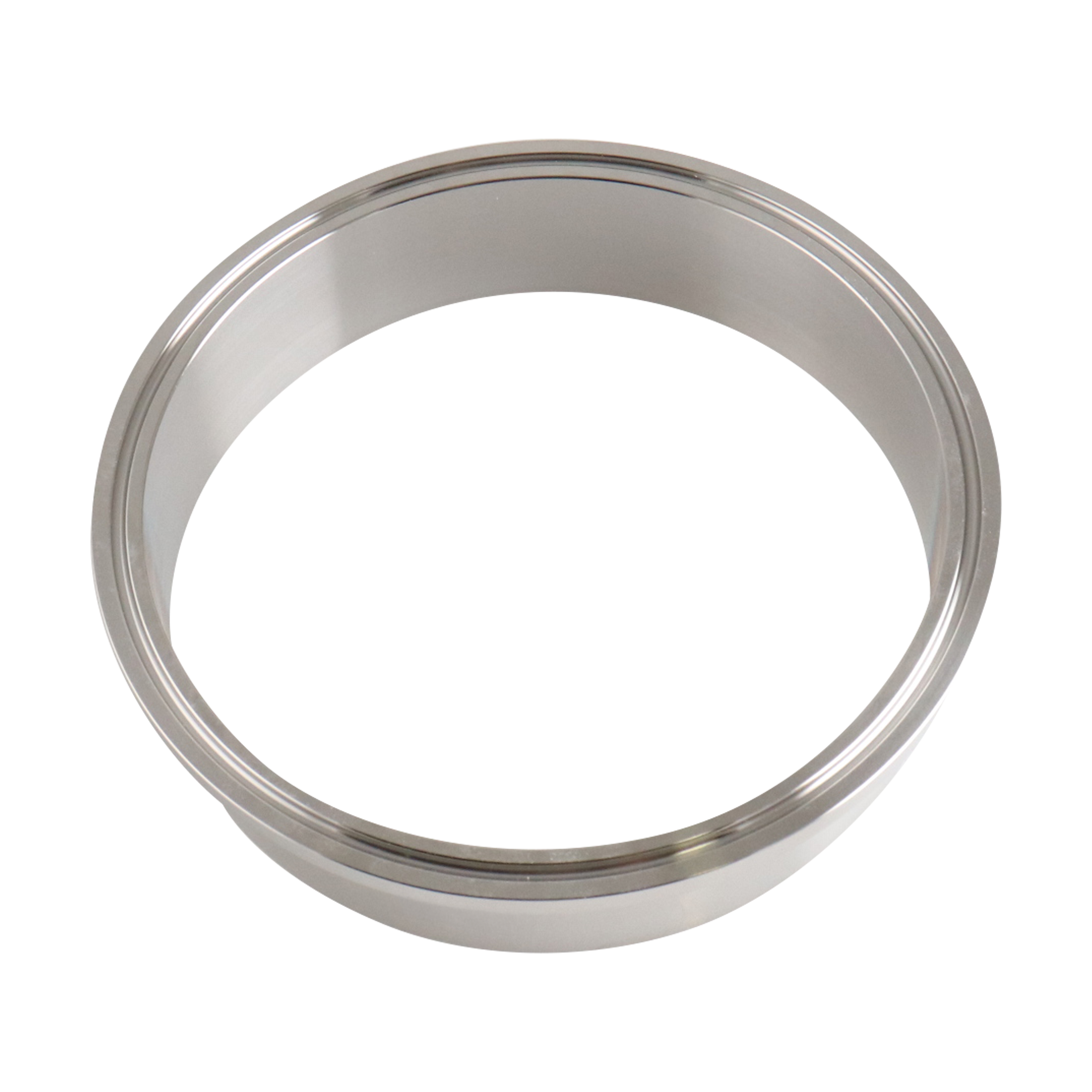

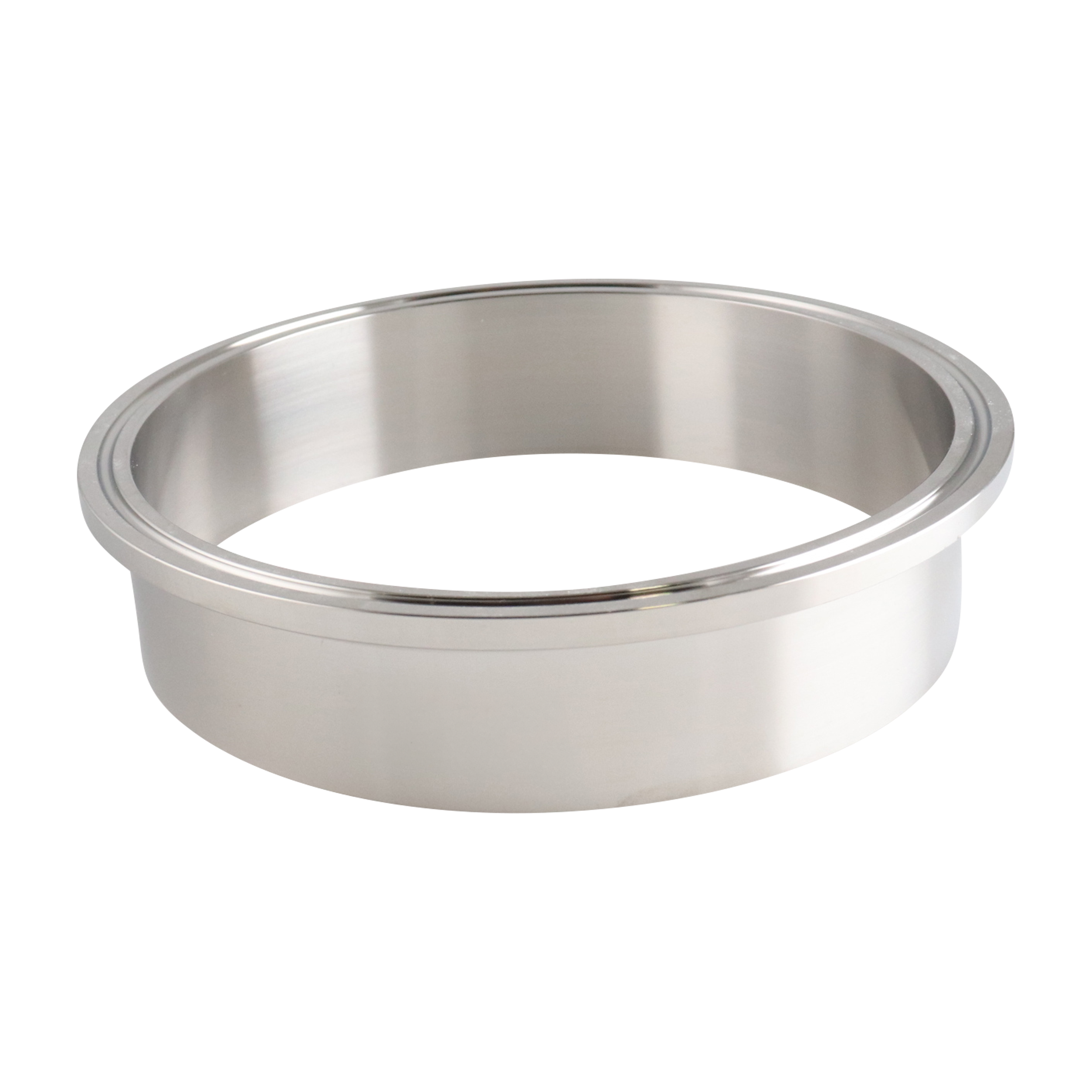

FERRULE 6" TC 316L 1.5" OAL 15RA EP ID 32RA OD SF4 BPE
L14AM-6-316L-PM
Net Price: $212.45 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Ferrules |
| Material | 316L Stainless Steel |
| Finish | 15Ra EP ID / 32Ra OD |
| Size 1 | 6" |
| Connection Type 1 | Tri-Clamp |
| Size 2 | 6" |
| Connection Type 2 | Butt Weld |
| Length | 1.5" OAL |
| Specification / Standard | ASME BPE |
| Fitting Design | L14AM |
| Weight | 1.30000 |
Dimensional Data
Tri-Clamp Ferrule, Medium | L14AM-Size-Material-Finish
| Nominal Size | A | B | |||
|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) |
| ¼ | 6.35 | 1.125 | 28.58 | 0.984 | 25.00 |
| ⅜ | 9.53 | 1.125 | 28.58 | 0.984 | 25.00 |
| ½ | 12.70 | 1.125 | 28.58 | 0.984 | 25.00 |
| ¾ | 19.05 | 1.125 | 28.58 | 0.984 | 25.00 |
| 1 | 25.40 | 1.125 | 28.58 | 1.984 | 50.39 |
| 1½ | 38.10 | 1.125 | 28.58 | 1.984 | 50.39 |
| 2 | 50.80 | 1.125 | 28.58 | 2.516 | 63.91 |
| 2½ | 63.50 | 1.125 | 28.58 | 3.047 | 77.39 |
| 3 | 76.20 | 1.125 | 28.58 | 3.579 | 90.91 |
| 4 | 101.60 | 1.125 | 28.58 | 4.682 | 118.92 |
| 6 | 152.40 | 1.500 | 38.10 | 6.575 | 167.01 |
| BPE DT-4.1.4-1 (B) | 2009 BPE DT-22 | |||||
L14AM 2D Drawing
L14AM-6 3D Model
