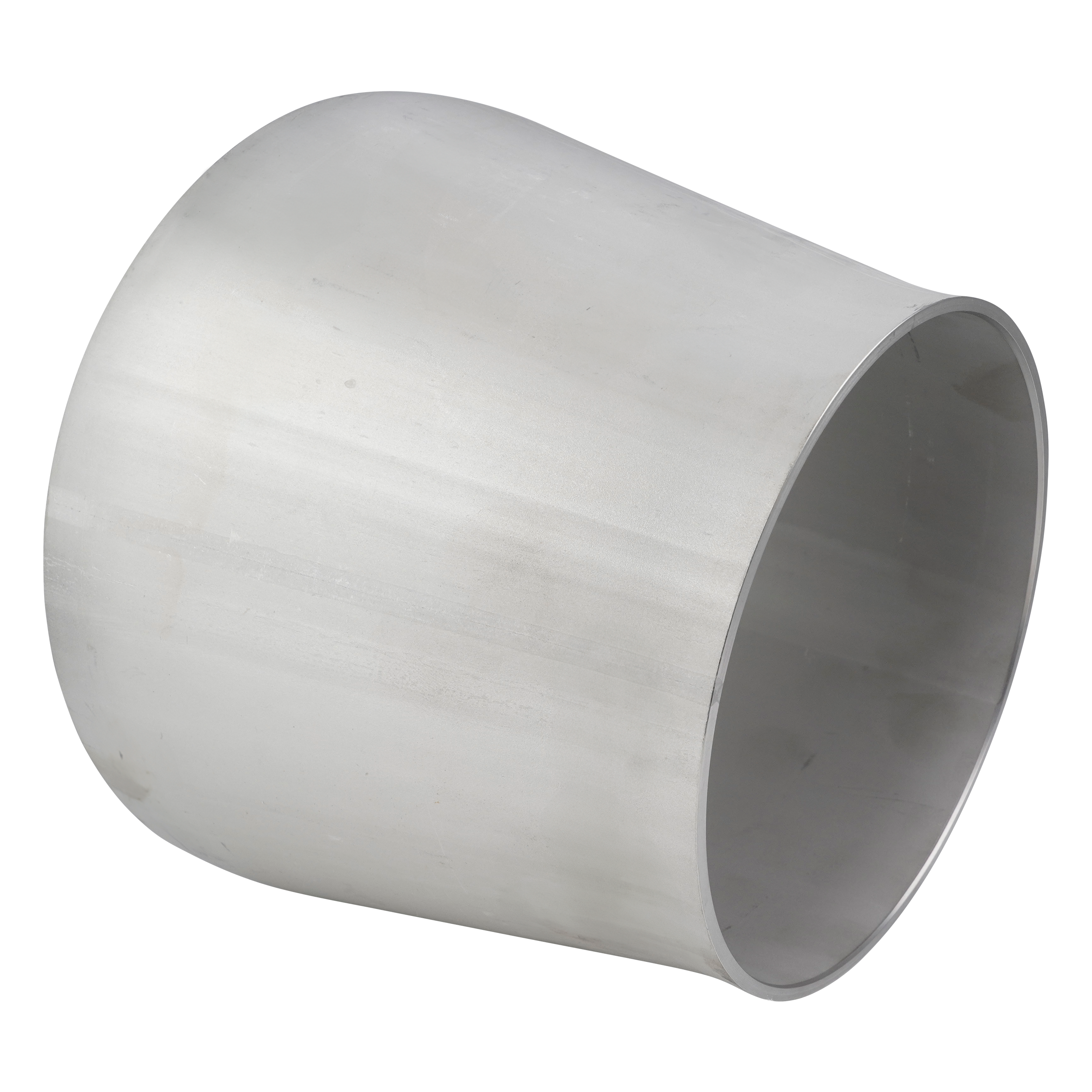

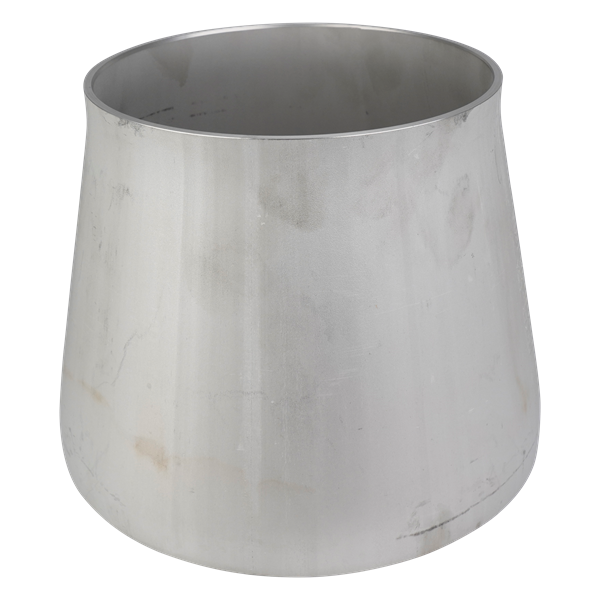

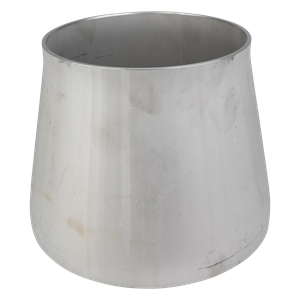

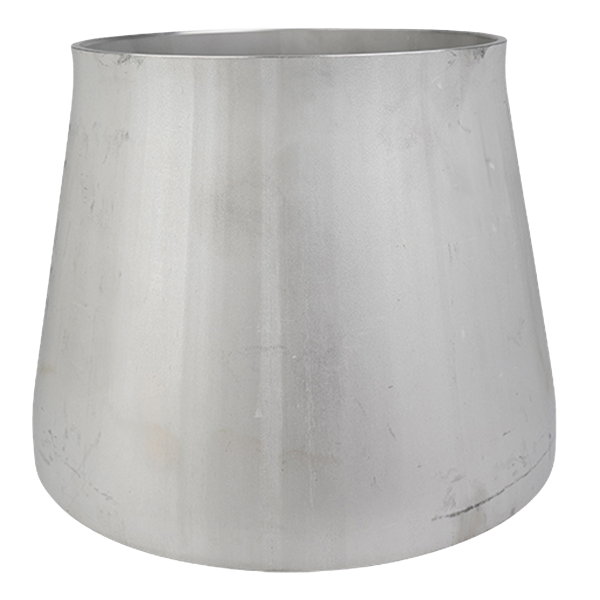

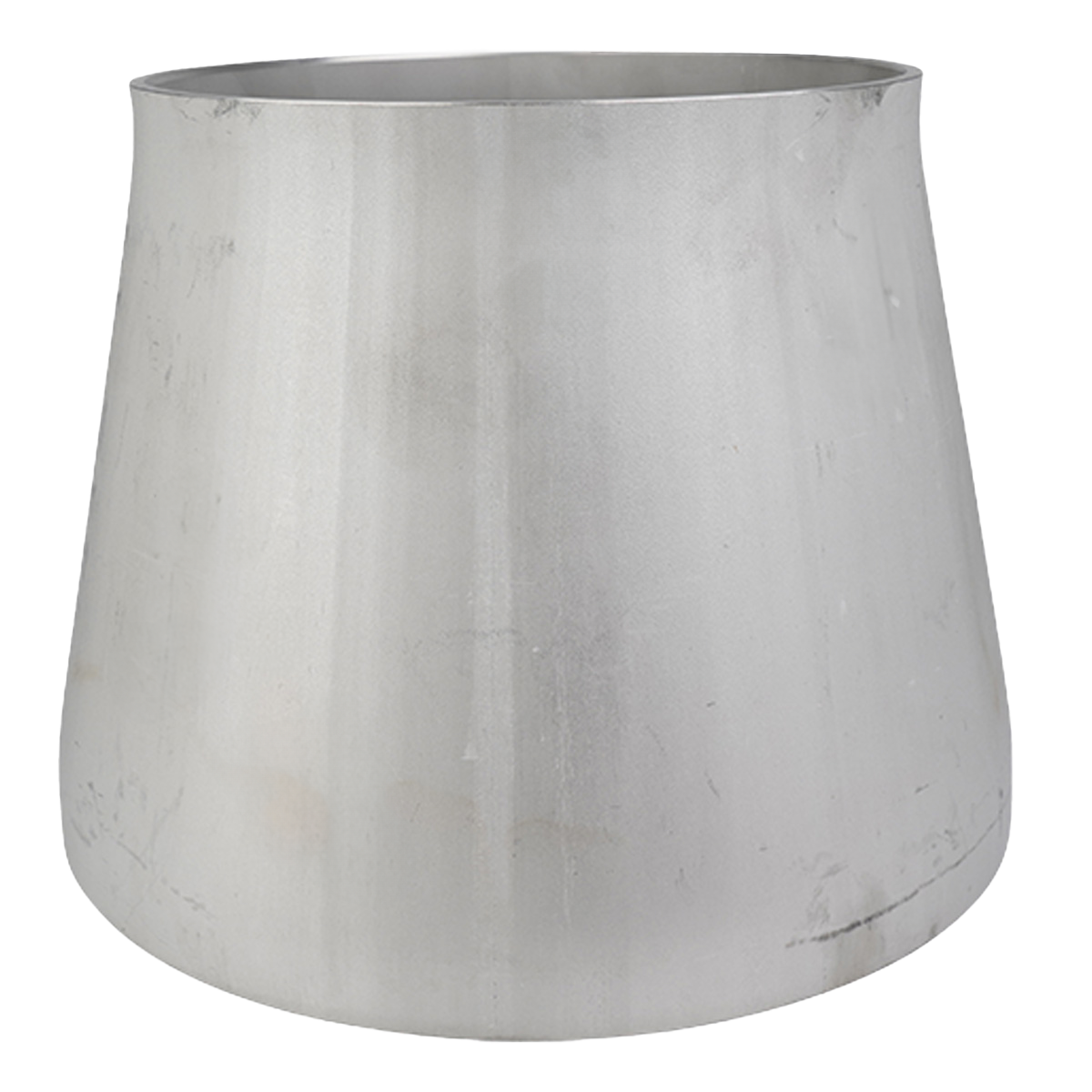

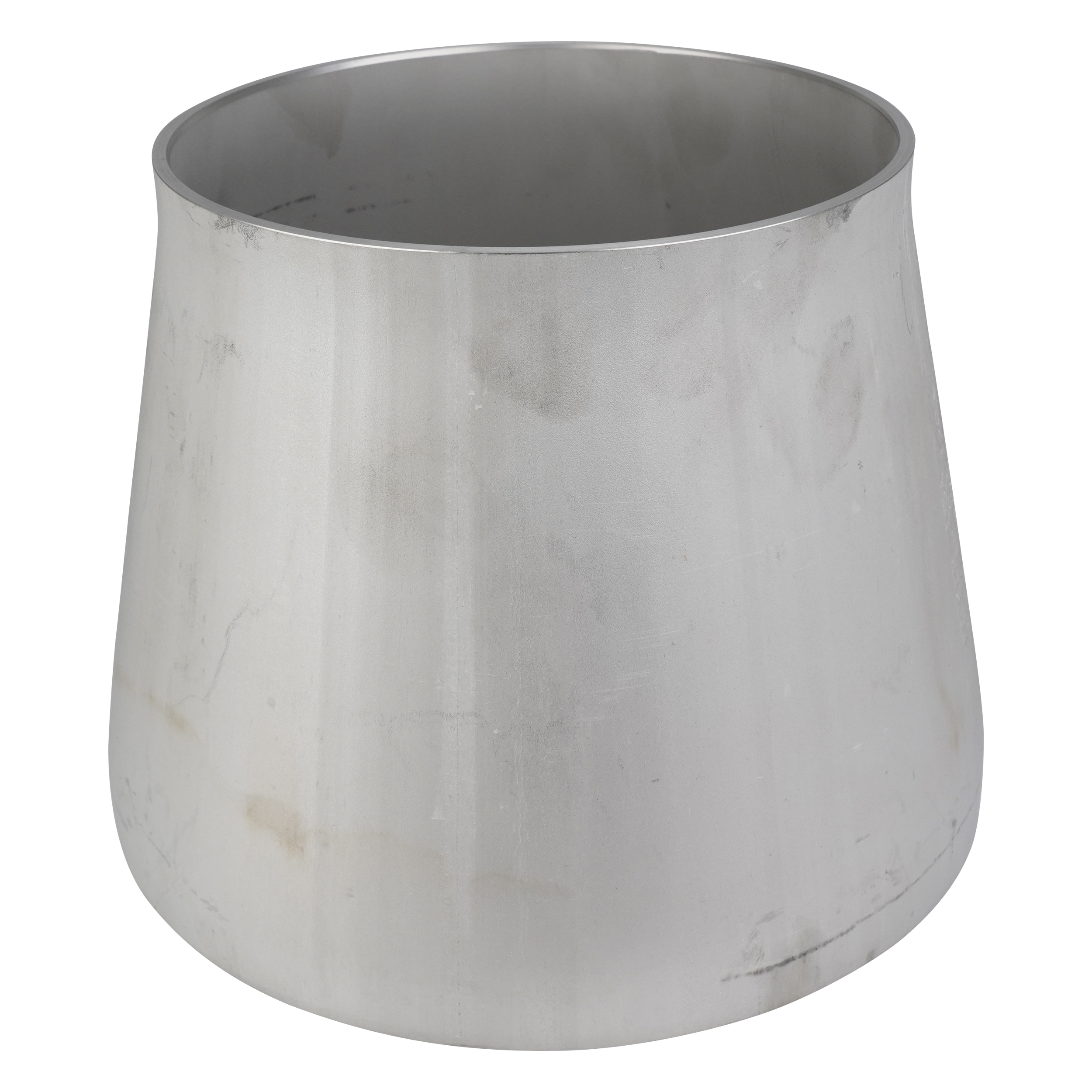

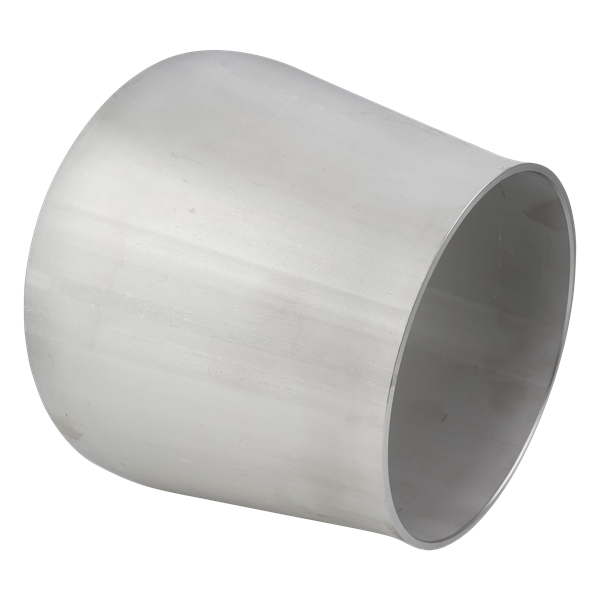

CONCENTRIC REDUCER 8X6 BW 12GA 304 MILL FINISH

L31-8X6-304-1

USUALLY SHIPS IN 1-2 DAYS

Net Price: $292.42 / EA

Have an account? Login now.

This item is non-returnable.

Availability:
Product Type Tube Fittings
Product Subtype Concentric Reducers
Material 304 Stainless Steel
Finish Mill Finish
Size 1 8"
Connection Type 1 Butt Weld
Size 2 6"
Connection Type 2 Butt Weld
Fitting Design L31
Weight 10.00000

L31 Dimensional Diagram

Concentric Butt Weld Reducers, Short | L31-Size-Material-Finish
Nominal Size A
(in) (mm) (in) (mm)
¾ x ½ 19.05 x 12.70 1.00 25.40
1 x ½ 25.40 x 12.70 2.00 50.80
1 x ¾ 25.40 x 19.05 1.00 25.40
1½ x ½ 38.10 x 12.70 2.50  63.50
1½ x ¾ 38.10 x 19.05 2.00 50.80
1½ x 1 38.10 x 25.40 2.00 50.80
2 x ½ 50.80 x 12.70 6.00 152.40
2 x ¾ 50.80 x 19.05 5.00 127.00
2 x 1 50.80 x 25.40 4.00 101.60
2 x 1½ 50.80 x 38.10 2.00 50.80
2½ x 1 63.50 x 25.40 6.00 152.40
2½ x 1½ 63.50 x 38.10 4.00 101.60
2½ x 2 63.50 x 50.80 2.00 50.80
3 x ¾ 76.20 x 19.05 9.00 228.60
3 x 1  76.20 x 25.40 8.00 203.20
3 x 1½ 76.20 x 38.10 6.00 152.40
3 x 2 76.20 x 50.80 4.00 101.60
3 x 2½ 76.20 x 63.50 2.00 50.80
4 x 1 101.60 x 25.40 12.00 304.80
4 x 1½ 101.60 x 38.10 10.00 254.00
4 x 2 101.60 x 50.80 8.00 203.20
 4 x 2½ 101.60 x 63.50 6.00 152.40
4 x 3 101.60 x 76.20 4.00 101.60
6 x 2 152.40 x 50.80 5.50 139.70
6 x 2½ 152.40 x 63.50 6.98 177.29
6 x 3 152.40 x 76.20 5.50 139.70
6 x 4 152.40 x 101.60 5.50 139.70
8 x 3 203.20 x 76.20 6.00 152.40
8 x 6 203.20 x 152.40 6.00 152.40
12 x 6 304.80 x 152.40 6.81 172.97
12 x 8 304.80 x 203.20 6.81 172.97
