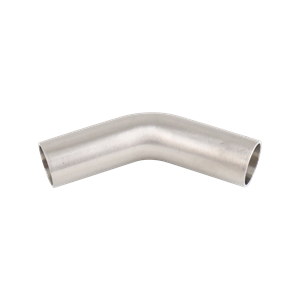

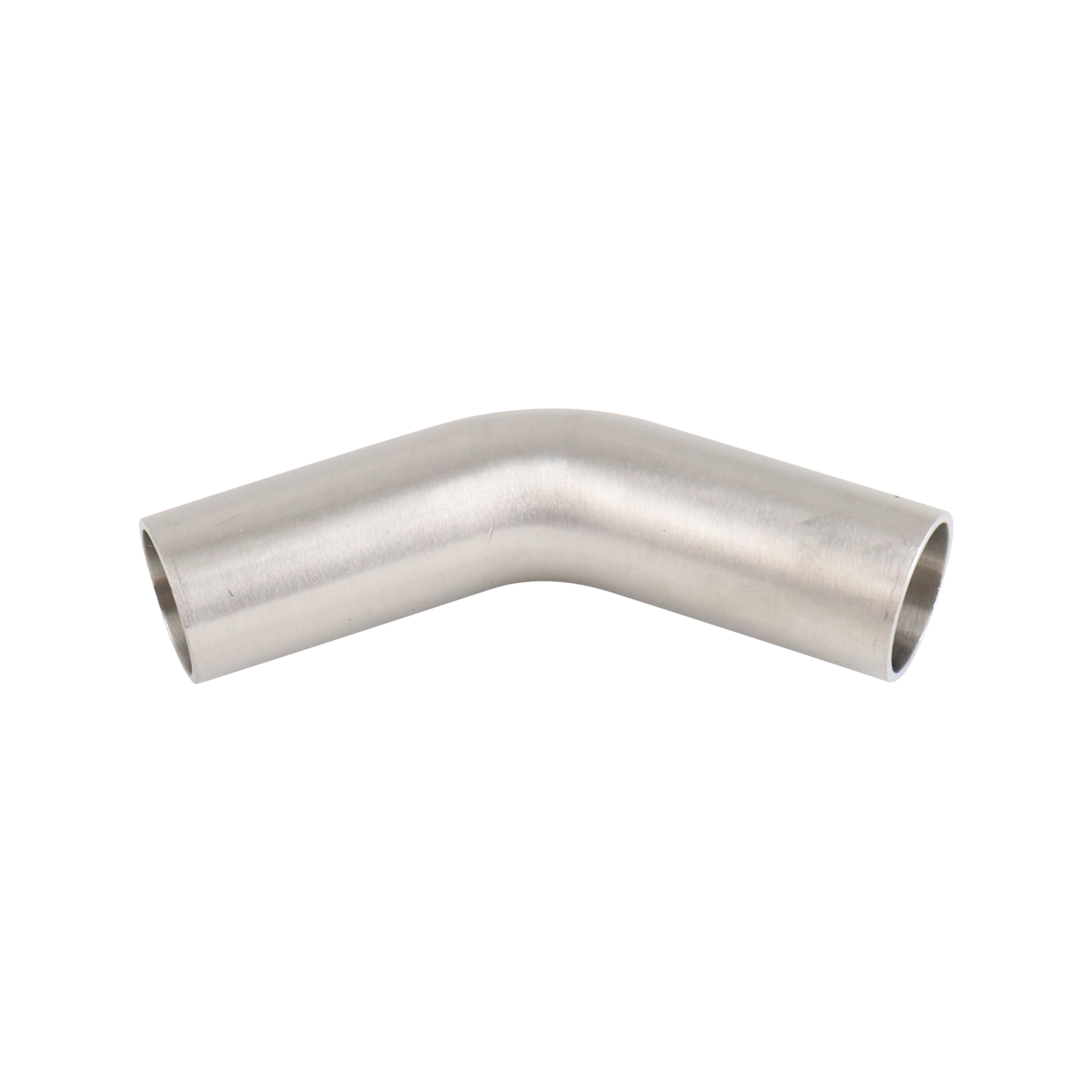

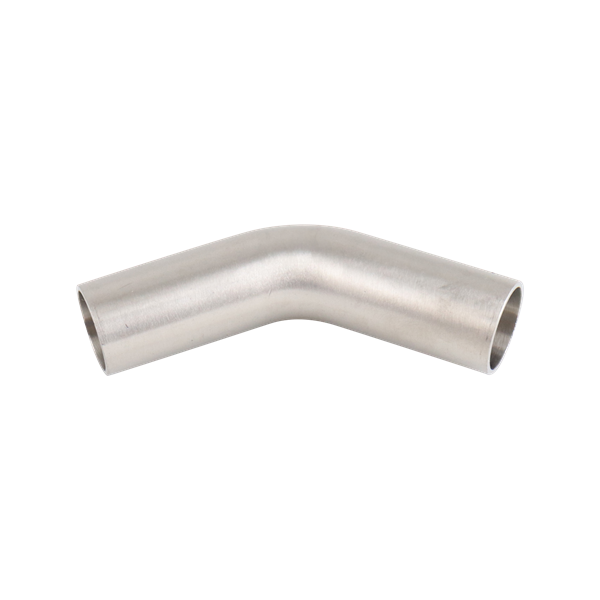

45 DEGREE ELBOW 1" BW 316L 32RA ID 32RA OD
B2KS-1-316L-7
Net Price: $4.70 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Elbows |
| Material | 316L Stainless Steel |
| Finish | 32Ra ID / 32Ra OD |
| Size 1 | 1" |
| Connection Type 1 | Butt Weld |
| Shape | 45 Degree |
| Fitting Design | B2KS |
| Weight | 0.25000 |
Dimensional Data
Butt Weld 45° Elbows | B2KS-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 2.25 | 57.15 |
| 1½ | 38.10 | 2.50 | 63.50 |
| 2 | 50.80 | 3.00 | 76.20 |
| 2½ | 63.50 | 3.38 | 85.85 |
| 3 | 76.20 | 3.63 | 92.20 |
| 4 | 101.60 | 4.50 | 114.30 |
| 6 | 152.40 | 6.25 | 158.75 |
