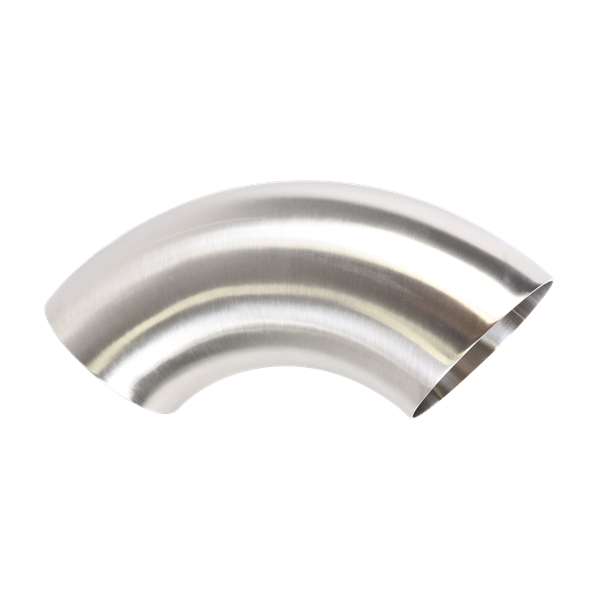

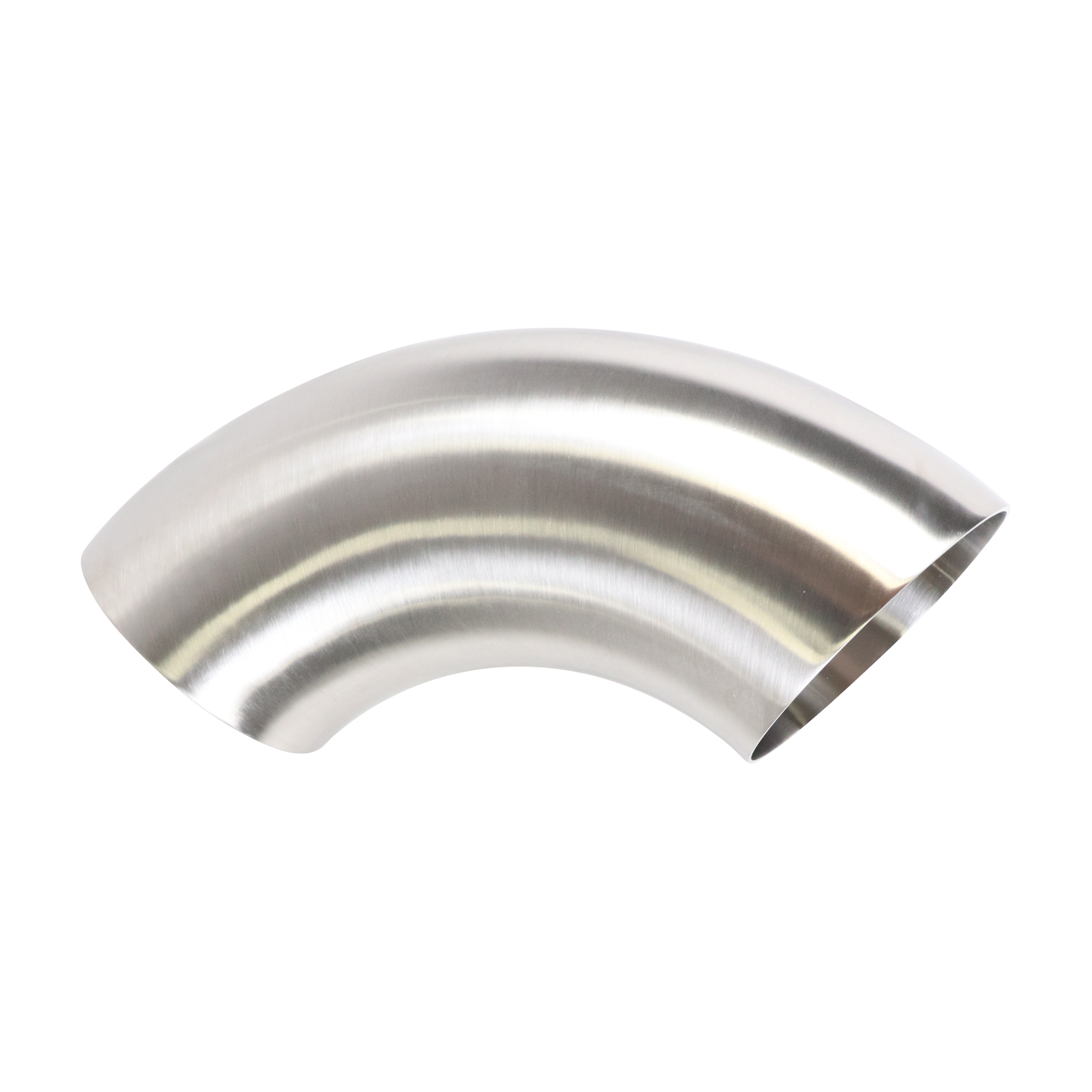

90 DEGREE ELBOW NO TANGENT 6" BW 316L 32RA ID 32RA OD
2WCL-6-316L-7
Net Price: $171.71 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Elbows |
| Material | 316L Stainless Steel |
| Finish | 32Ra ID / 32Ra OD |
| Size 1 | 6" |
| Connection Type 1 | Butt Weld |
| Shape | 90 Degree |
| Fitting Design | 2WCL |
| Weight | 8.60000 |
Dimensional Data
Butt Weld 90° Elbow, No Tangent | 2WCL-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| ½ | 12.70 | 0.75 | 19.05 |
| ¾ | 19.05 | 1.13 | 28.58 |
| 1 | 25.40 | 1.50 | 38.10 |
| 1½ | 38.10 | 2.25 | 57.15 |
| 2 | 50.80 | 3.00 | 76.20 |
| 2½ | 63.50 | 3.75 | 95.25 |
| 3 | 76.20 | 4.50 | 114.30 |
| 4 | 101.60 | 6.00 | 152.40 |
| 6 | 152.40 | 9.00 | 228.60 |
