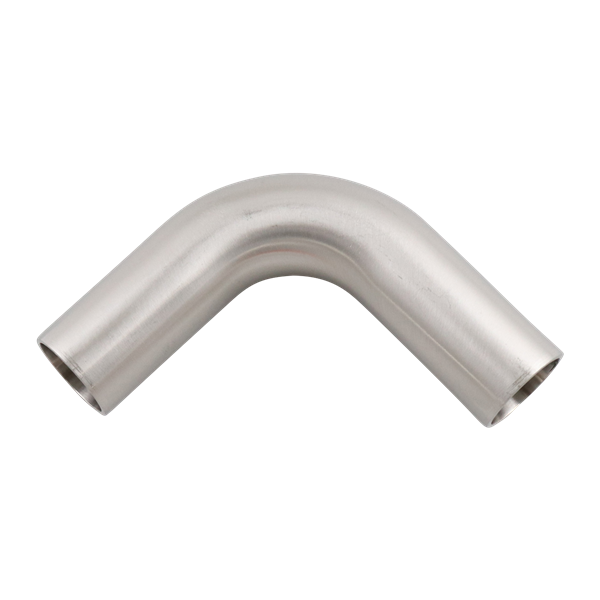

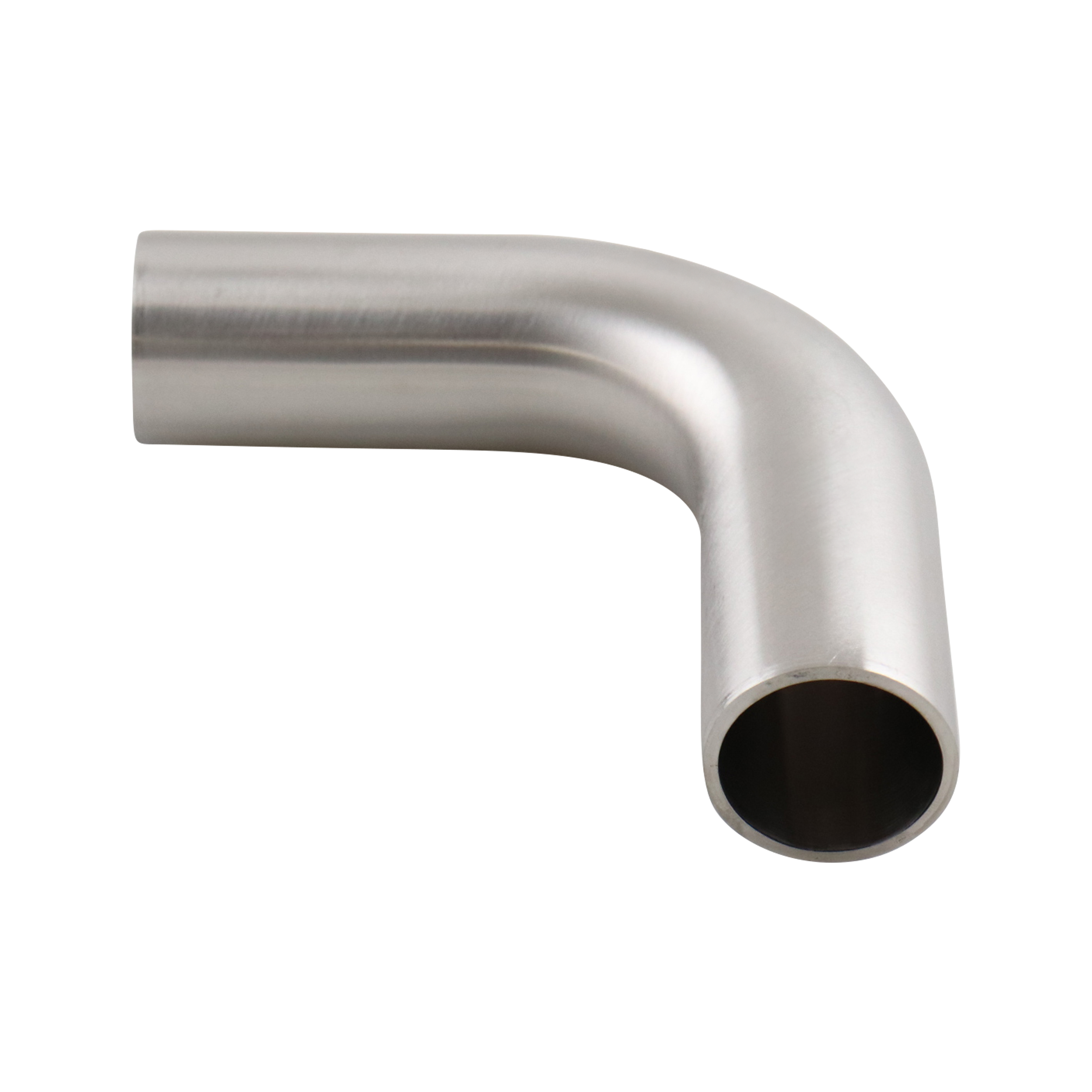

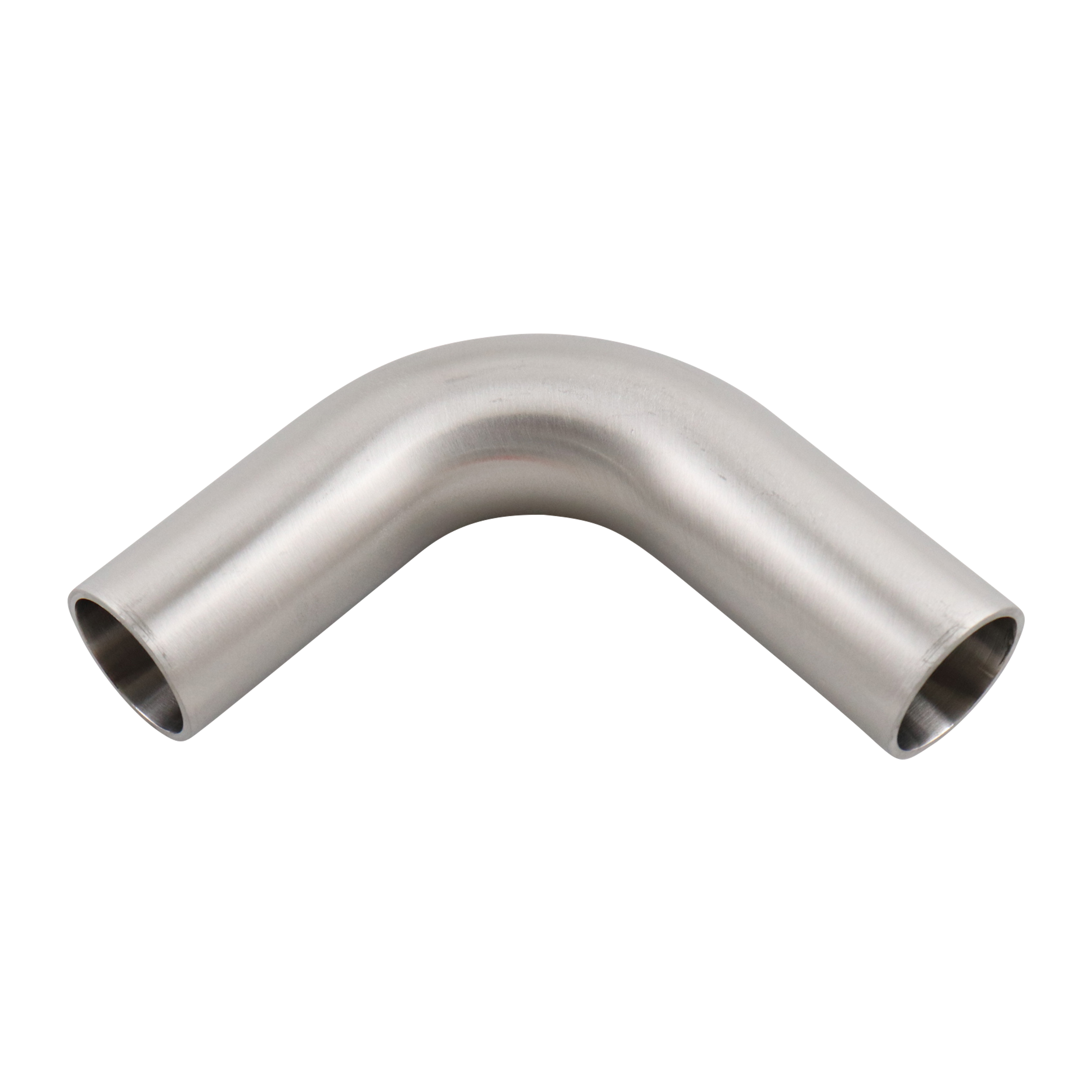

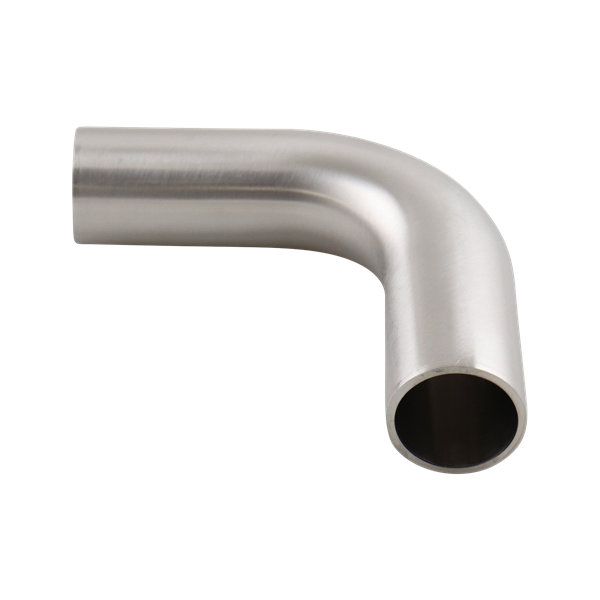

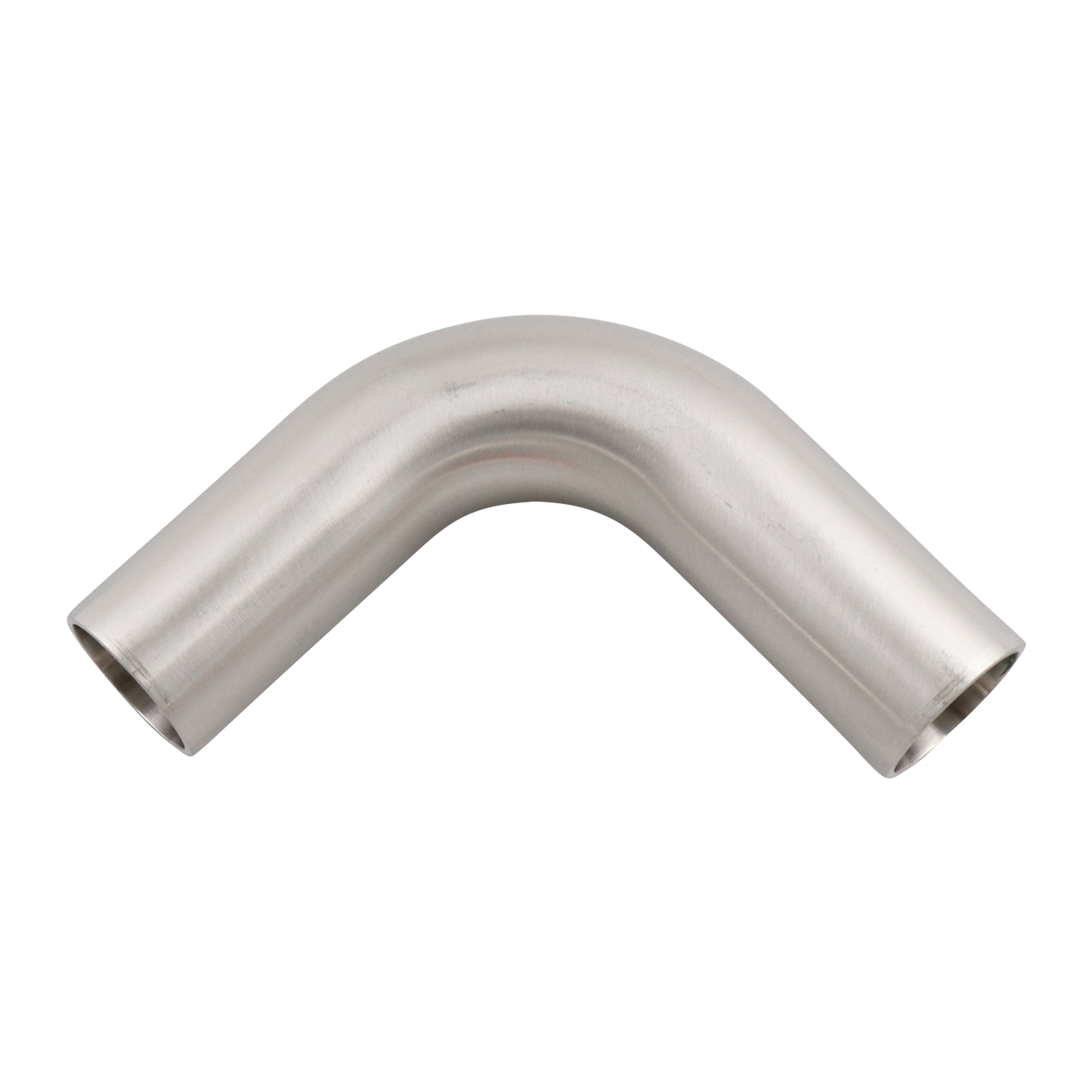

90 DEGREE ELBOW 1" BW 316L 32RA ID 32RA OD
B2S-1-316L-7
Net Price: $6.03 / EA
- Availability:
Spare Parts
Suggested products
- Total: 1
| Product | Availability |
Price
|
||
|---|---|---|---|---|
| 90 DEGREE ELBOW 1" BW 316L 20RA ID 32RA OD SF1 BPE |
$21.26 / EA |
|
- Total: 1
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Elbows |
| Material | 316L Stainless Steel |
| Finish | 32Ra ID / 32Ra OD |
| Size 1 | 1" |
| Connection Type 1 | Butt Weld |
| Shape | 90 Degree |
| Fitting Design | B2S |
| Weight | 0.29000 |
Dimensional Data
Butt Weld 90° Elbow | B2S-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 3.00 | 76.20 |
| 1½ | 38.10 | 3.75 | 95.25 |
| 2 | 50.80 | 4.75 | 120.65 |
| 2½ | 63.50 | 5.50 | 139.70 |
| 3 | 76.20 | 6.25 | 158.75 |
| 4 | 101.60 | 8.00 | 203.20 |
| 6 | 152.40 | 11.50 | 292.1 |
Resources
22D Drawings
B2S 2D Drawing
33D Models
B2S-1 3D Model
8Other Literature
Blog Posts
Videos
