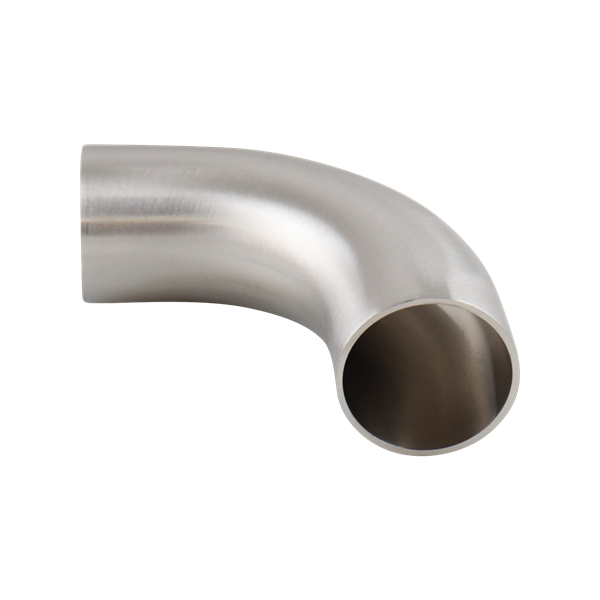

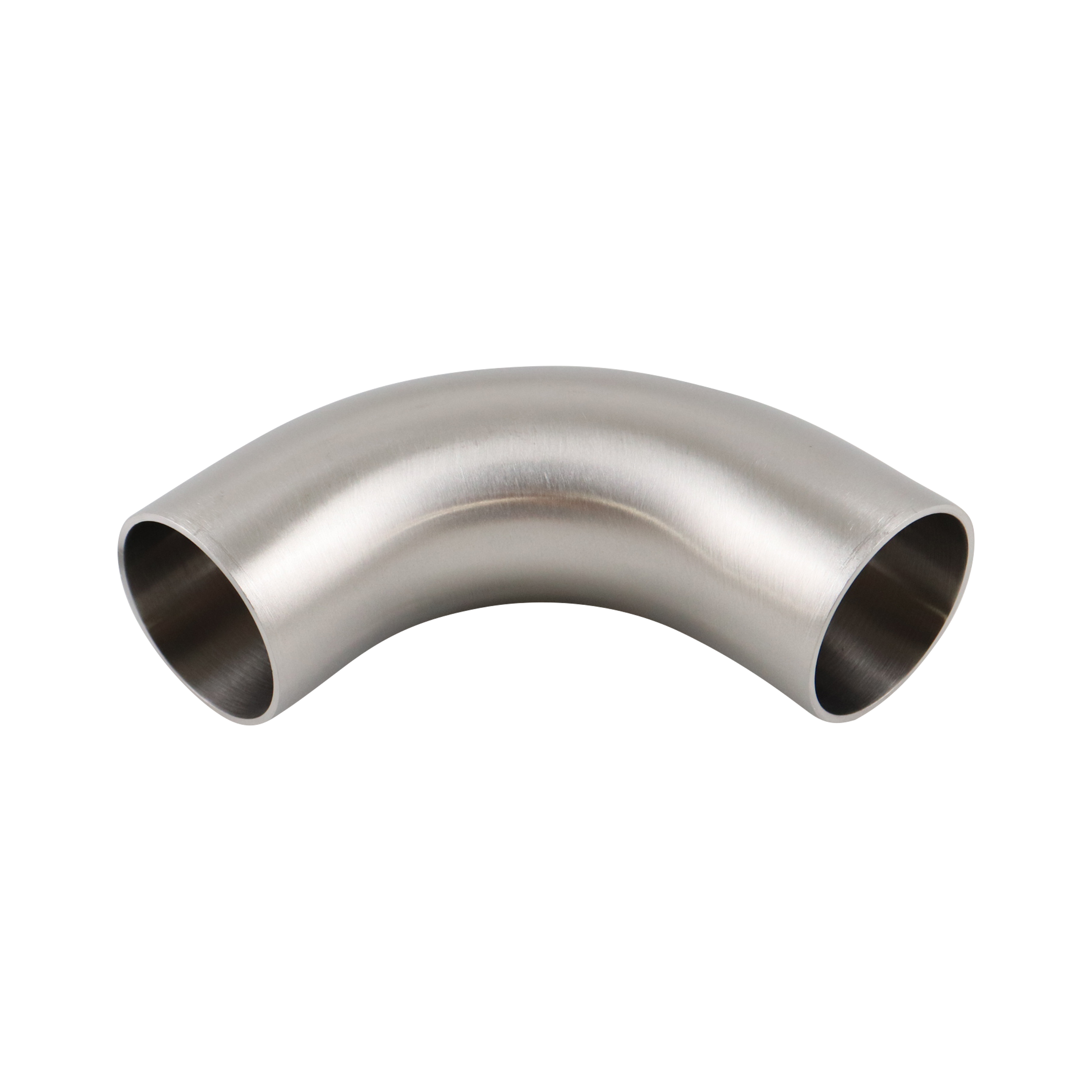

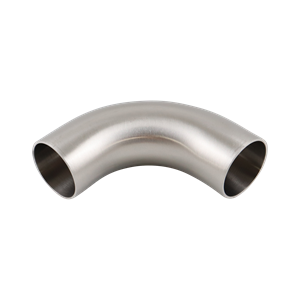

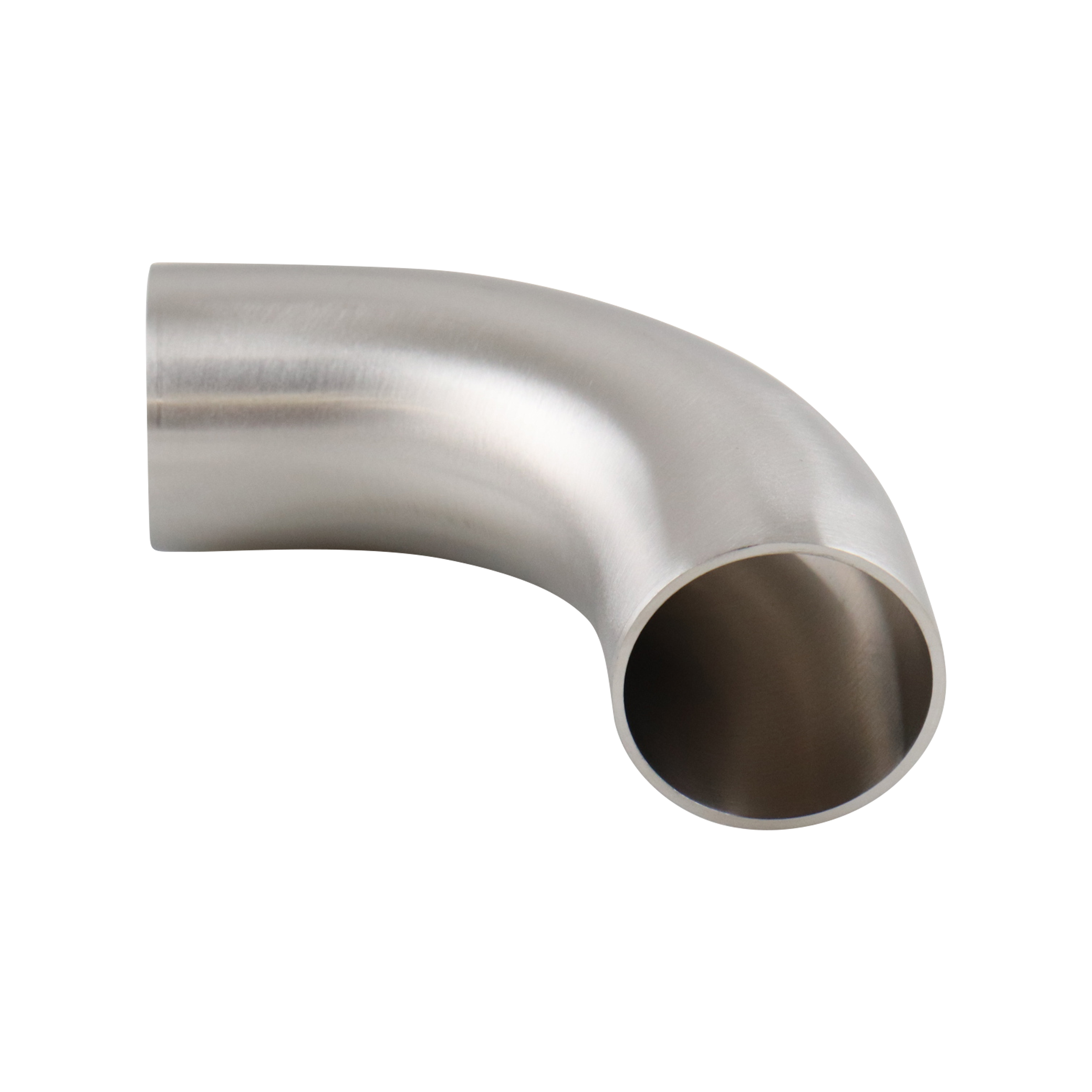

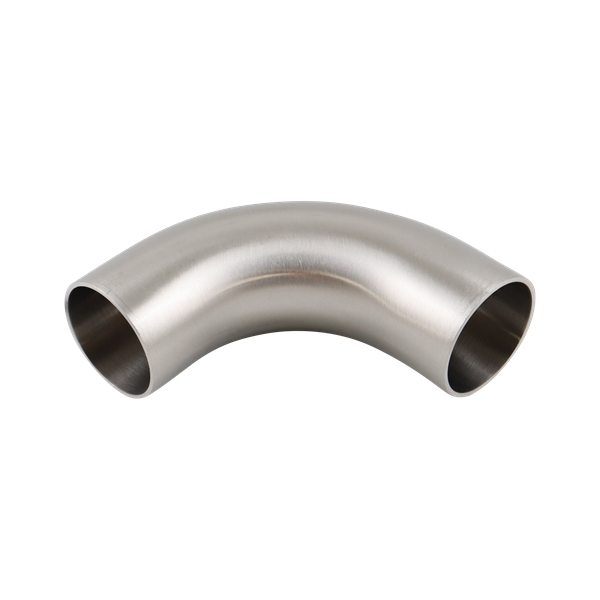

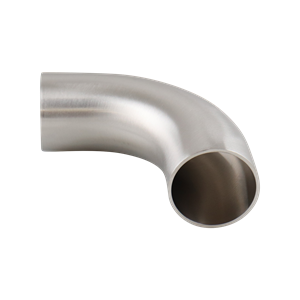

90 DEGREE ELBOW 1" BW 316L 32RA ID 32RA OD
L2S-1-316L-7
Net Price: $4.49 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Elbows |
| Material | 316L Stainless Steel |
| Finish | 32Ra ID / 32Ra OD |
| Size 1 | 1" |
| Connection Type 1 | Butt Weld |
| Shape | 90 Degree |
| Fitting Design | L2S |
| Weight | 0.25000 |
Dimensional Data
Butt Weld 90° Elbow, with Tangent | L2S-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 2.06 | 52.32 |
| 1½ | 38.10 | 2.94 | 74.68 |
| 2 | 50.80 | 4.06 | 103.12 |
| 2½ | 63.50 | 5.19 | 131.83 |
| 3 | 76.20 | 6.31 | 160.27 |
| 4 | 101.60 | 8.31 | 211.10 |
Fittings Reference Sheet
