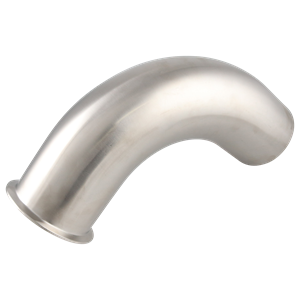

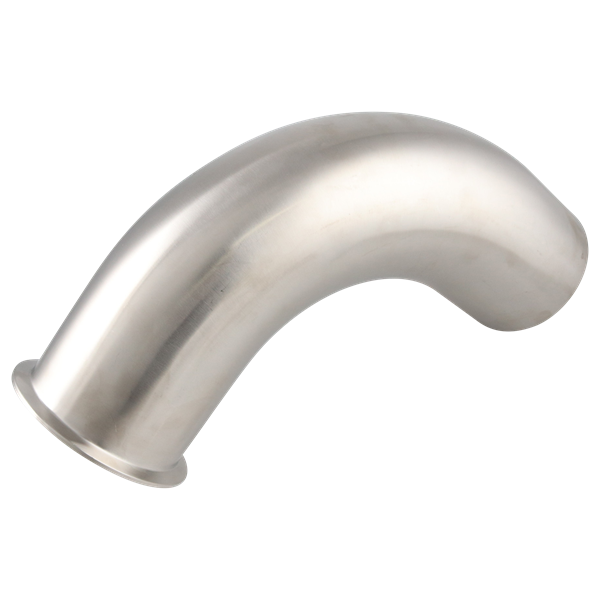

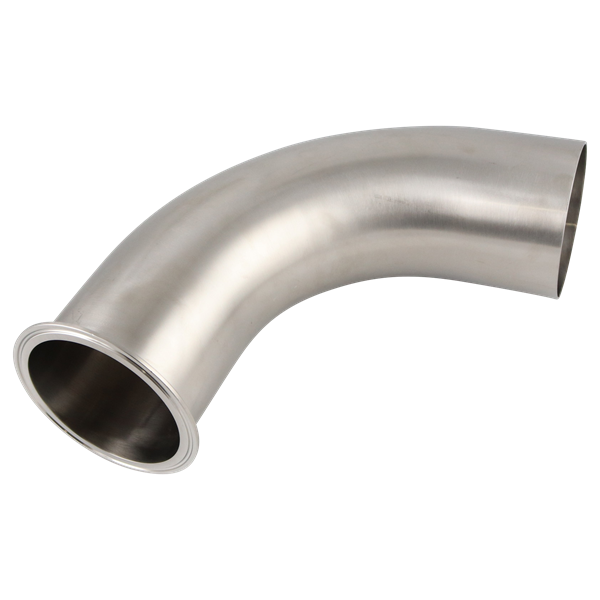

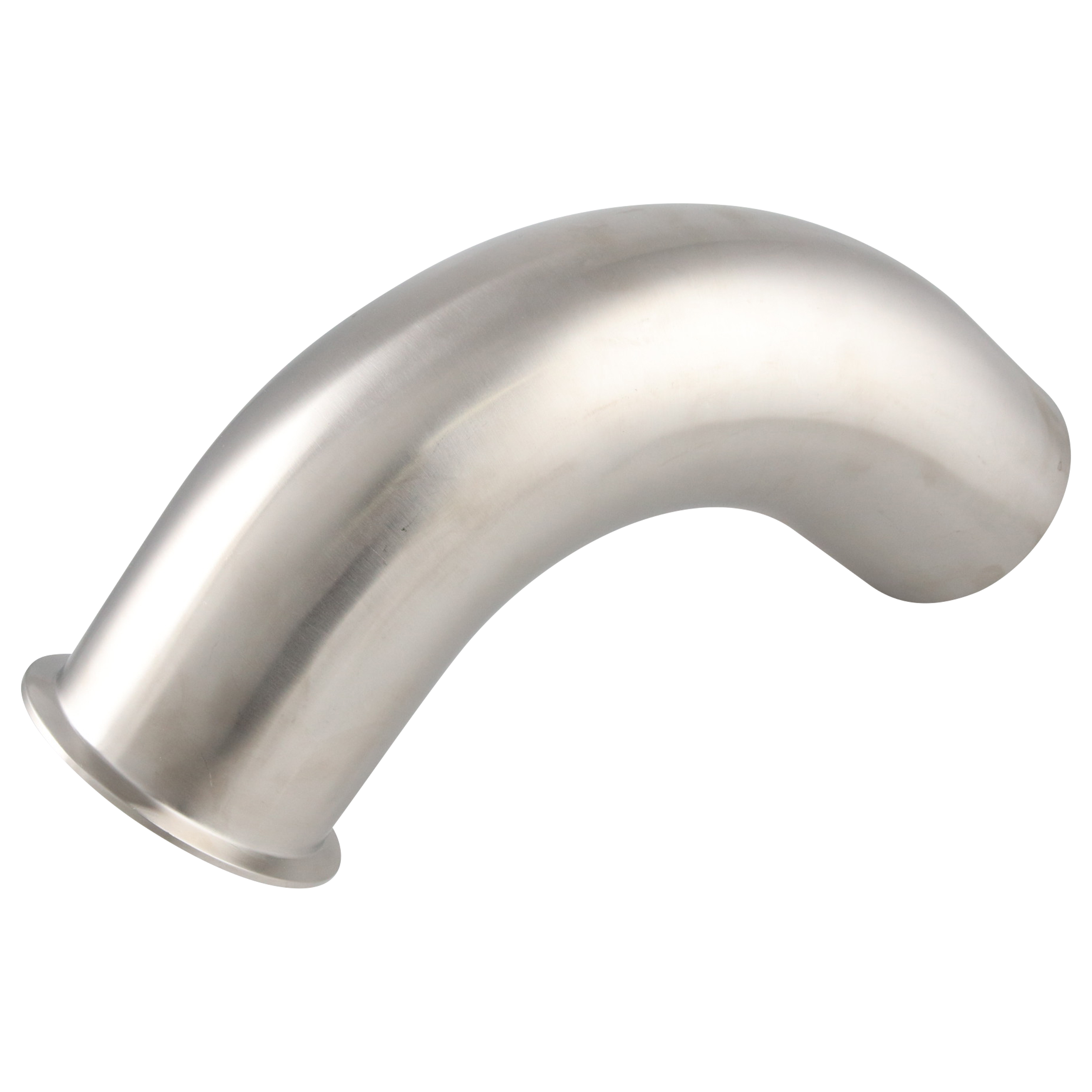

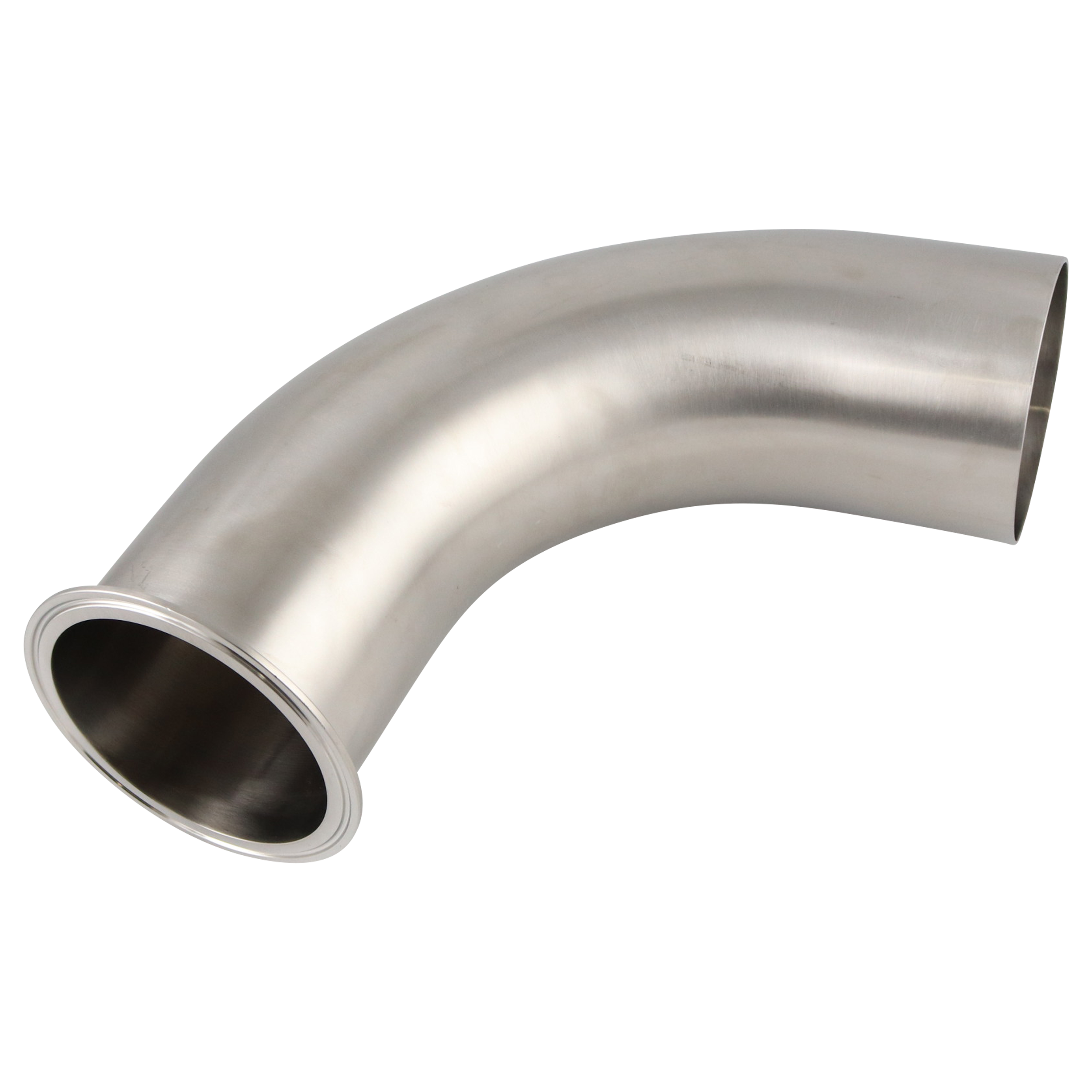

90 DEGREE ELBOW 4" BW X TC 316L 32RA ID 32RA OD
L2CM-4-316L-7
Net Price: $61.54 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Elbows |
| Material | 316L Stainless Steel |
| Finish | 32Ra ID / 32Ra OD |
| Size 1 | 4" |
| Connection Type 1 | Butt Weld |
| Size 2 | 4" |
| Connection Type 2 | Tri-Clamp |
| Shape | 90 Degree |
| Fitting Design | L2CM |
| Weight | 4.40000 |
Dimensional Data
Tri-Clamp x Butt Weld 90° Elbows | L2CM-Size-Material-Finish
| Nominal Size | A | B | |||
|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 2.06 | 52.32 | 2.56 | 65.02 |
| 1½ | 38.10 | 2.94 | 74.68 | 3.44 | 87.38 |
| 2 | 50.80 | 4.06 | 103.12 | 4.56 | 115.82 |
| 2½ | 63.50 | 5.19 | 131.83 | 5.69 | 144.53 |
| 3 | 76.20 | 6.31 | 160.27 | 6.81 | 172.97 |
| 4 | 101.60 | 8.31 | 211.07 | 8.94 | 227.08 |
| 6 | 152.4 | 9.00 | 228.6 | 9.87 | 250.70 |
