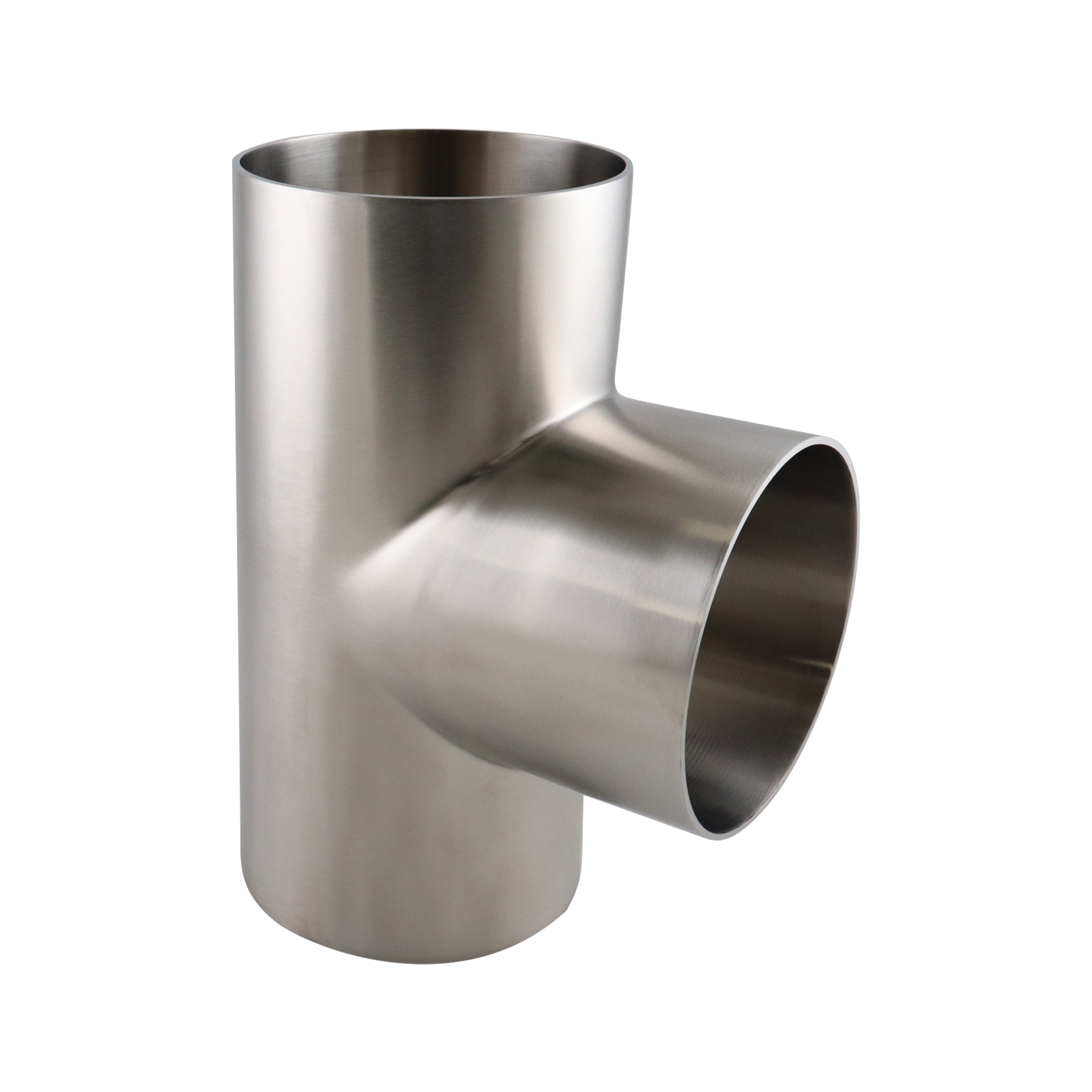

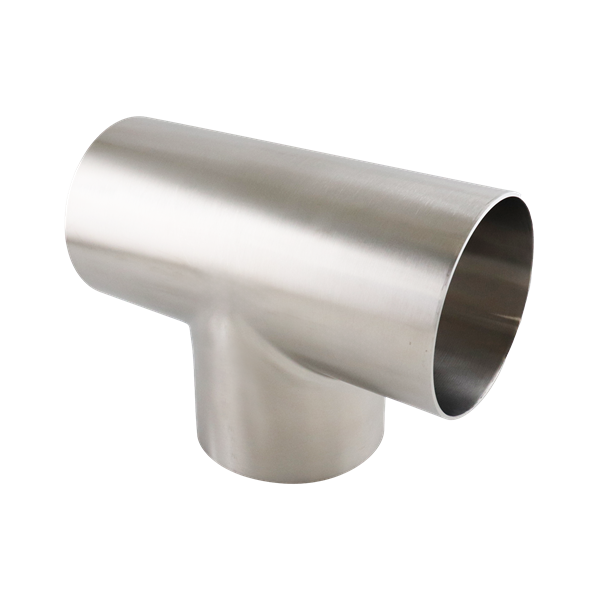

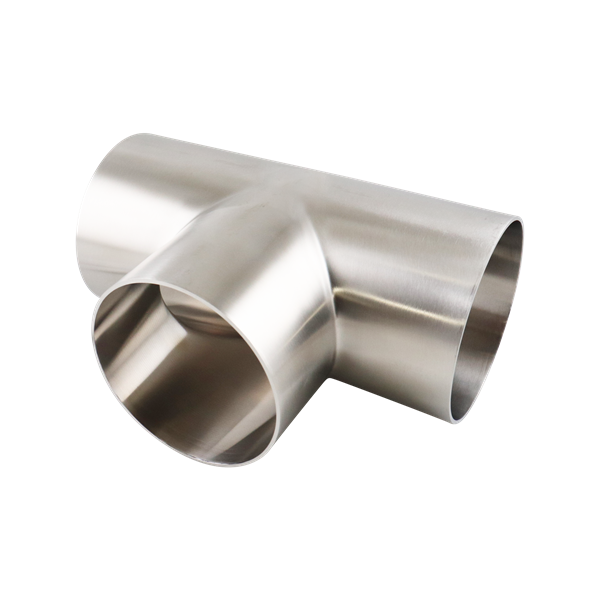

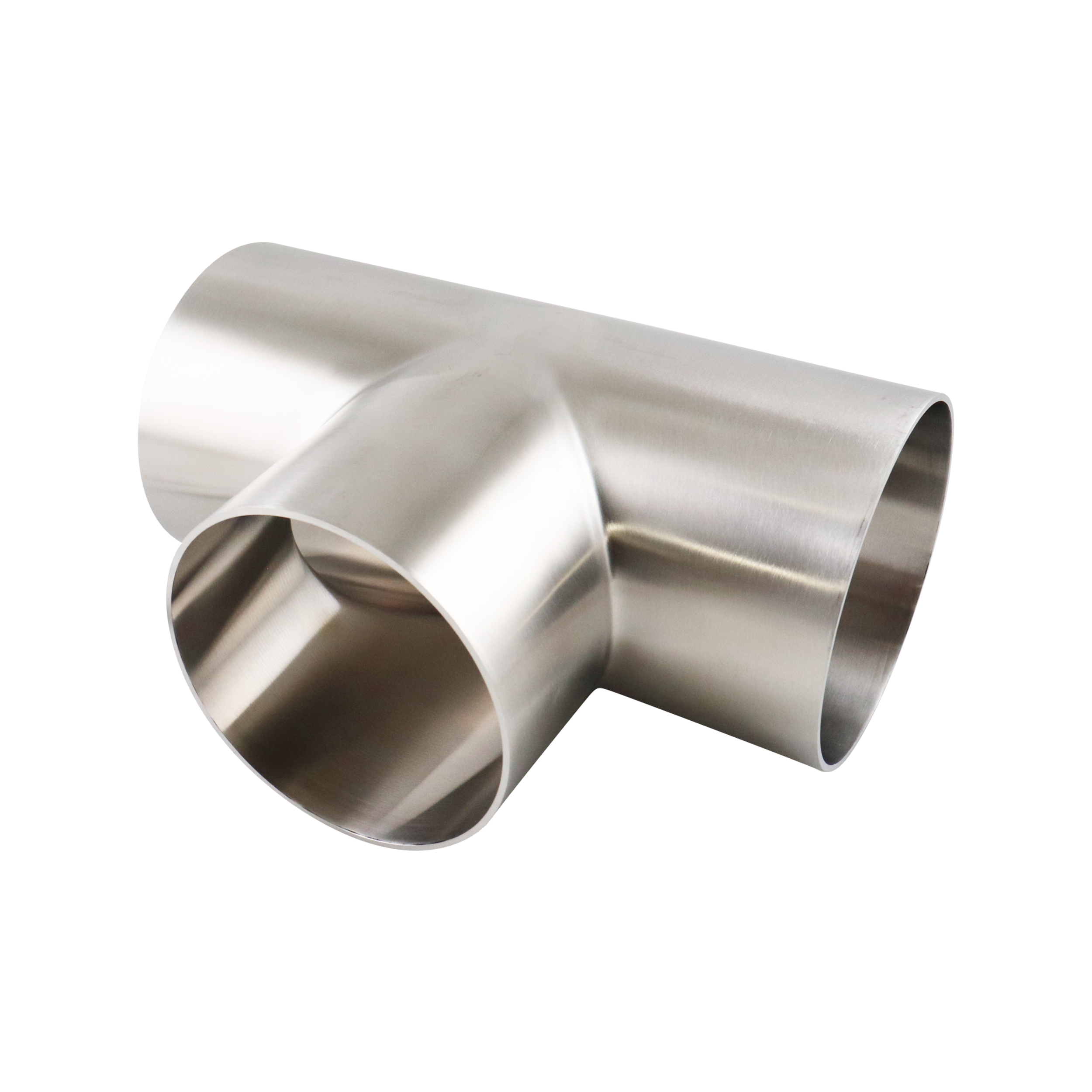

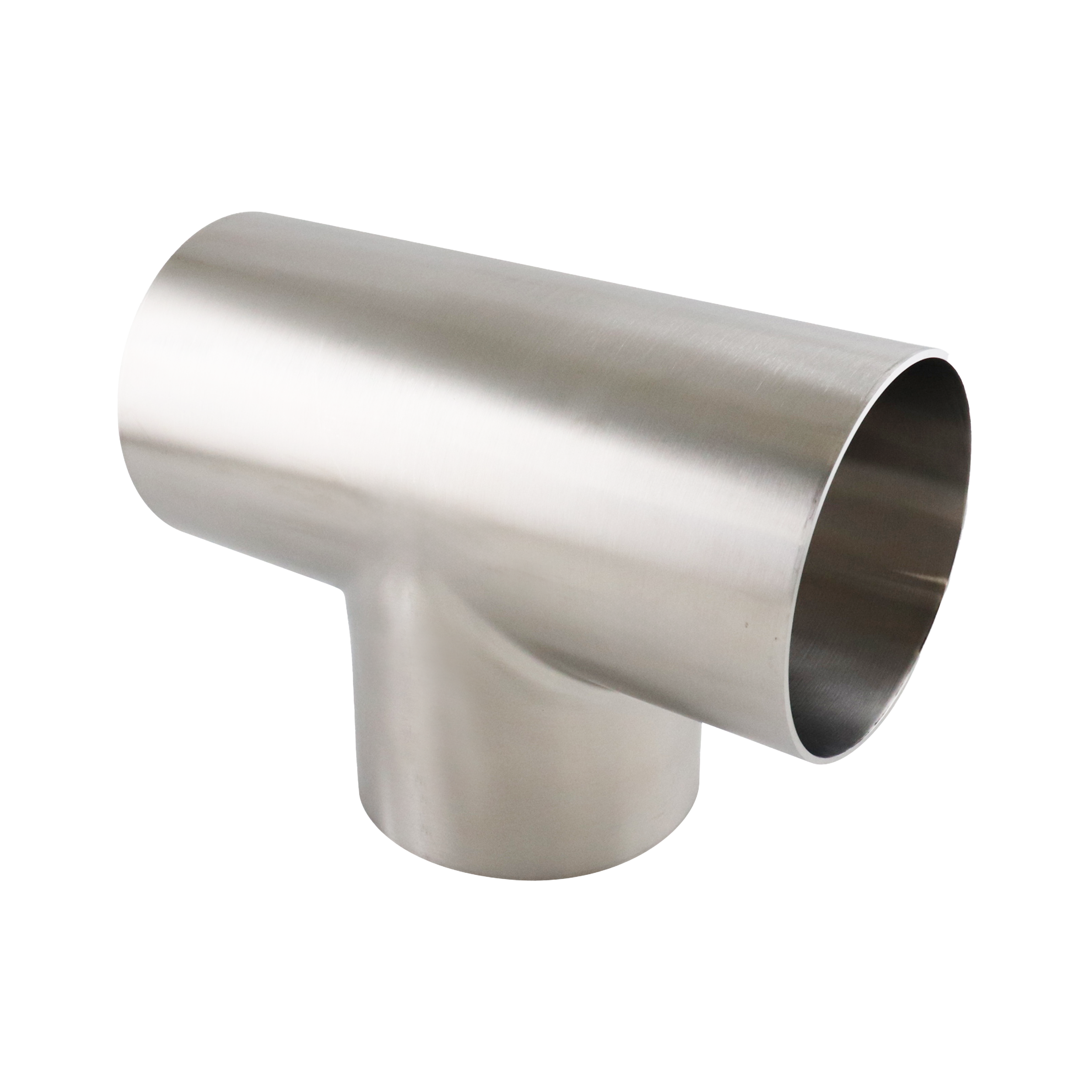

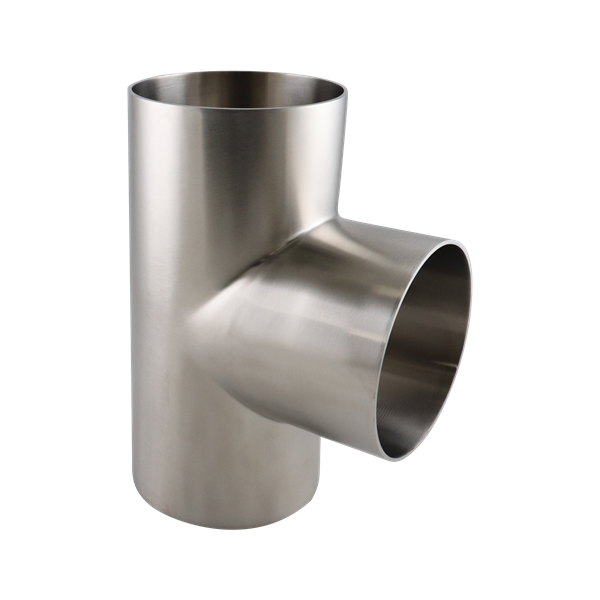

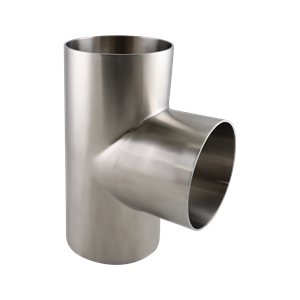

TEE 4" BW 316L 32RA ID 32RA OD
B7WWW-4-316L-7
Net Price: $36.42 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Tees |
| Material | 316L Stainless Steel |
| Finish | 32Ra ID / 32Ra OD |
| Size 1 | 4" |
| Connection Type 1 | Butt Weld |
| Size 2 | 4" |
| Connection Type 2 | Butt Weld |
| Fitting Design | B7WWW |
| Weight | 3.25000 |
Dimensional Data
Butt Weld Tee | B7WWW-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| ½ | 12.70 | 1.875 | 47.62 |
| ¾ | 19.05 | 1.875 | 47.62 |
| 1 | 25.40 | 1.875 | 47.62 |
| 1½ | 38.10 | 2.250 | 57.15 |
| 2 | 50.80 | 3.000 | 76.20 |
| 2½ | 63.50 | 3.000 | 76.20 |
| 3 | 76.20 | 3.250 | 82.55 |
| 4 | 101.60 | 3.875 | 98.42 |
| 5 | 127.00 | 5.000 | 127.00 |
| 6 | 152.40 | 5.000 | 127.00 |
| 8 | 203.20 | 7.000 | 177.80 |
| 10 | 254.00 | 8.500 | 215.90 |
| 12 | 304.80 | 10.00 | 254.00 |
B7WWW 2D Drawing
