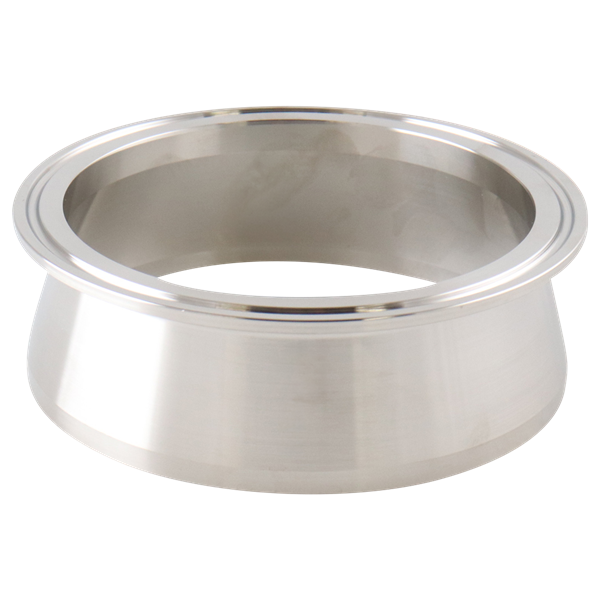

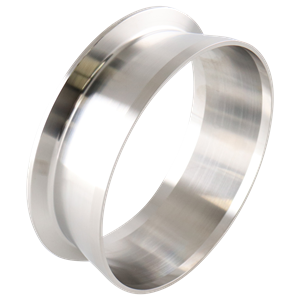

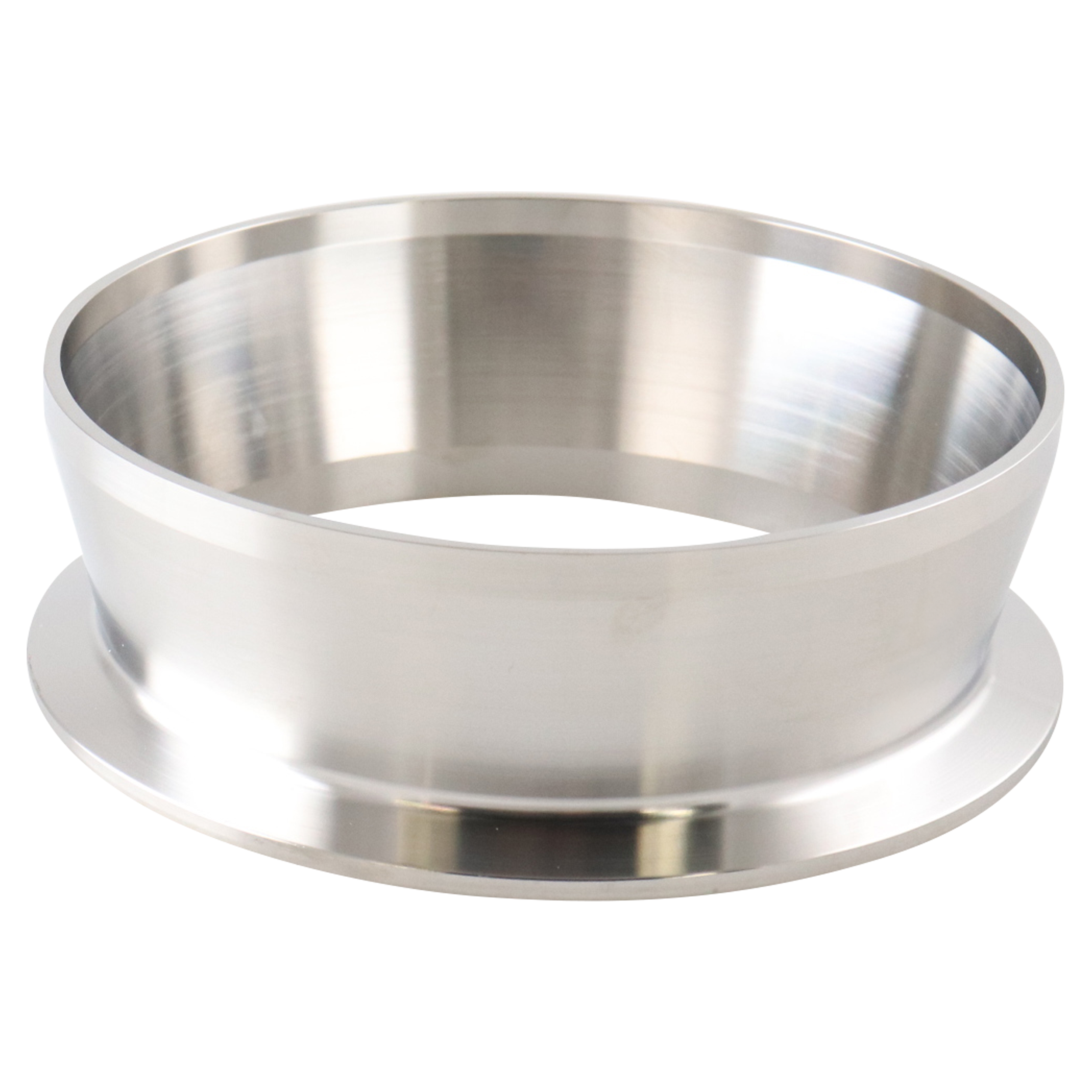

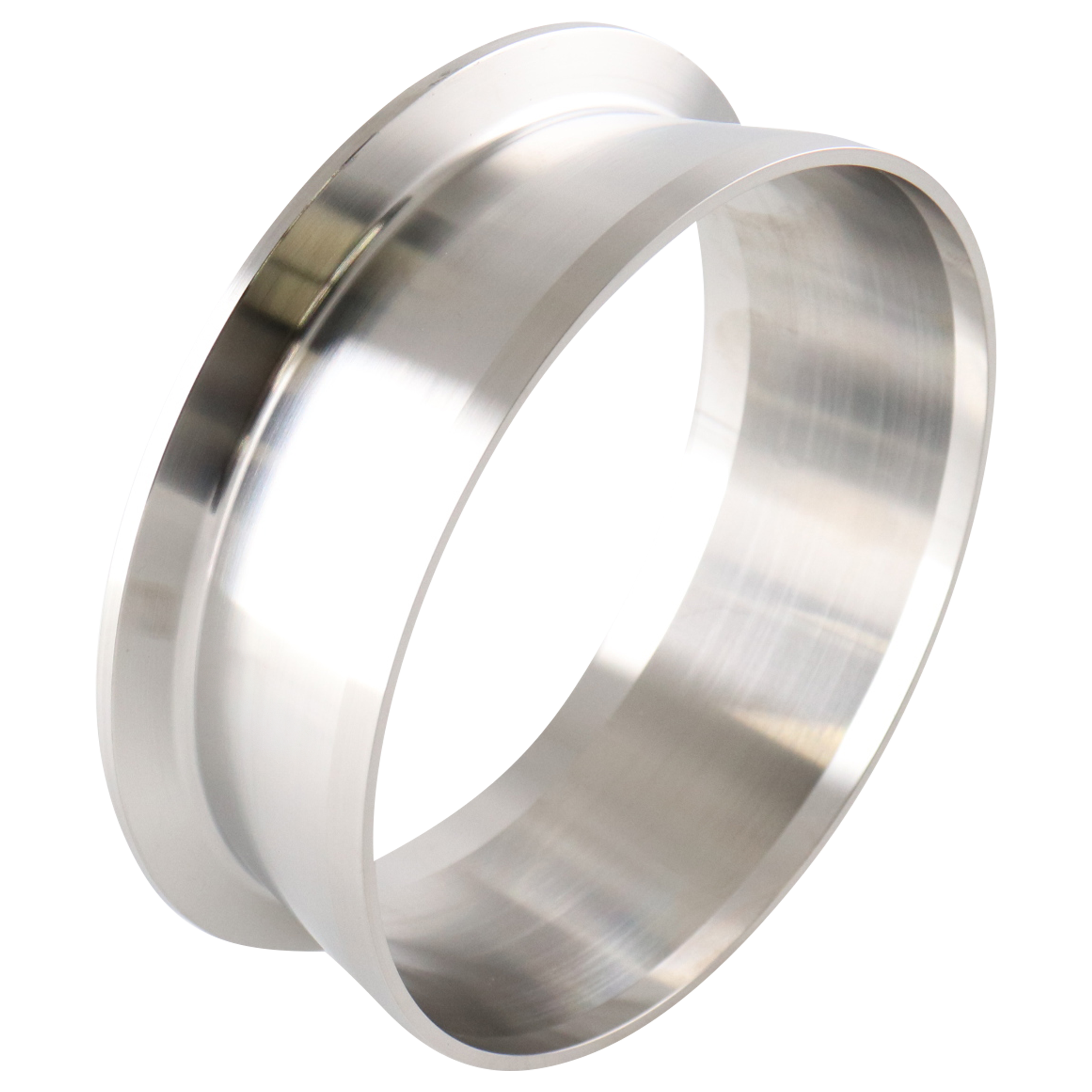

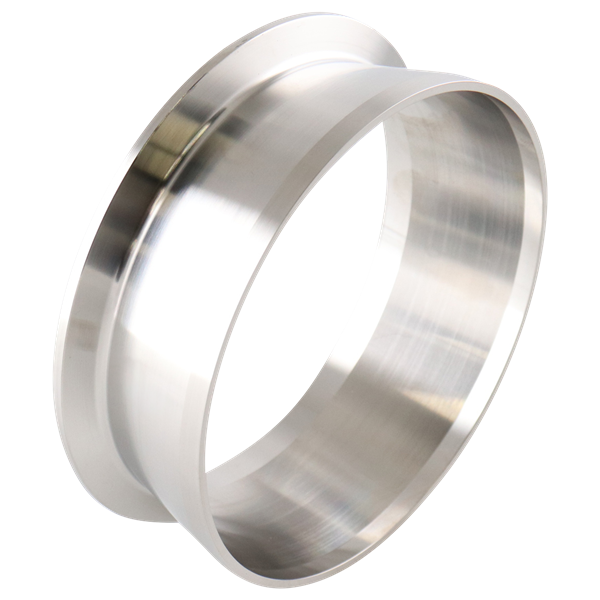

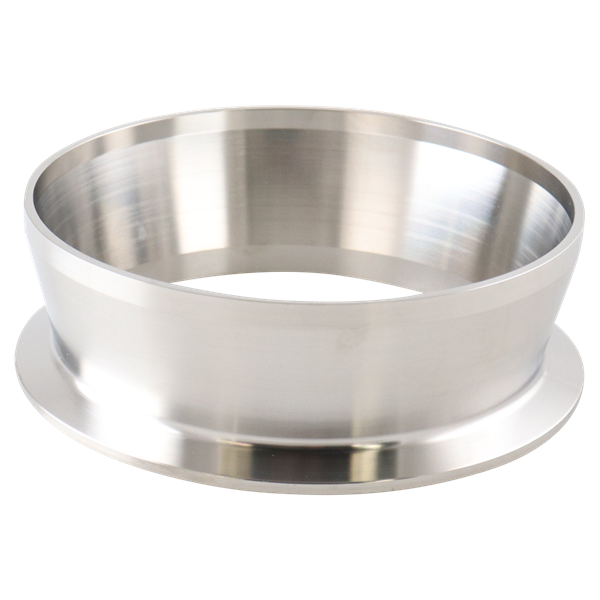

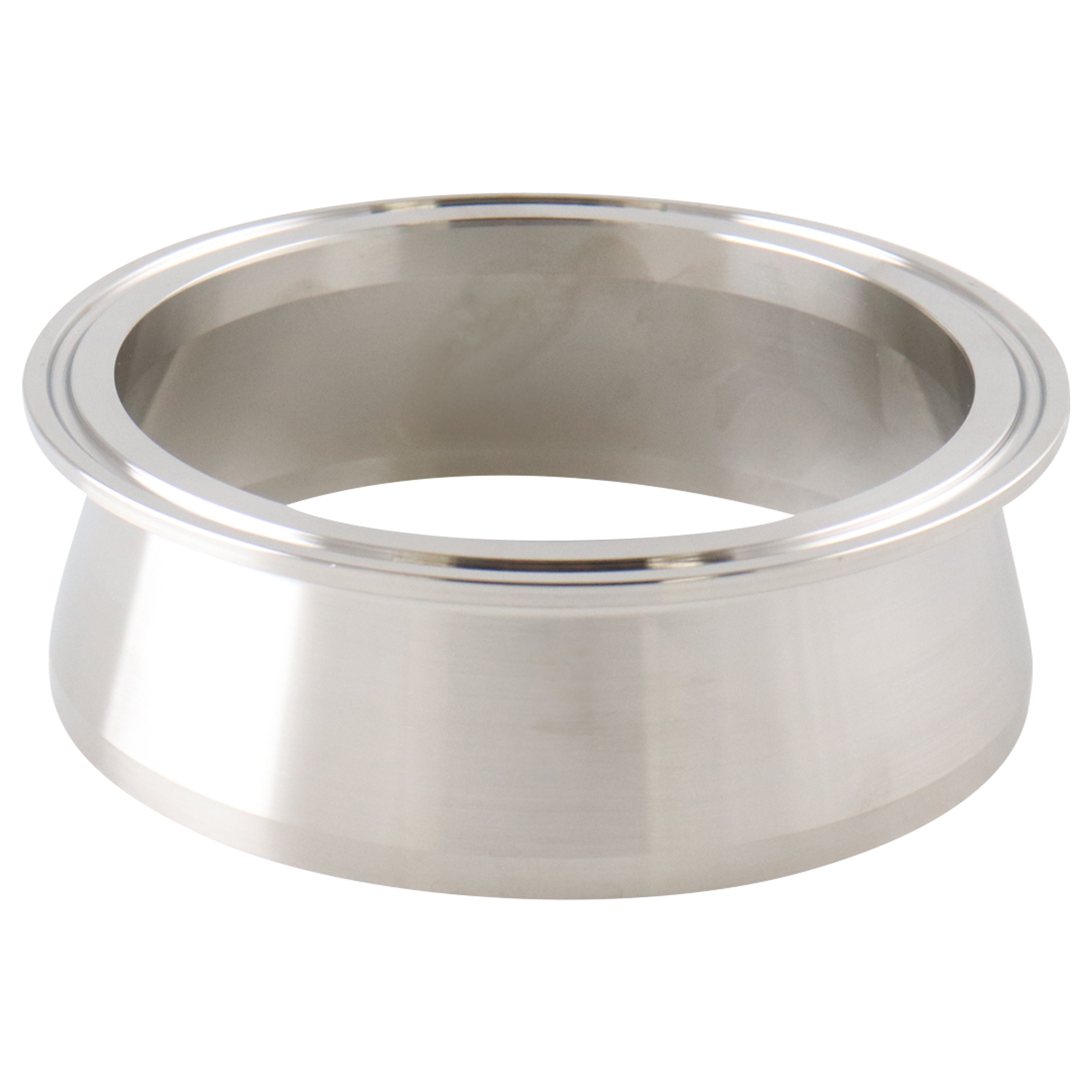

ADAPTER 4" TC X 4" BW SCH 5 PIPE 316L SA479 1.5" OAL

14MPWS40P5

USUALLY SHIPS IN 1-2 DAYS

LEAD TIMES MAY VARY BECAUSE THIS IS AN ASSEMBLED OR MANUFACTURED PART

Net Price: $106.66 / EA

Have an account? Login now.

Availability:
Product Type Tube Fittings
Product Subtype Adapters
Material 316L Stainless Steel
Size 1 4"
Connection Type 1 Tri-Clamp
Size 2 4"
Connection Type 2 Butt Weld Pipe
Length 1.5" OAL
Fitting Design 14MPWS
Wall Thickness Sch 5
Weight 0.60000

14MPW(pipesize)P

Butt Weld x Tri-Clamp Pipe Adapter | 14MPWS(Pipe Size)P10-Material
Nominal Size Sch 10 Pipe Wall Thickness Pipe OD Length A
(in) (mm) (in) (mm) (in) (mm) (in) (mm)
½ 12.70 0.083 2.11 0.840 21.34 1.750 44.45
¾ 19.05 0.083 2.11 1.050 26.67 1.750 44.45
1 25.40 0.109 2.77 1.315 33.40 1.500 38.10
1½ 38.10 0.109 2.77 1.900 48.26 1.500 38.10
2 50.80 0.109 2.77 2.375 60.33 1.500 38.10
2½ 63.50 0.120 3.05 2.875 73.03 1.500 38.10
3 76.20 0.120 3.05 3.500 88.90 1.500 38.10
4 101.60 0.120 3.05 4.500 114.30 1.500 38.10
