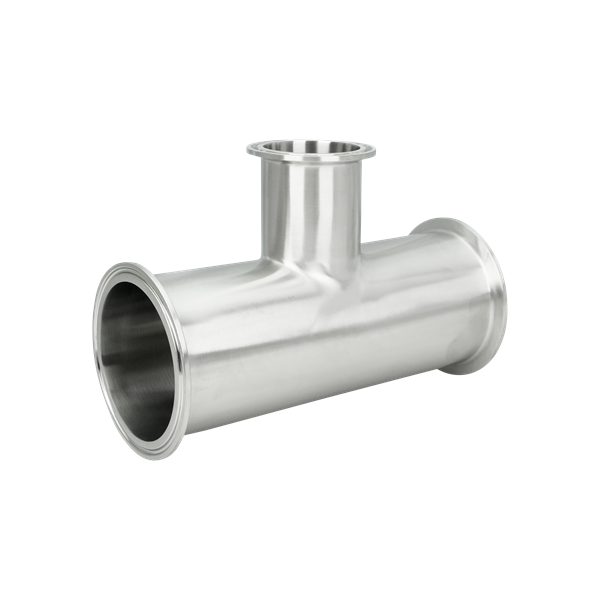

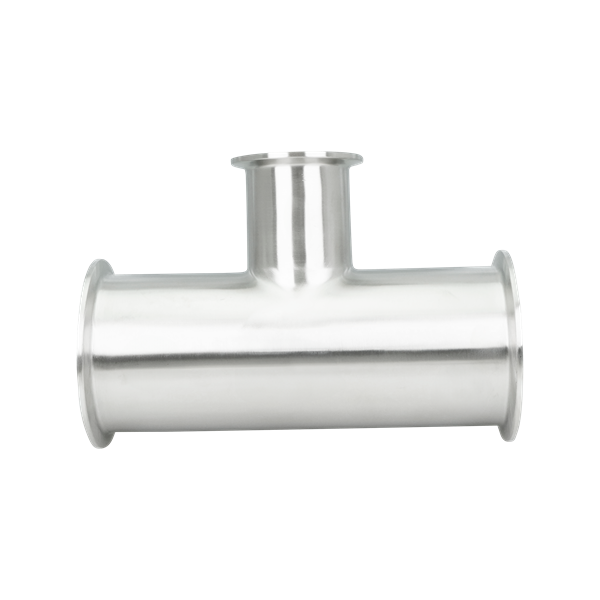

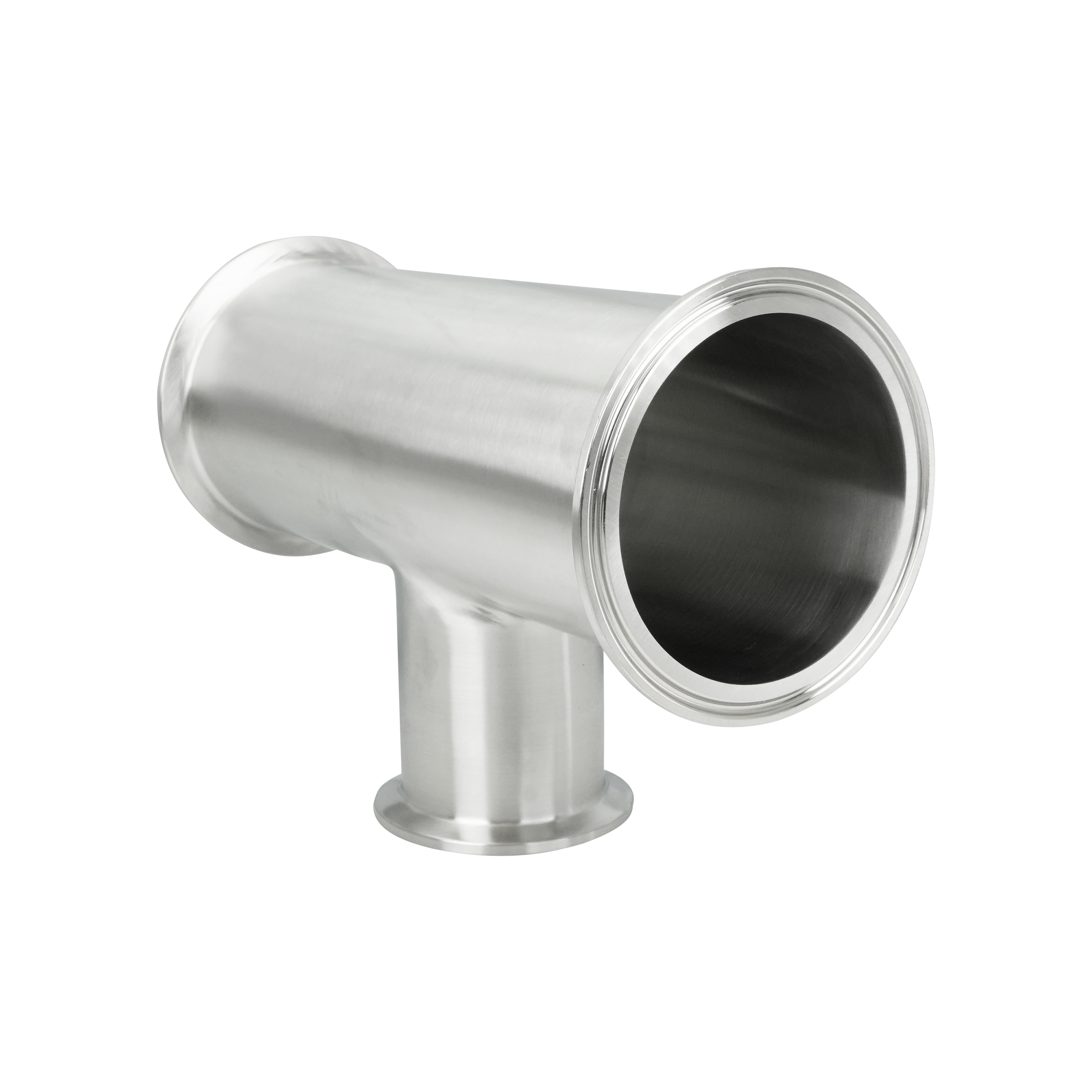

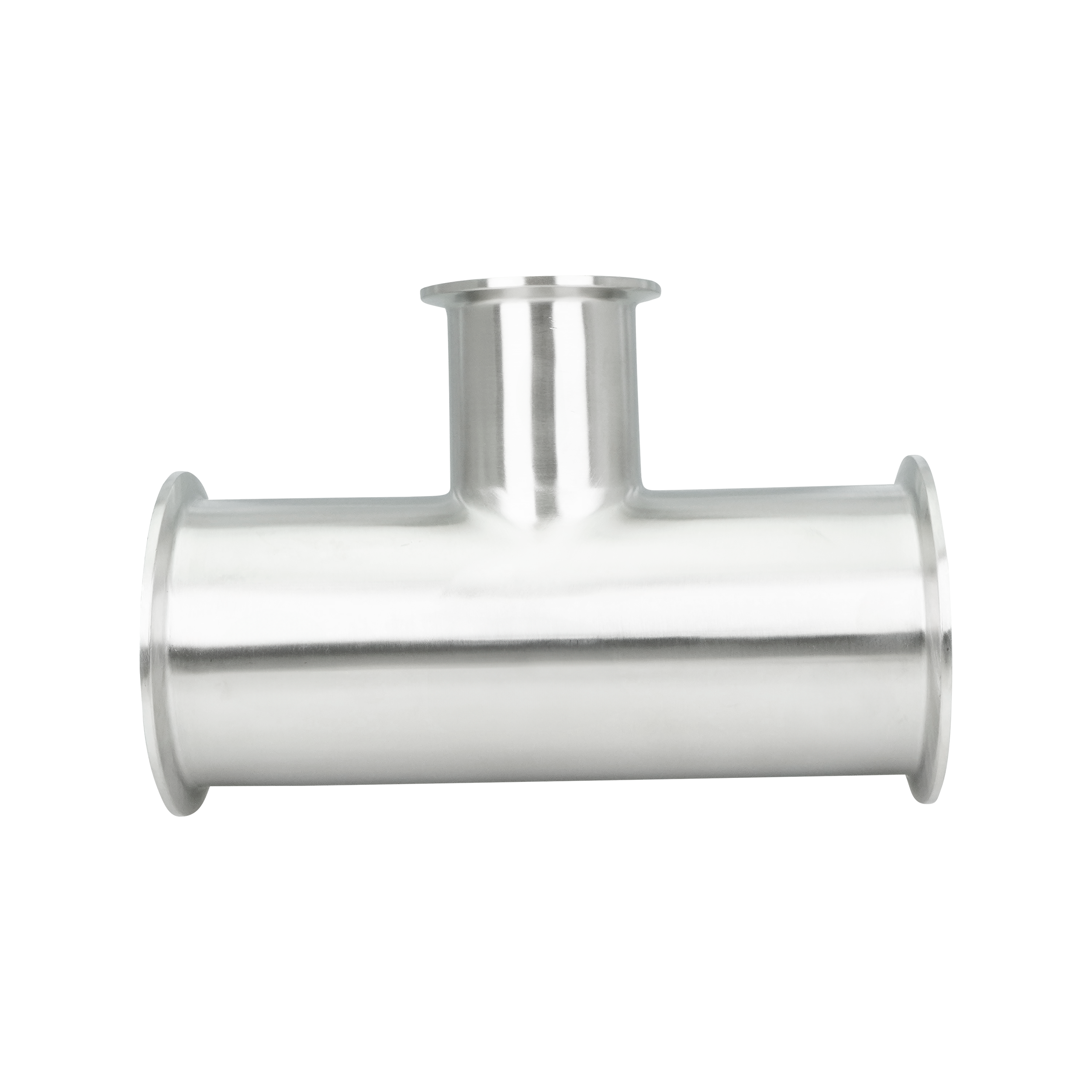

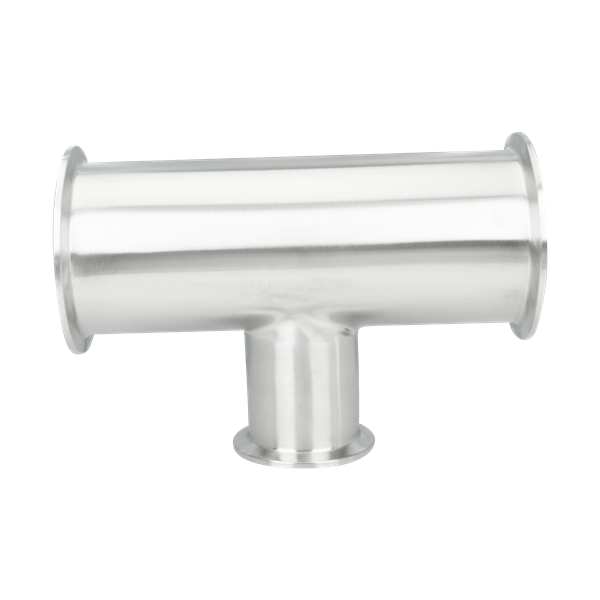

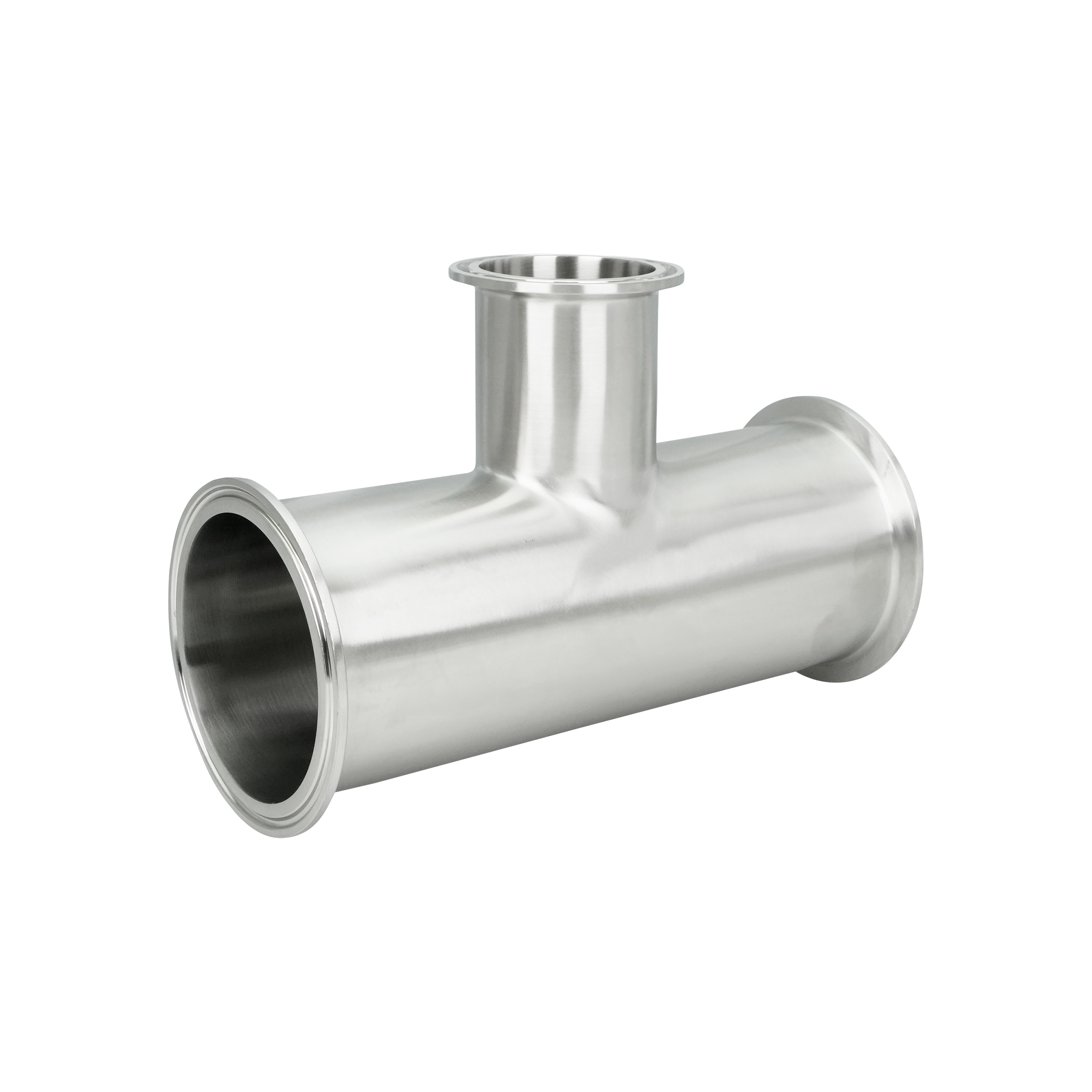

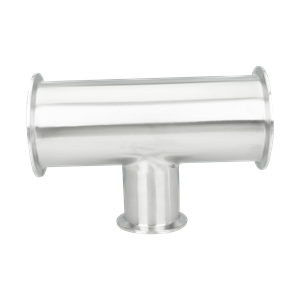

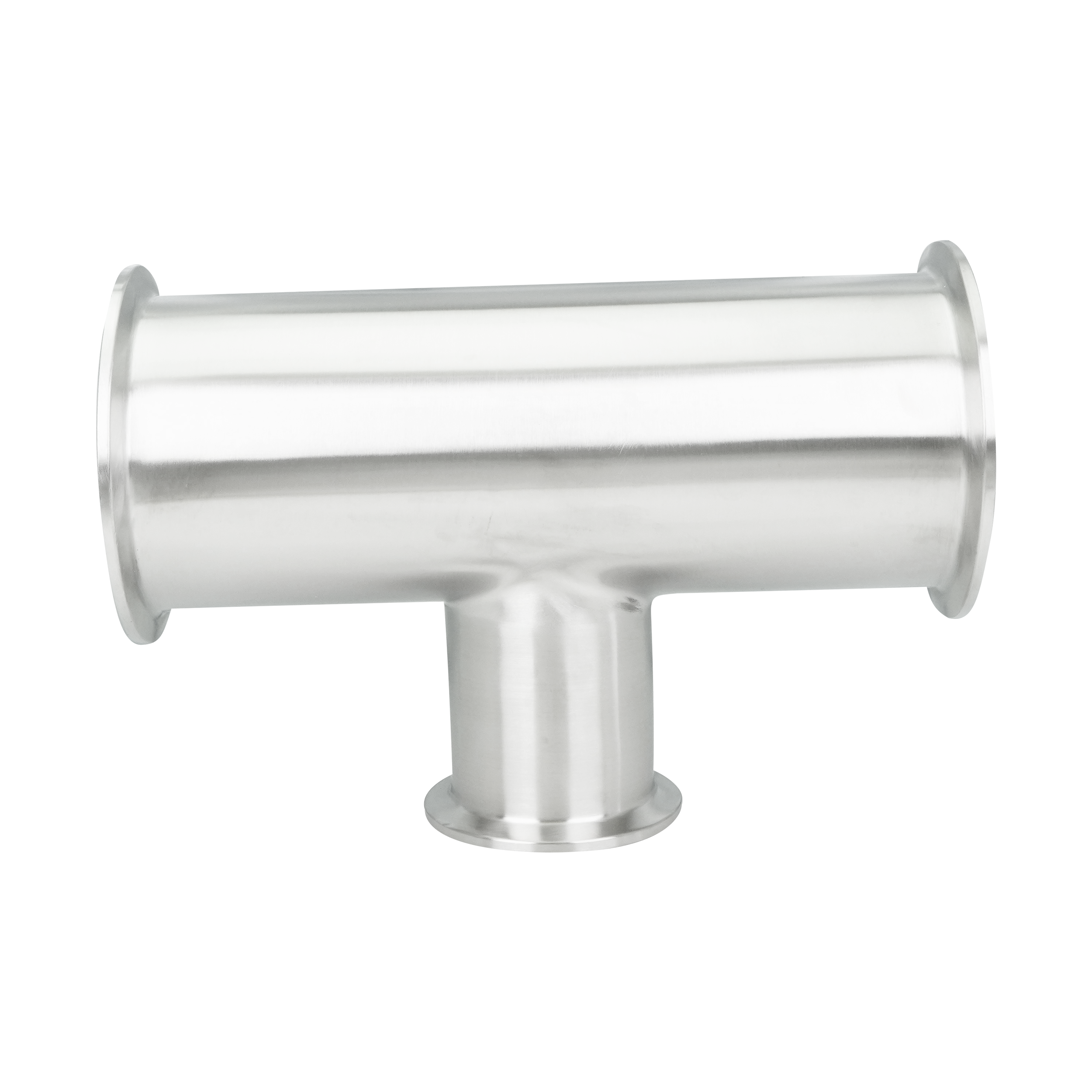

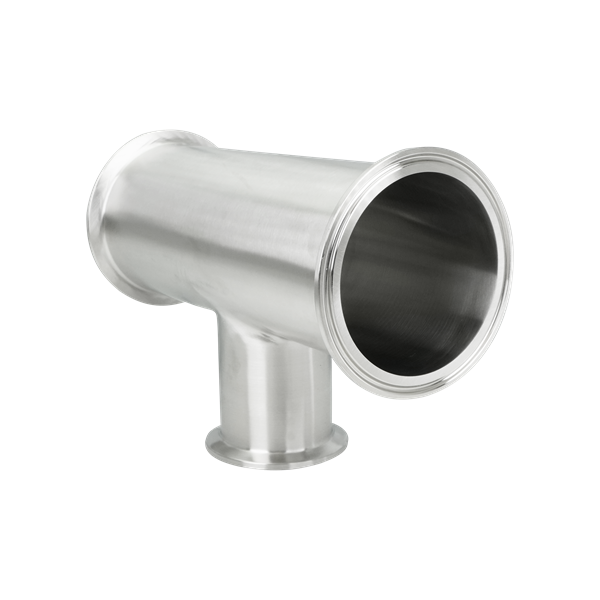

REDUCING TEE 2X1.5 TC 304 32RA ID 32RA OD

B7RMP-2X1.5-304-7

USUALLY SHIPS IN 1-2 DAYS

Net Price: $54.12 / EA

Have an account? Login now.

This item is non-returnable.

Availability:
Product Type Tube Fittings
Product Subtype Reducing Tees
Material 304 Stainless Steel
Finish 32Ra ID / 32Ra OD
Size 1 2"
Connection Type 1 Tri-Clamp
Size 2 1.5"
Connection Type 2 Tri-Clamp
Specification / Standard 3-A
Fitting Design B7RMP
Weight 2.30000

B7RMP Dimensional Diagram

Tri-Clamp Reducing Tee | B7RMP-Size-Material-Finish
Nominal Size A B
(in) (mm) (in) (mm) (in) (mm)
2 x 1 50.80 x 25.40 3.500 88.90 2.875 73.03
2 x 1½ 50.80 x 38.10 3.500 88.90 3.000 76.20
2½ x 2  63.50 x 50.80 3.500 88.90 3.750 95.25
3 x 2  76.20 x 50.80 3.750 95.25 4.000 101.6
3 x 2½  76.20 x 63.50 3.750 95.25 3.750 95.25
4 x 1 101.60 x 25.40 4.497 114.2 3.874 98.40
4 x 1½  101.60 x 38.10 4.497 114.2 4.000 101.6
4 x 2  101.60 x 50.80 4.497 114.2 4.500 114.3
4 x 2½  101.60 x 63.50 4.497 114.2 4.250 107.9
4 x 3  101.60 x 76.20 4.497 114.2 4.250 107.9
