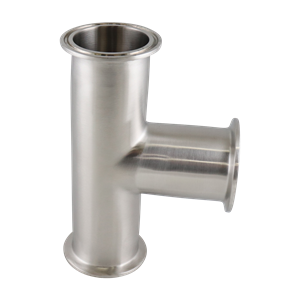

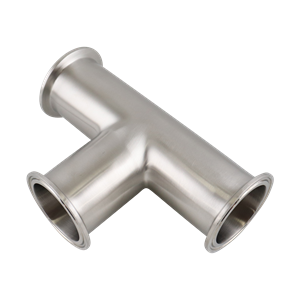

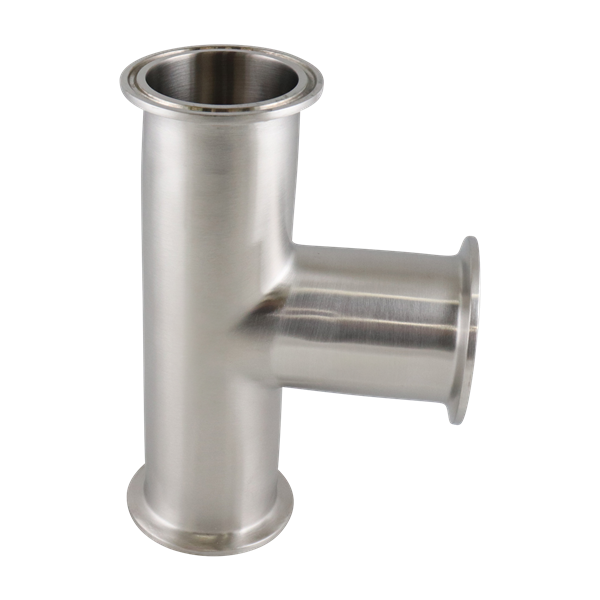

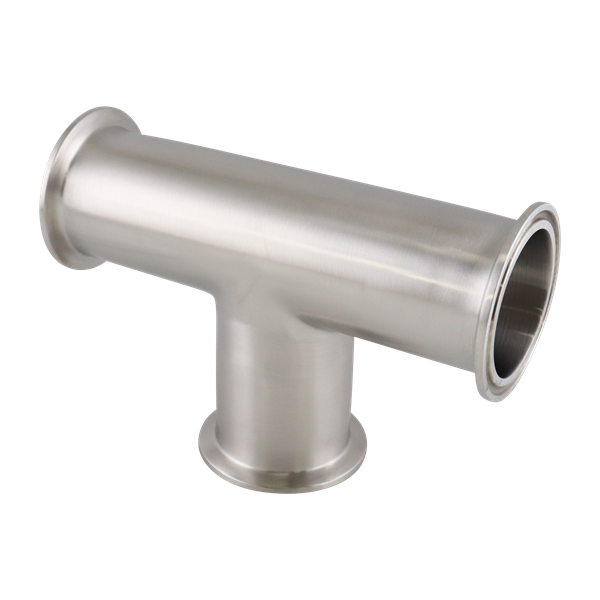

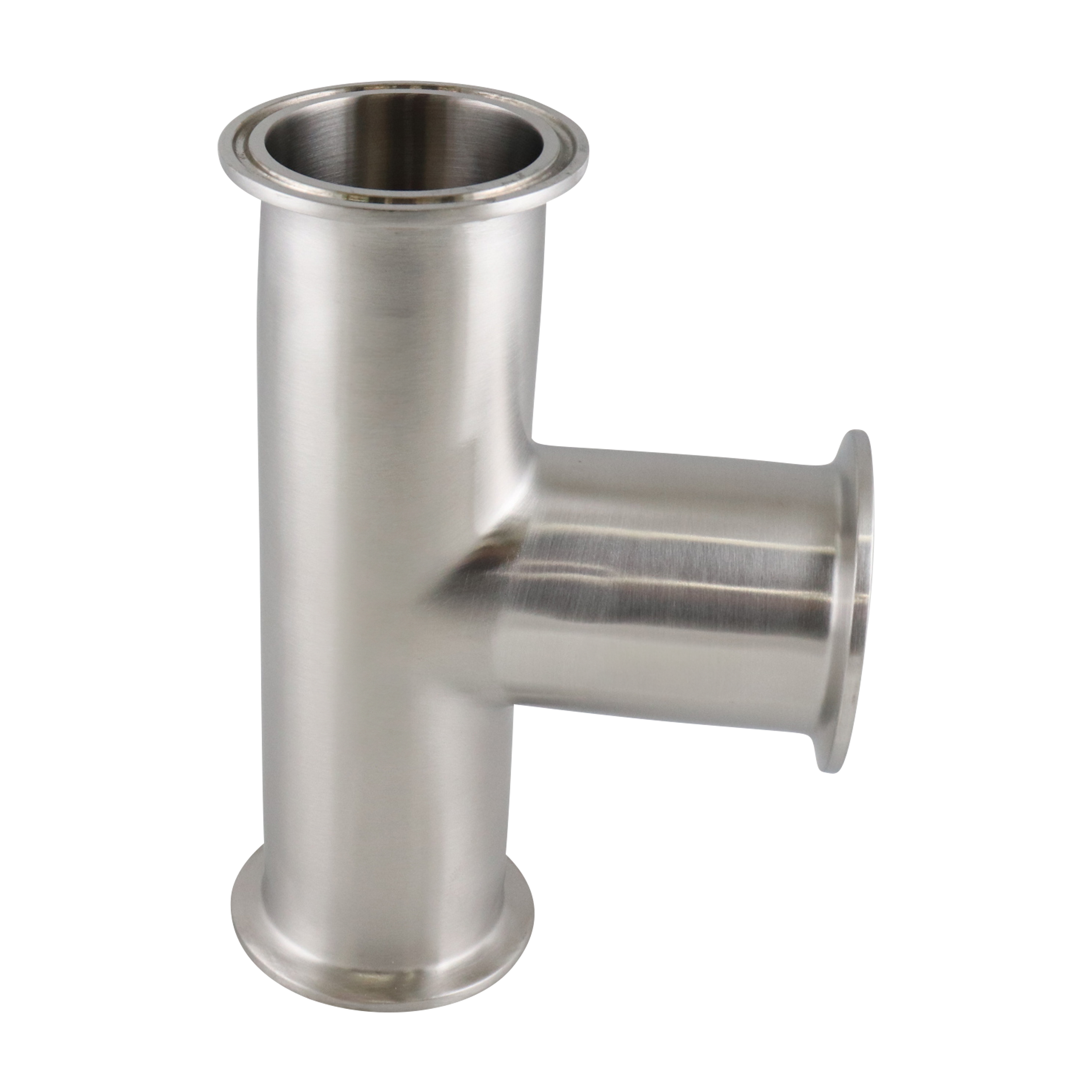

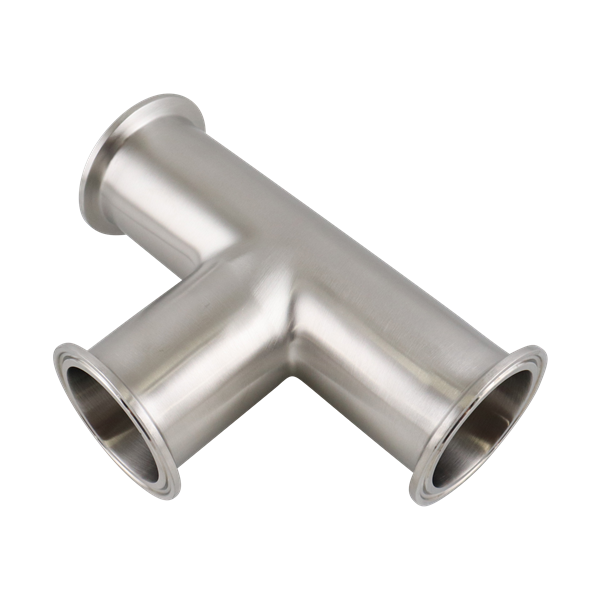

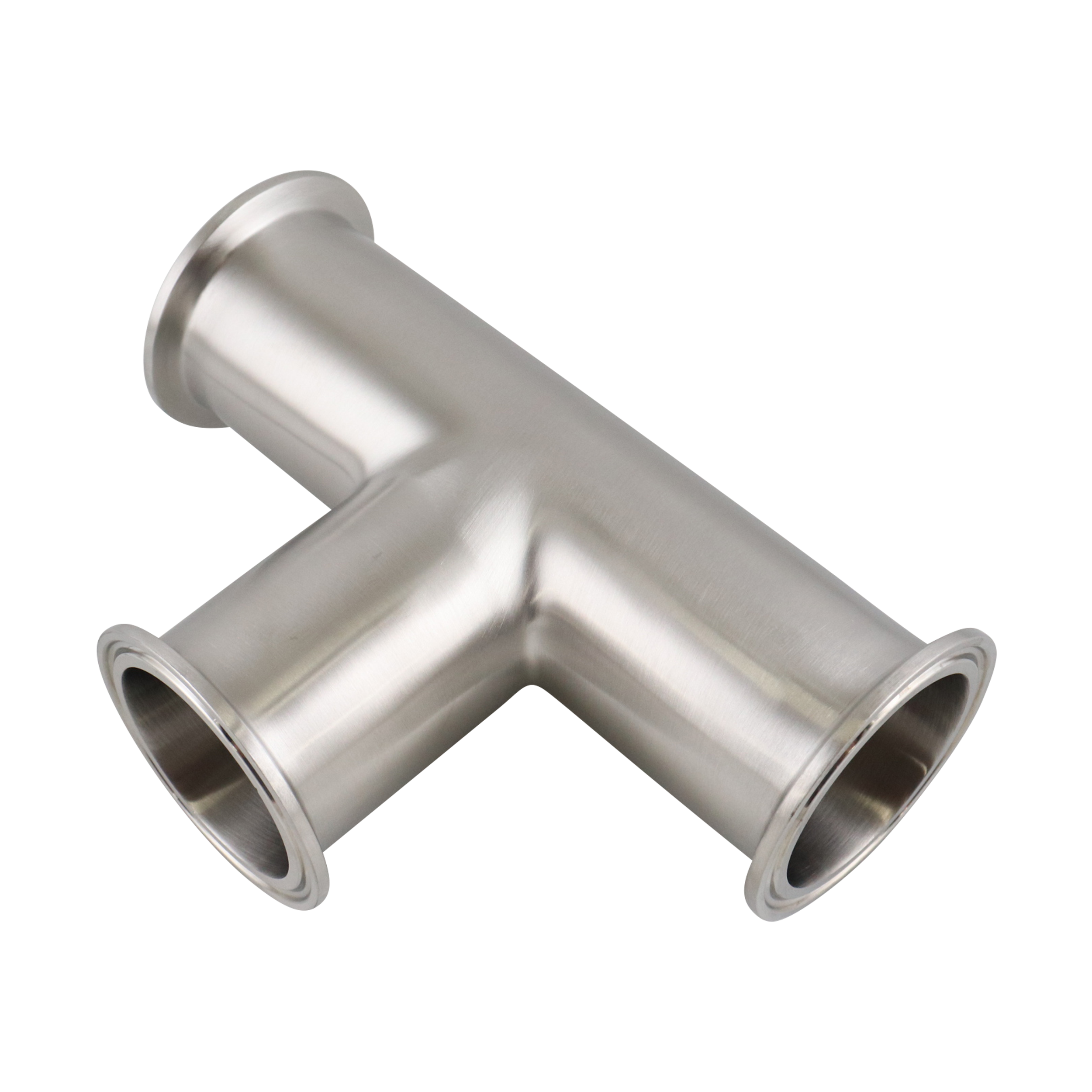

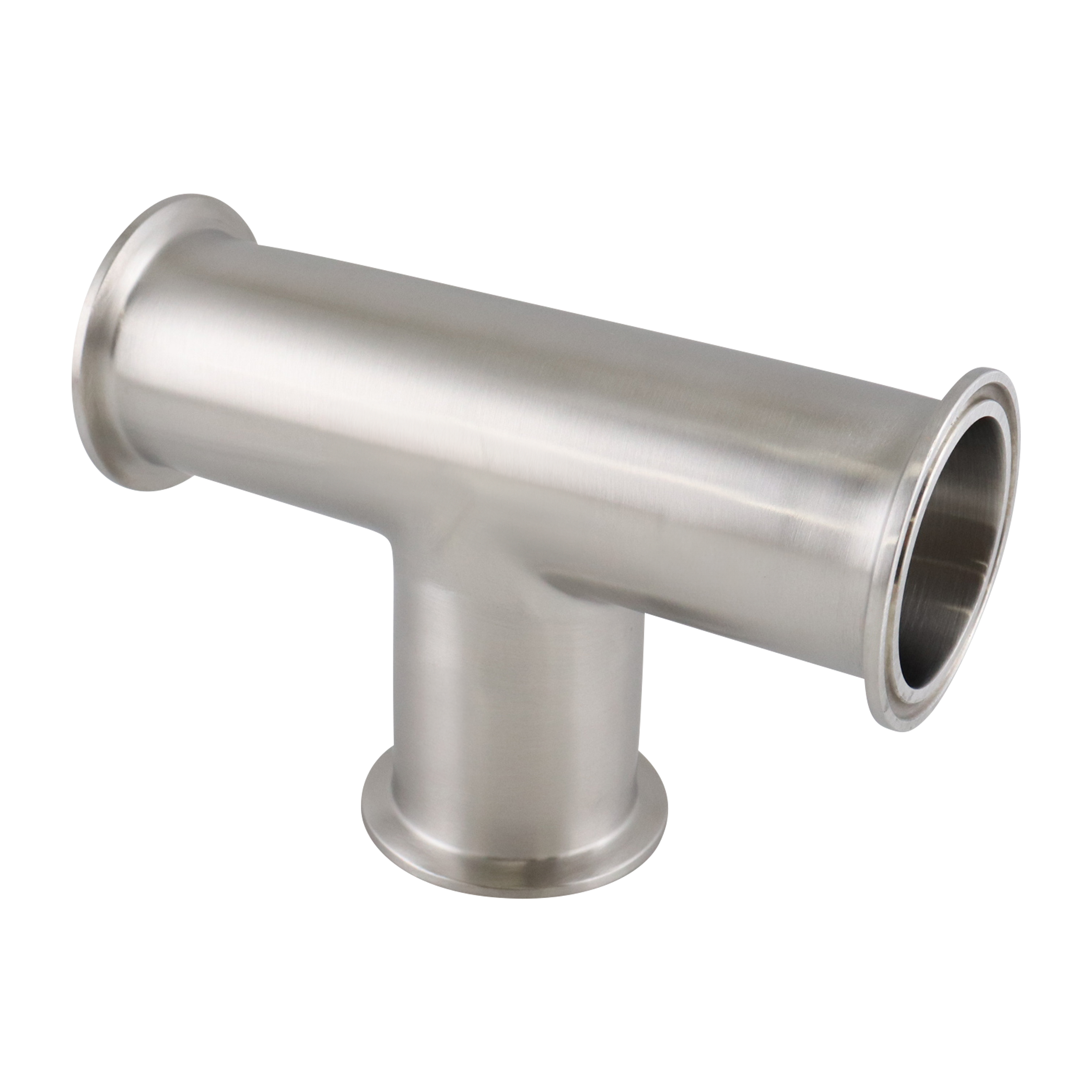

TEE 3" TC 304 32RA ID 32RA OD
B7MP-3-304-7
Net Price: $50.72 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Tees |
| Material | 304 Stainless Steel |
| Finish | 32Ra ID / 32Ra OD |
| Size 1 | 3" |
| Connection Type 1 | Tri-Clamp |
| Size 2 | 3" |
| Connection Type 2 | Tri-Clamp |
| Specification / Standard | 3-A |
| Fitting Design | B7MP |
| Weight | 2.15000 |
Dimensional Data
Tri-Clamp Tee | B7MP-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 2.375 | 60.325 |
| 1½ | 38.10 | 2.75 | 69.85 |
| 2 | 50.80 | 3.50 | 88.90 |
| 2½ | 63.50 | 3.50 | 88.90 |
| 3 | 76.20 | 3.75 | 95.25 |
| 4 | 101.60 | 4.50 | 114.30 |
| 6 | 152.40 | 6.50 | 165.10 |
