Wilden
WILDEN PS4 DIAPHRAGM PUMP 1.5" ANSI FLANGED CLAMPED PLASTIC PRO-FLO SHIFT POLY WET SIDE POLY PISTON ALUMINUM CHAMBER POLY CENTER POLY AIR PTFE WITH WIL-FLEX BACKUP FULL STROKE DIAPHRAGM PTFE VALVE BALL POLY SEATS PTFE ENCAPSULATED VITON O-RINGS AODD
PS4PPAPPTWSTFPTV
- MPN:
- 04-13292
Net Price: $4,762.00 / EA
This item is non-returnable.
- Availability:
Spare Parts
- Total: 2
| Product | Availability |
Price
|
||
|---|---|---|---|---|

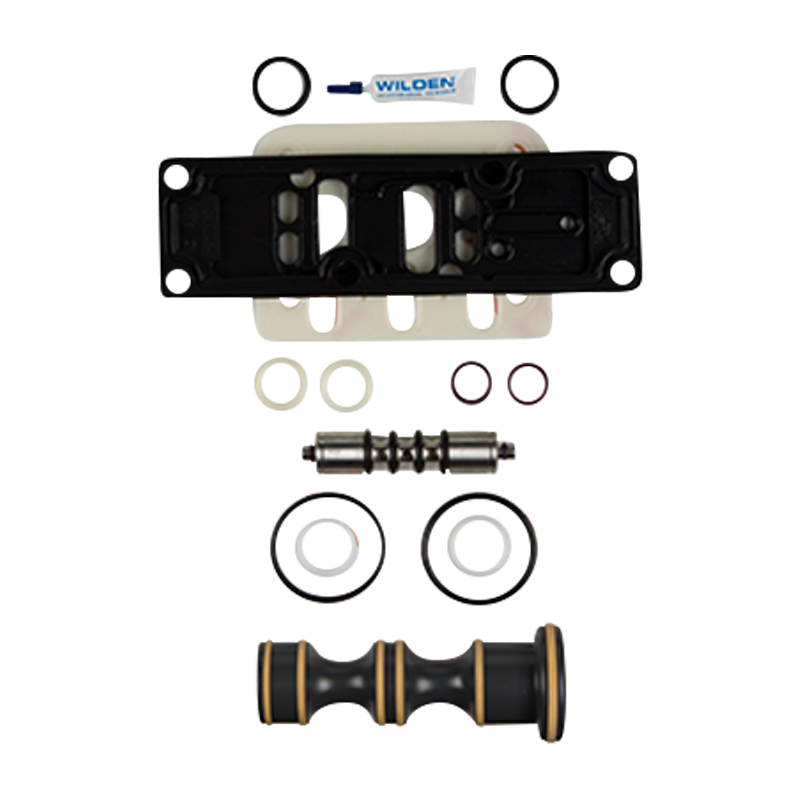

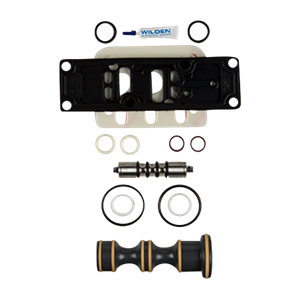

| WILDEN REPAIR KIT AIR |
$700.50 / EA |
|
||
| WILDEN REPAIR KIT WET 1.5" ORIGINAL PLASTIC PTFE W/ WILFLEX |
$1,441.50 / EA |
|
- Total: 2
Suggested products
Attributes
| Brand | Wilden |
|---|---|
| Product Type | Pumps |
| Product Subtype | Diaphragm Pumps |
| Series | Pro-Flo Shift Series |
| Model | PS4 |
| Material | Polypropylene |
| Size 1 | 1.5" |
| Connection Type 1 | Flange |
| Diaphragm Material | Teflon / Wil-Flex® |
| Weight | 40.20000 |
- Manufacturer:
- PSG California LLC
- MPN:
- 04-13292
Dimensional Data
PS4 Poly Dimensional Diagram
| A | B | C | D | E | F | G | H | J | K | L | M | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 15.5 | 394 | 3.1 | 79 | 12.0 | 304 | 18.3 | 465 | 21.0 | 532 | 20.8 | 528 | 4.8 | 122 | 1.9 | 48 | 5.4 | 137 | 13.0 | 331 | 17.5 | 444 | 11.2 | 286 |
Resources
0Data Sheets
Wilden Pro-Flo Shift PS4 Clamped Plastic Data Sheet
1Manuals
22D Drawings
Wilden Pro-Flo Shift PS4 Clamped Plastic 2D Drawing
8Other Literature
