45 DEGREE ELBOW 1.5" TC X BW 316L 20RA ID 32RA OD SF1 BPE
B2KMW-1.5-316L-PL
Net Price: $45.40 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Elbows |
| Material | 316L Stainless Steel |
| Finish | 20Ra ID / 32Ra OD |
| Size 1 | 1.5" |
| Connection Type 1 | Tri-Clamp |
| Size 2 | 1.5" |
| Connection Type 2 | Butt Weld |
| Shape | 45 Degree |
| Specification / Standard | ASME BPE |
| Fitting Design | B2KMW |
| Weight | 0.42000 |
Dimensional Data

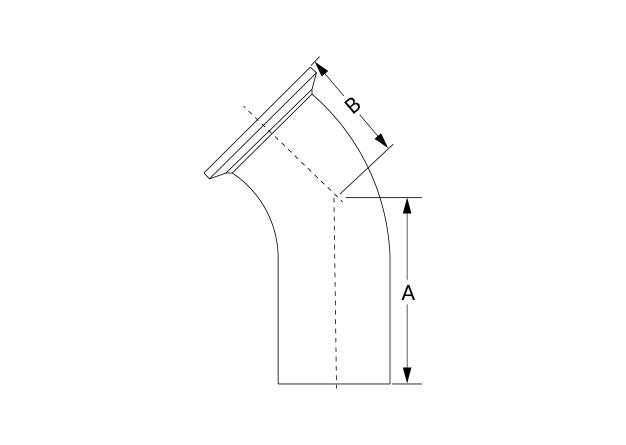

45° Tri-Clamp x Butt Weld Elbow | B2KMW-Size-Material-Finish
| Nominal Size | A | B | |||
|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) |
| ¼ | 6.35 | 2.000 | 50.80 | 1.000 | 25.40 |
| ⅜ | 9.53 | 2.000 | 50.80 | 1.000 | 25.40 |
| ½ | 12.70 | 2.250 | 57.15 | 1.000 | 25.40 |
| ¾ | 19.05 | 2.250 | 57.15 | 1.000 | 25.40 |
| 1 | 25.40 | 2.250 | 57.15 | 1.125 | 28.58 |
| 1½ | 38.10 | 2.500 | 63.50 | 1.438 | 36.53 |
| 2 | 50.80 | 3.000 | 76.20 | 1.750 | 44.45 |
| 2½ | 63.50 | 3.375 | 85.73 | 2.063 | 52.40 |
| 3 | 76.20 | 3.625 | 92.08 | 2.375 | 60.33 |
| 4 | 101.60 | 4.500 | 114.30 | 3.125 | 79.38 |
| 6 | 152.40 | 6.250 | 158.75 | 5.250 | 133.35 |
| BPE DT-4.1.1-5 | 2009 BPE DT-13 | |||||
B2KMW 2D Drawing
B2KMW-1.5 3D Model
