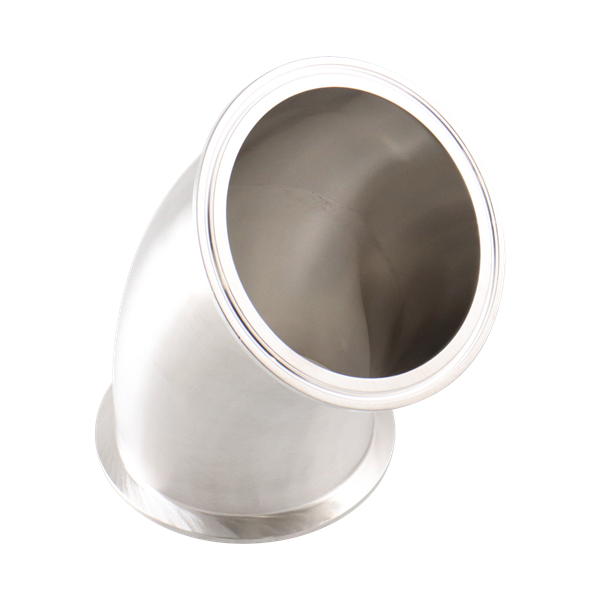

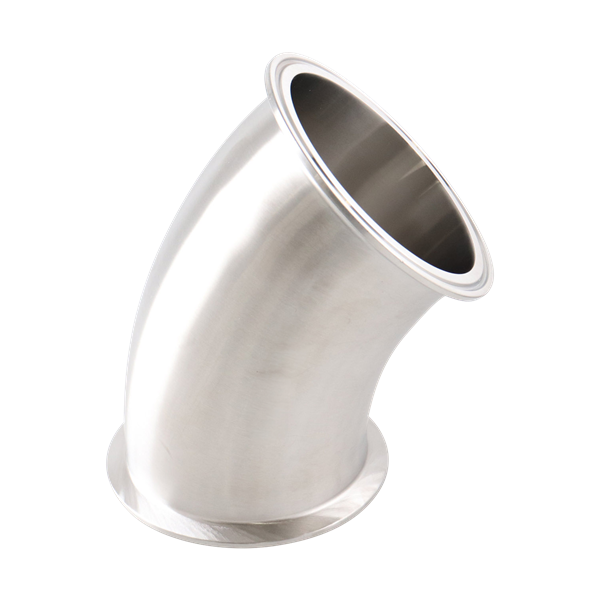

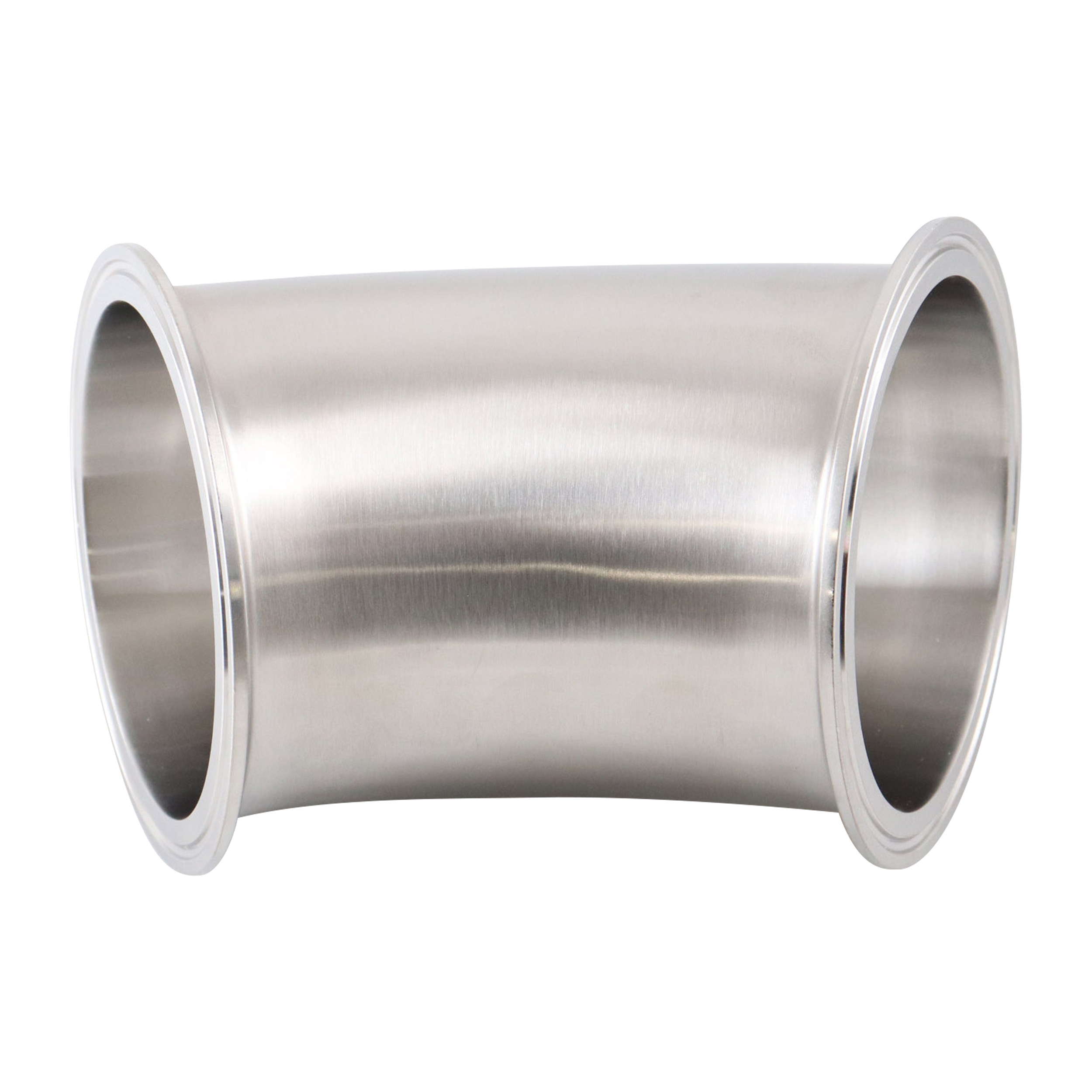

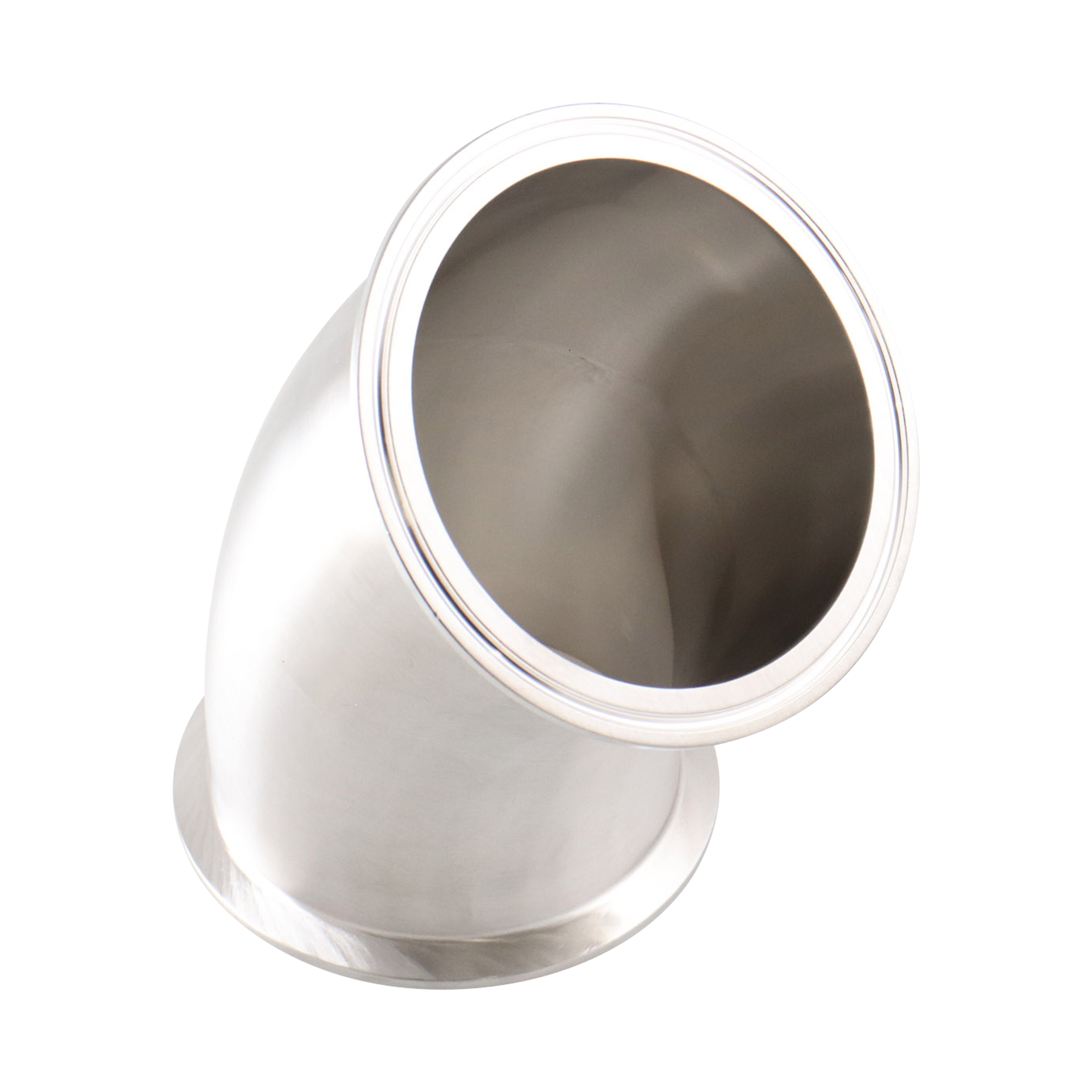

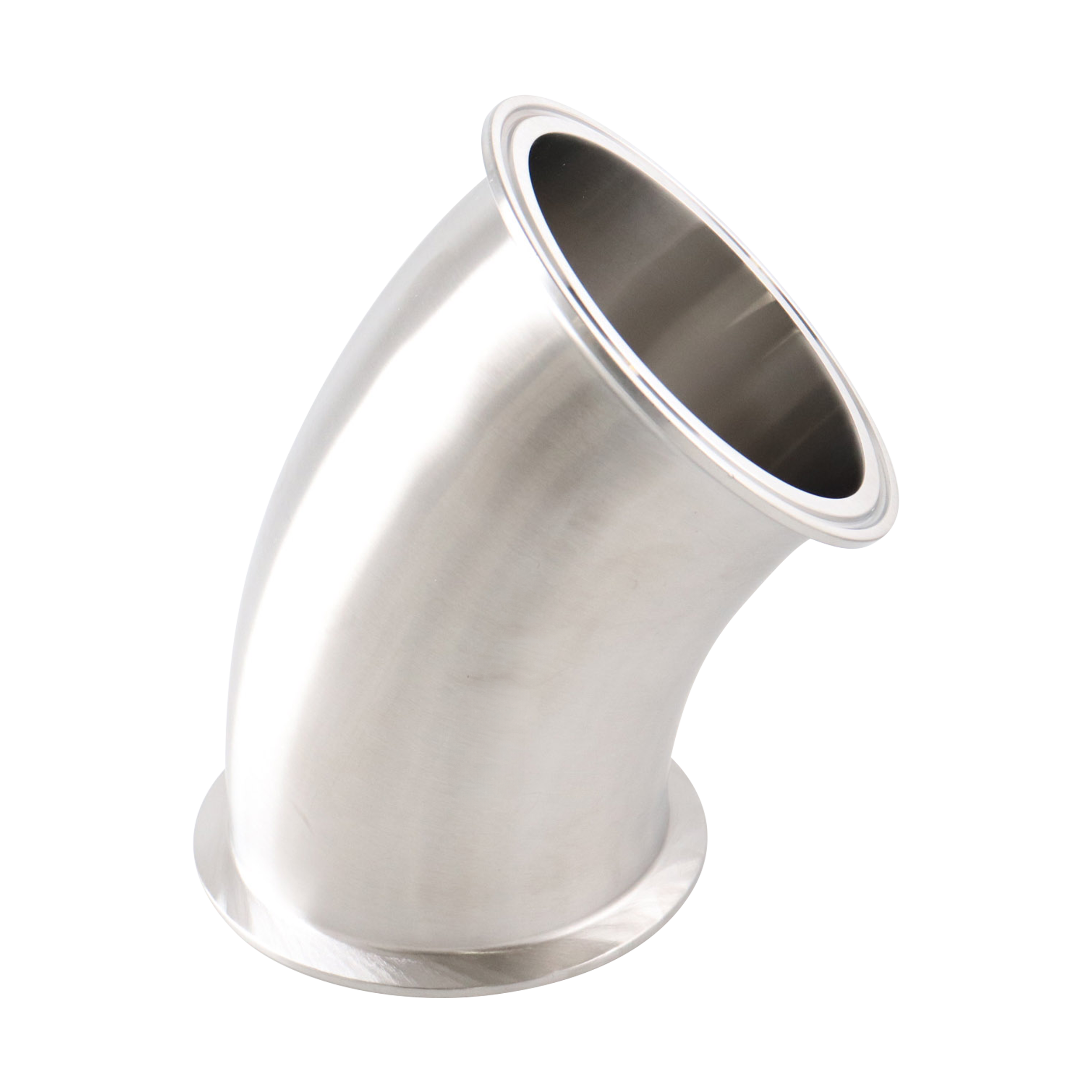

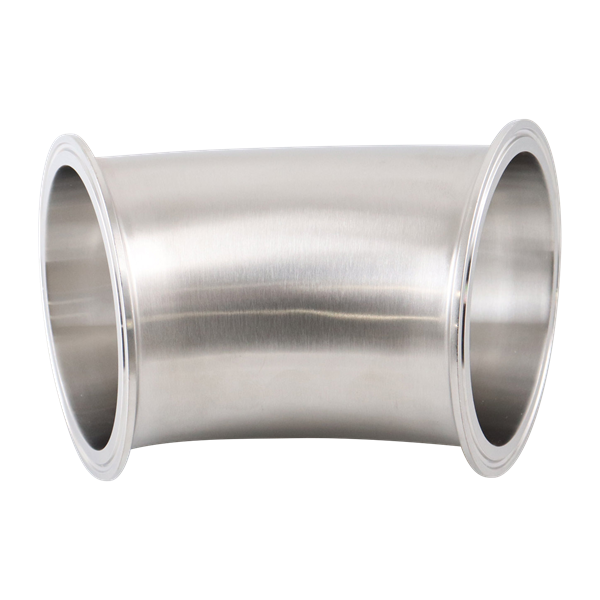

45 DEGREE ELBOW 4" TC 304 32RA ID 32RA OD
B2KMP-4-304-7
Net Price: $53.51 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Elbows |
| Material | 304 Stainless Steel |
| Finish | 32Ra ID / 32Ra OD |
| Size 1 | 4" |
| Connection Type 1 | Tri-Clamp |
| Shape | 45 Degree |
| Specification / Standard | 3-A |
| Fitting Design | B2KMP |
| Weight | 2.20000 |
Dimensional Data
Tri-Clamp 45° Elbows | B2KMP-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| ½ | 12.70 | 1.00 | 25.40 |
| ¾ | 19.05 | 1.00 | 25.40 |
| 1 | 25.40 | 1.13 | 28.70 |
| 1½ | 38.10 | 1.44 | 36.58 |
| 2 | 50.80 | 1.75 | 44.45 |
| 2½ | 63.50 | 2.06 | 52.32 |
| 3 | 76.20 | 2.38 | 60.45 |
| 4 | 101.60 | 3.13 | 79.50 |
| 6 | 152.40 | 5.25 | 133.35 |
