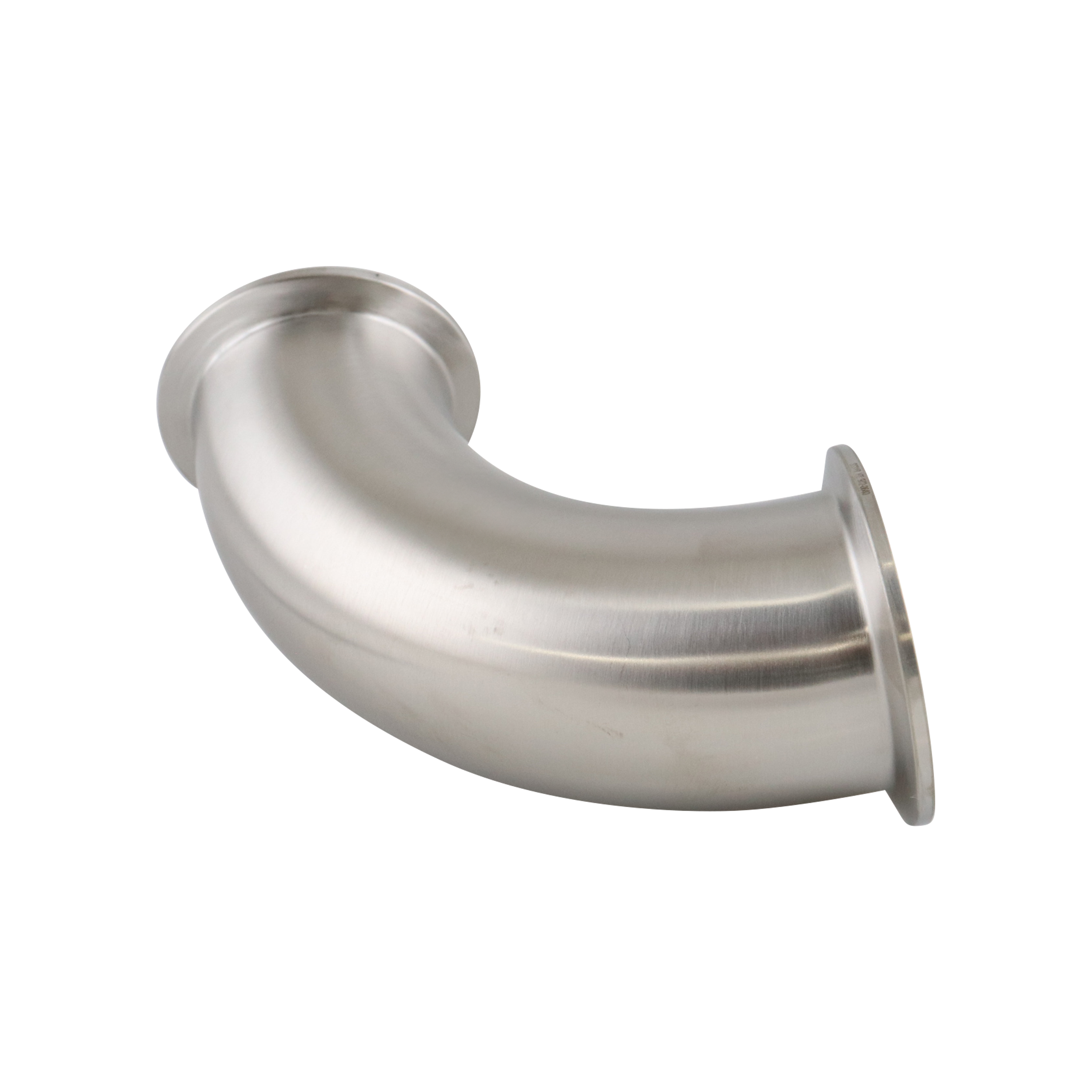

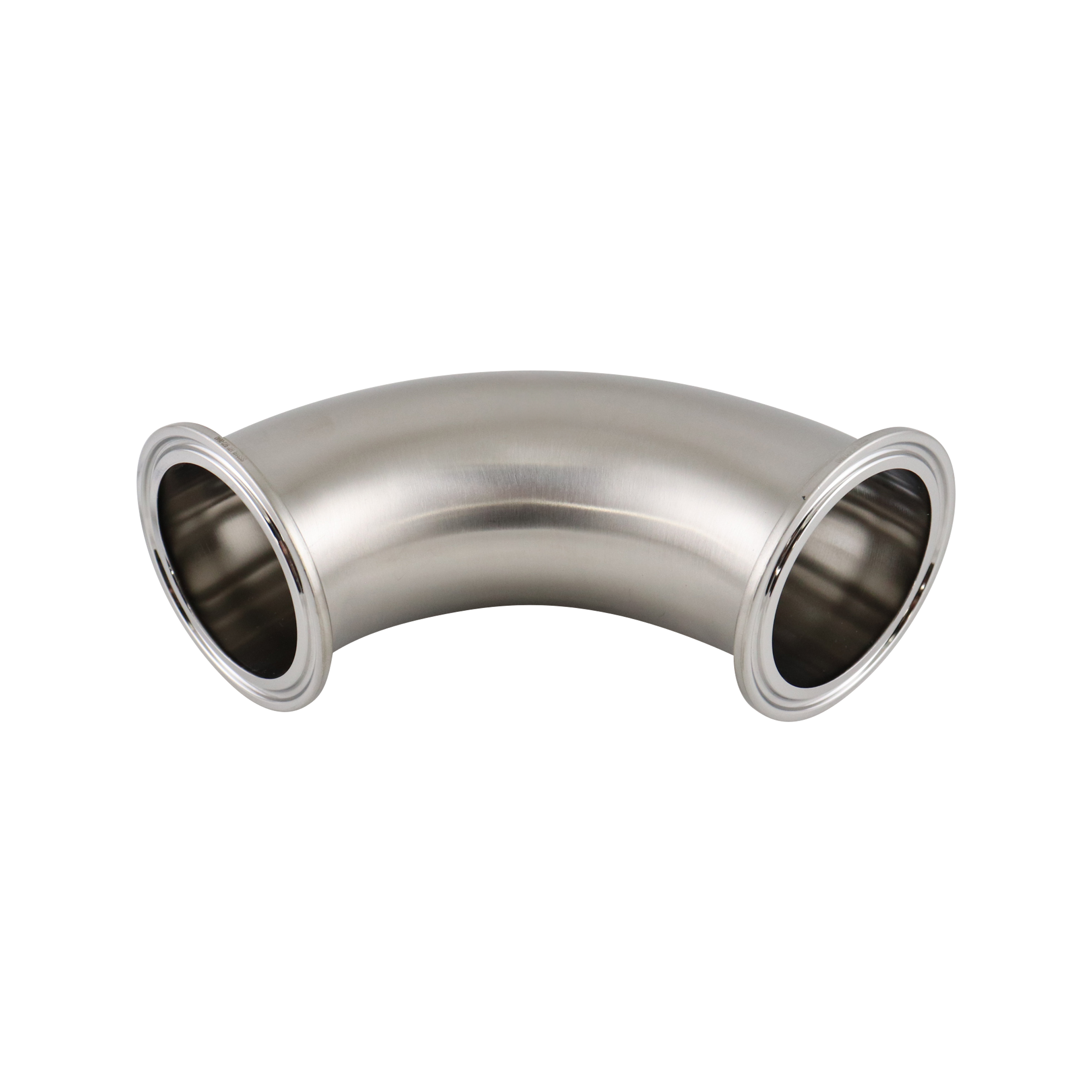

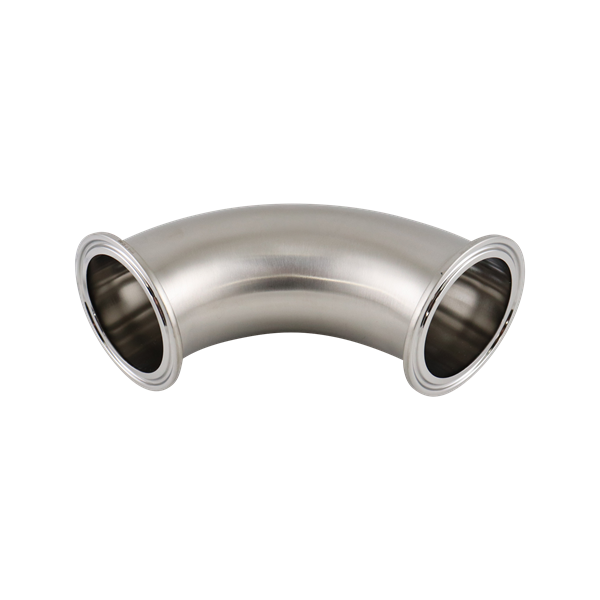

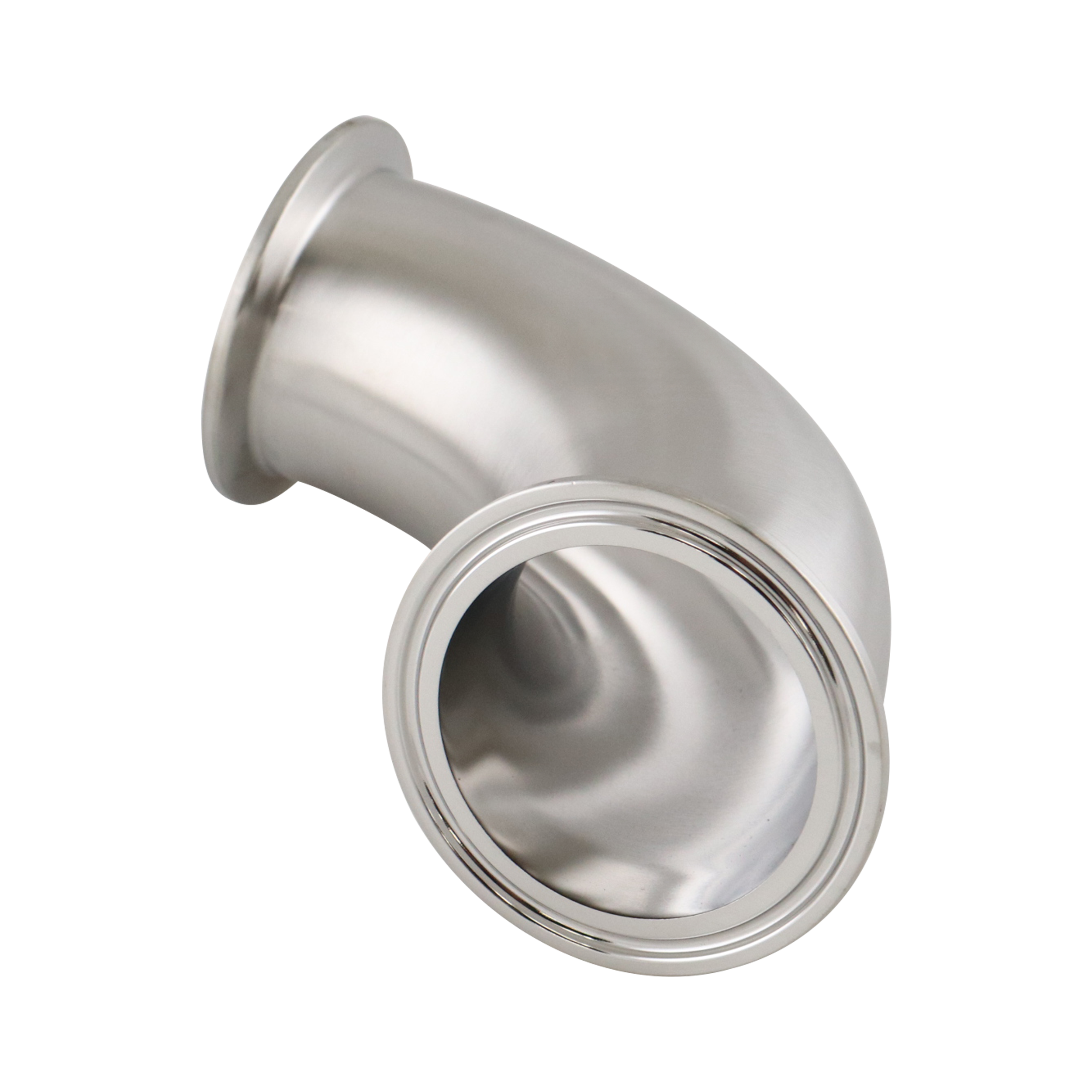

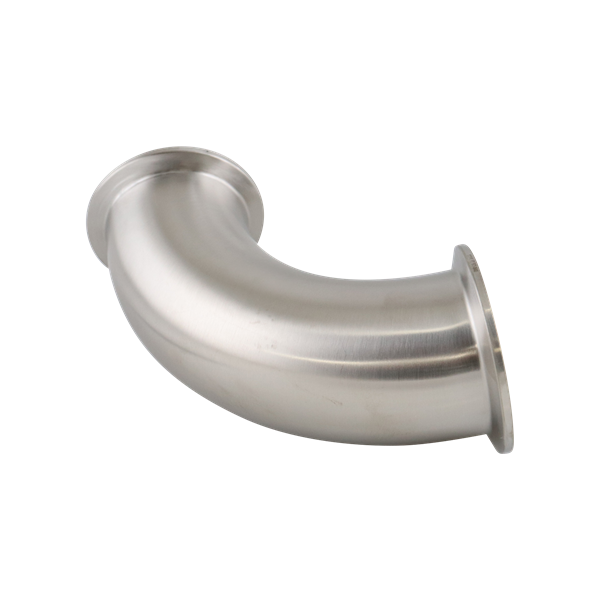

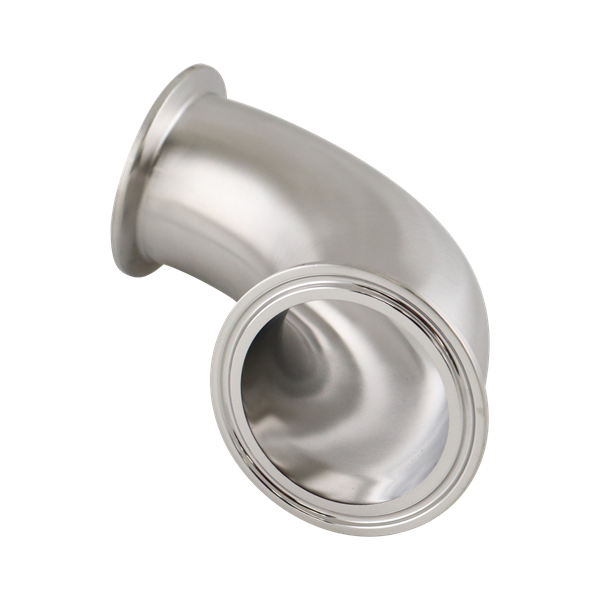

90 DEGREE ELBOW 2" TC 304 32RA ID 32RA OD
B2CMP-2-304-7
Net Price: $17.64 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Elbows |
| Material | 304 Stainless Steel |
| Finish | 32Ra ID / 32Ra OD |
| Size 1 | 2" |
| Connection Type 1 | Tri-Clamp |
| Shape | 90 Degree |
| Specification / Standard | 3-A |
| Fitting Design | B2CMP |
| Weight | 0.90000 |
Dimensional Data
Tri-Clamp 90° Elbows | B2CMP-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 2.00 | 50.80 |
| 1½ | 38.10 | 2.75 | 69.85 |
| 2 | 50.80 | 3.50 | 88.90 |
| 2½ | 63.50 | 4.25 | 107.95 |
| 3 | 76.20 | 5.00 | 127.00 |
| 4 | 101.60 | 6.63 | 168.40 |
| 6 | 152.40 | 10.50 | 266.70 |
