PROCESS HEX HANGER ROD MOUNT ASSEMBLY 1" TUBE 6" LONG 3/8" OD ROD 304 SILICONE ANCHOR LIGHT GREY ACORN NUT GROUP 4
PHH6R1.0T304SAN
Net Price: $48.44 / EA
This item is non-returnable.
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | Syntiro |
|---|---|
| Product Type | Hangers |
| Product Subtype | Hex Hangers |
| Series | PHH Series |
| Model | PHH6R |
| Material | 304 Stainless Steel |
| Size 1 | 1" |
| Color | Gray |
| Orientation / Mount | Welded Rod |
| Insert Material | Silicone |
| Rod Length | 6" |
| Weight | 0.50000 |
Dimensional Data

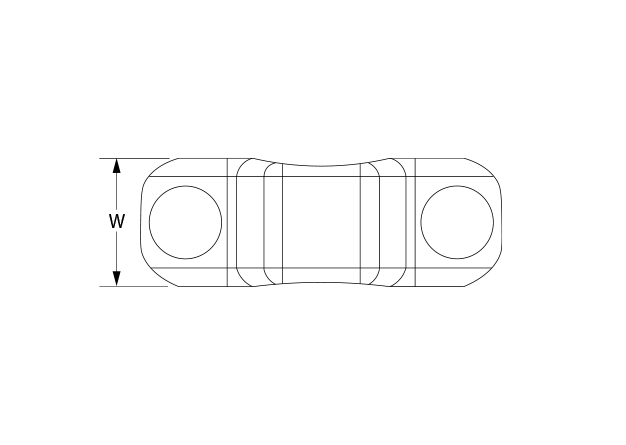

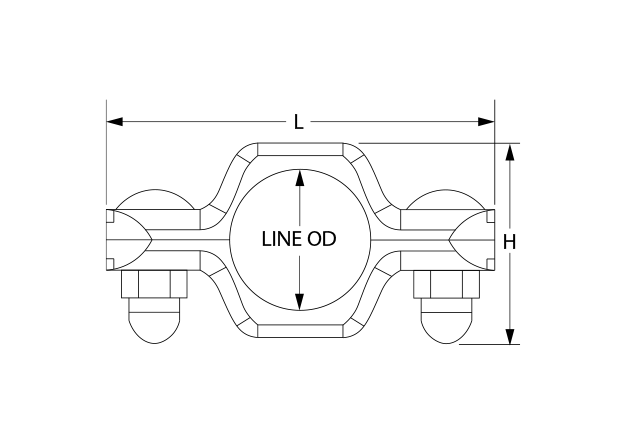

PHHR Tube Dimensional Diagram
| Tube Size | Line OD | H | L | W | |||||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| ½ | 12.70 | 0.50 | 12.70 | 1.15 | 29.21 | 2.80 | 71.12 | 1.10 | 27.94 |
| ¾ | 19.05 | 0.75 | 19.05 | 1.15 | 29.21 | 2.80 | 71.12 | 1.10 | 27.94 |
| 1 | 25.40 | 1.00 | 25.40 | 1.45 | 36.83 | 3.00 | 76.20 | 1.10 | 27.94 |
| 1½ | 38.10 | 1.50 | 38.10 | 1.96 | 49.78 | 4.00 | 101.60 | 1.42 | 36.07 |
| 2 | 50.80 | 2.00 | 50.80 | 2.50 | 63.50 | 4.60 | 116.84 | 1.42 | 36.07 |
| 2½ | 63.50 | 2.50 | 63.50 | 3.00 | 76.20 | 5.10 | 129.54 | 1.42 | 36.07 |
| 3 | 76.20 | 3.00 | 76.20 | 3.50 | 88.90 | 5.60 | 142.24 | 1.42 | 36.07 |
| 4 | 101.60 | 4.00 | 101.60 | 4.55 | 115.57 | 6.75 | 171.45 | 1.42 | 36.07 |
| 6 | 152.40 | 6.00 | 152.40 | 6.40 | 162.56 | 9.00 | 228.60 | 1.48 | 37.59 |
