PROCESS HEX HANGER COUPLING MOUNT ASSEMBLY 3" TUBE 304 3/8-16" THREADED CONNECTION SILICONE ANCHOR LIGHT GREY ACORN NUT GROUP 2

PHHTC3.0T304SAN

Net Price: $41.42 / EA

Have an account? Login now.

This item is non-returnable.

Availability:
Brand Syntiro
Product Type Hangers
Product Subtype Hex Hangers
Series PHH Series
Model PHHTC
Material 304 Stainless Steel
Size 1 3"
Color Gray
Orientation / Mount Threaded
Insert Material Silicone
Weight 0.50000

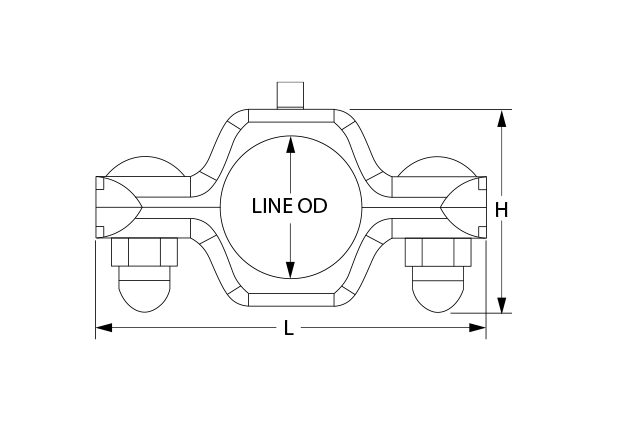

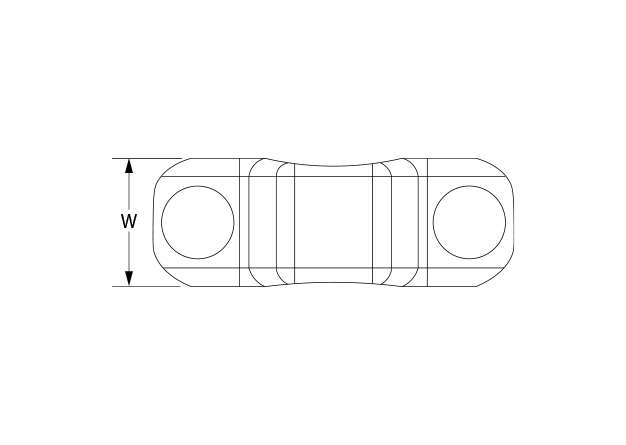

PHHTC Dimensional DiagramPHHTC Dimensional Diagram.2

PHHTC Pipe Dimensional Diagram
Pipe Size Line OD H L W
(in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm)
½ 12.70 0.84 21.34 1.45 36.83 3.00 76.20 1.10 27.94
¾ 19.05 1.05 26.67 1.45 36.83 3.00 76.20 1.10 27.94
1 25.40 1.32 33.53 1.96 49.78 4.00 101.60 1.42 36.07
1¼ 31.75 1.66 42.16 2.50 63.50 4.60 116.84 1.42 36.07
1½ 38.10 1.90 48.26 2.50 63.50 4.60 116.84 1.42 36.07
2 50.80 2.375 60.33 3.00 76.20 5.10 129.54 1.42 36.07
2½ 63.50 2.875 73.03 3.50 88.90 5.60 142.24 1.42 36.07
3 76.20 3.50 88.90 4.13 104.90 6.33 160.78 1.42 36.07
4 101.60 4.50 114.30 5.07 128.78 7.52 191.01 1.42 36.07
6 152.40 6.625 168.28 7.20 182.88 9.25 234.95 1.74 44.20
